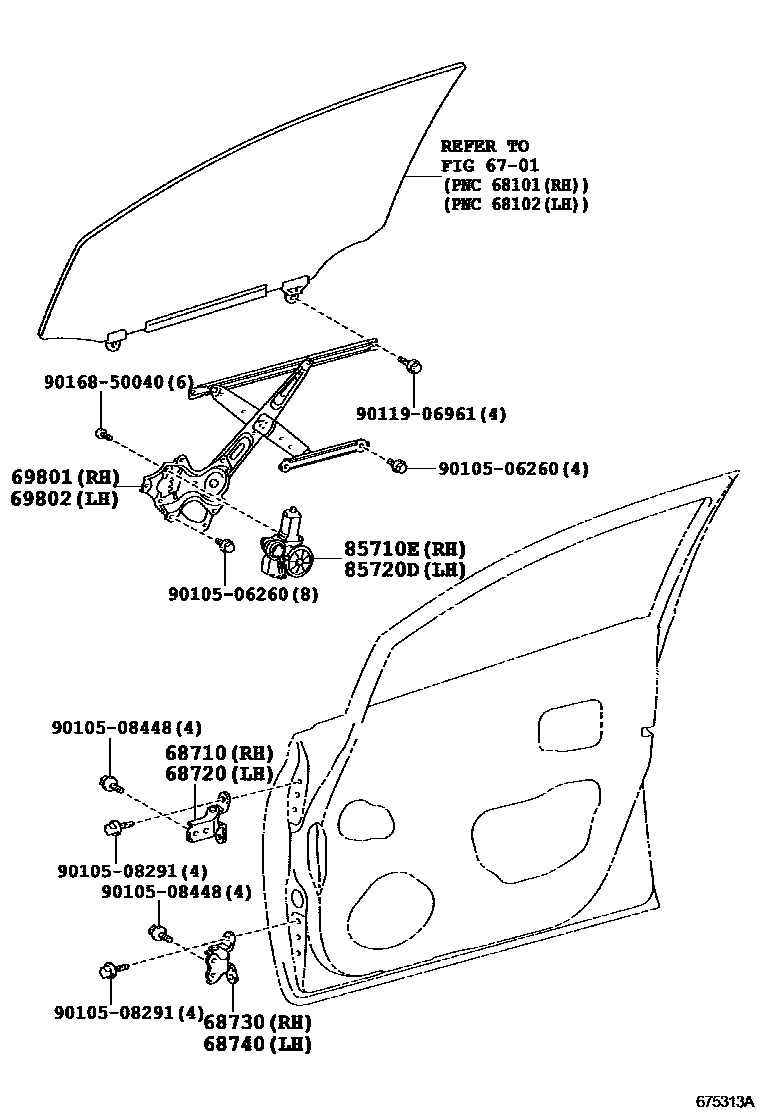

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iANA1#..240F200709

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30260iANA1#,GGA10201102

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30260iANA1#,GGA10201102

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-47110iANA1#,GGA10201303

main85710-72010iANA1#,GGA10..CBU200709-200901

main85710-72011iANA1#,GGA10201102-201302

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-47110iANA1#,GGA10201303

main85720-72010iANA1#,GGA10..CBU200709-200901

main85720-72011iANA1#,GGA10..240,240G,350G,ARIAL200902-201102

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9011906961

main90119-06961

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
