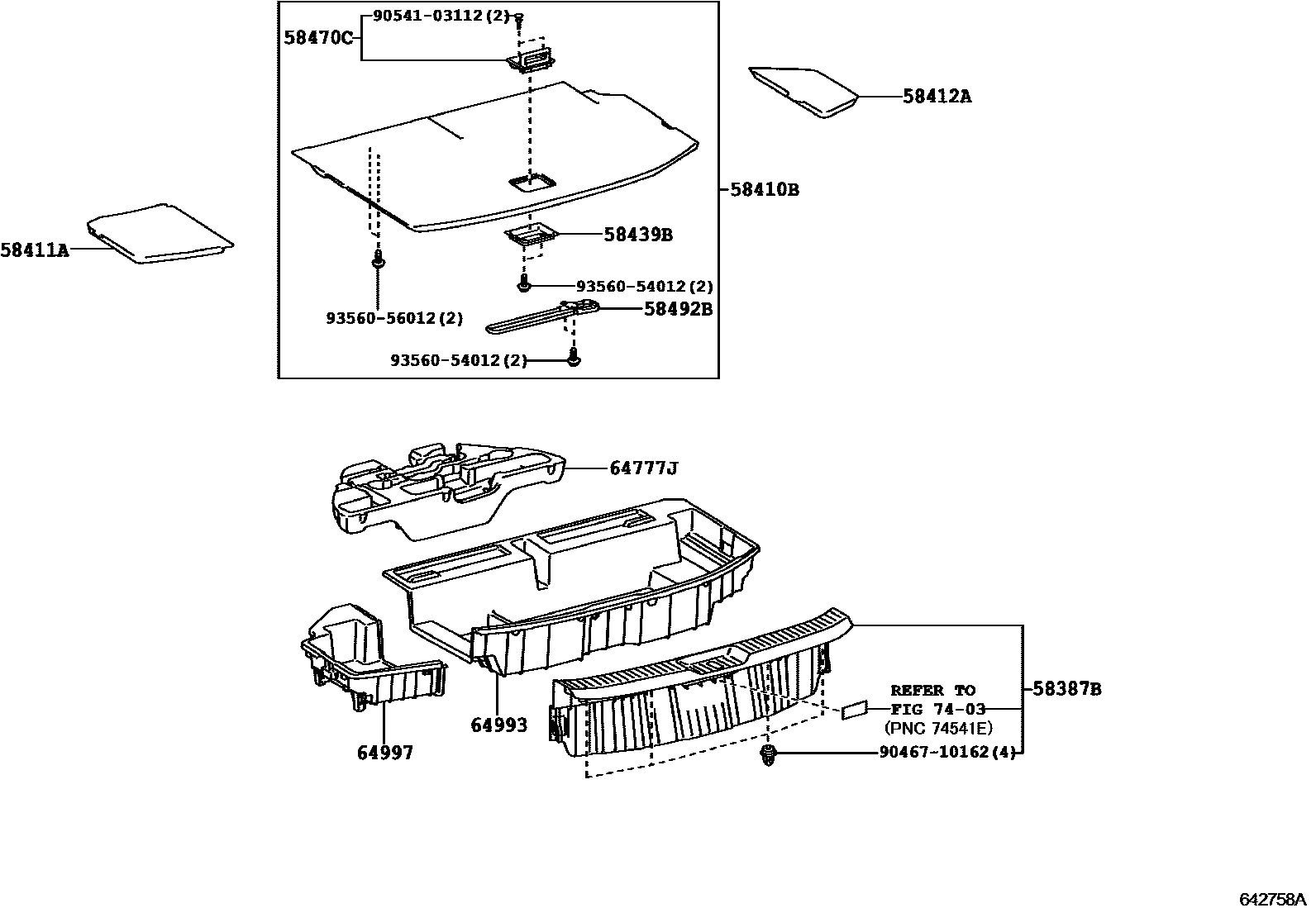

DECK BOARD & DECK TRIM COVER

0001 1���� ����� 0002 1���� ����� 0003 15���� ���� ����� 0004 1���� ������� & ���� ����� 0005 1���� ������� & ������ 0006 15���� ���� ������� & ������

58387BPLATE, REAR FLOOR FINISH

main58387-72010-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240,ARIAL200709-201102

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

58410BBOARD ASSY, DECK

main58410-72010-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240,ARIAL200709-201102

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

main58410-72020-C0iANA1#..240201008-201102

58411ABOARD, DECK, NO.1

main58411-72010-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240,ARIAL200709-201102

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

58412ABOARD, DECK, NO.2

main58412-72010-C0iANA1#..(240F,240G)..CBU; ANA1#..240,ARIAL200709-201102

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

58439BPROTECTOR, DECK BOARD, NO.1

main58477-28020iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58470CHANDLE ASSY, DECK BOARD

main58470-33010-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240,ARIAL200709-201102

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

58492BHOOK, DECK BOARD LOCK

main58492-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

64777JCUSHION, SPARE WHEEL

main64777-72010iANA1#,GGA10..240,240G,350G,ARIAL201102

64993BOX, DECK FLOOR, REAR

main64993-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

64997BOX, DECK FLOOR, LH

main64997-72010-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240,ARIAL200709-201102

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9046710162

main90467-10162

9054103112

main90541-03112

9356054012

main93560-54012

9356056012

main93560-56012

15 parts on this diagram · 6 diagrams in section
