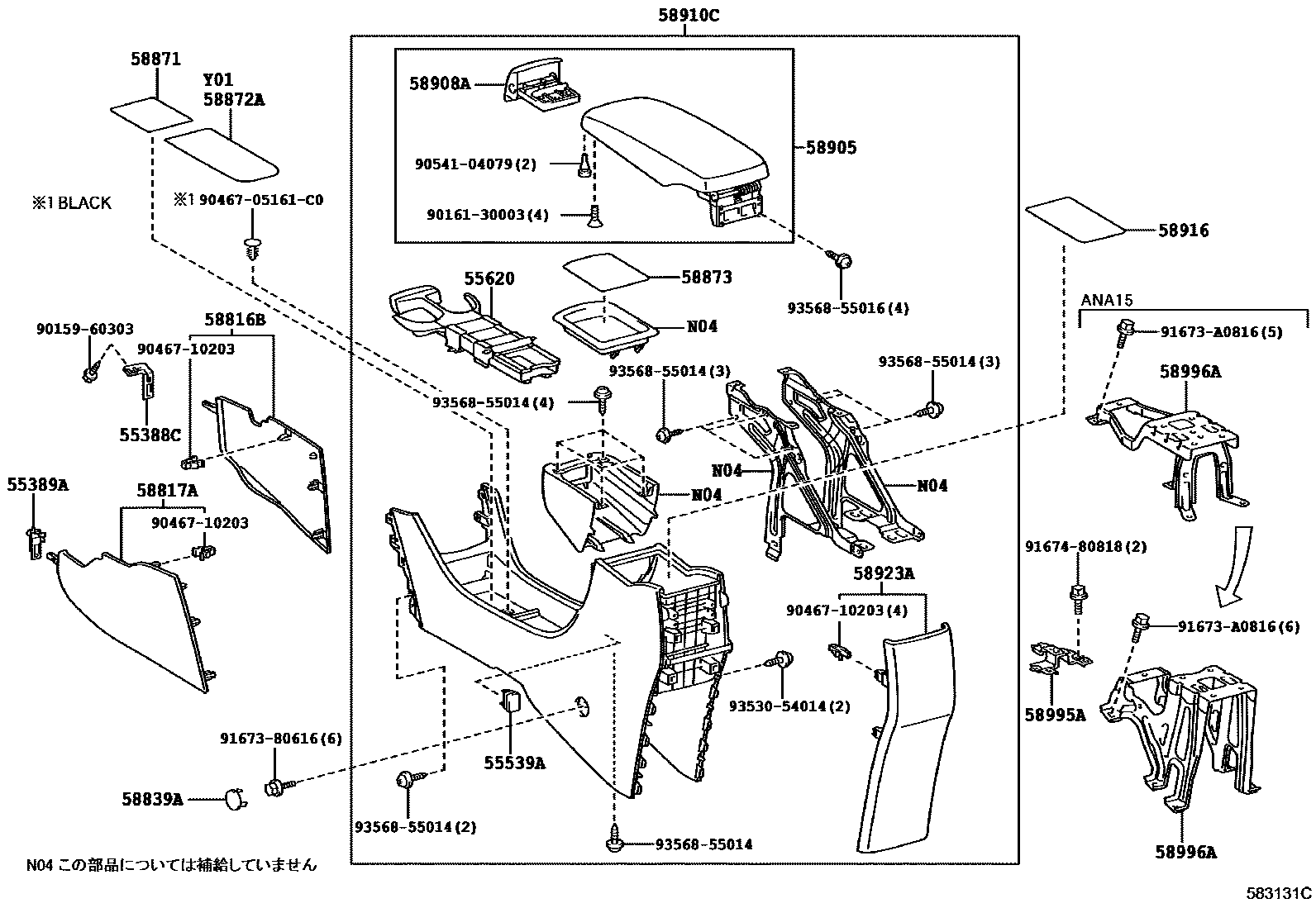

CONSOLE BOX & BRACKET

0001 1 0002 1����� ����������

55388CBRACKET, CONSOLE MOUNTING, RH

main55389-42020iANA1#,GGA10..240,240G,350G,ARIAL201102

55389ABRACKET, CONSOLE MOUNTING, LH

main55388-42020iANA1#,GGA10..240,240G,350G,ARIAL201102

55539ACOVER, SPARE SWITCH HOLE

main55539-52060-C0iANA1#..240; ANA1#..ARIAL200912-201102

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-72010-C0iANA1#..240200709-200912

BLACK,TRIM1#,4#

58816BINSERT, CONSOLE BOX

main58816-72010-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240,ARIAL200709-201102

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-72010-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240,ARIAL200709-201102

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

58839ACOVER, CONSOLE BOX HOLE

main55548-72010-C0×2iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240,ARIAL200709-201102

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

58871CUSHION, CONSOLE BOX

main58871-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58872ACUSHION, CONSOLE BOX, NO.2

main58872-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58873CUSHION, CONSOLE BOX, NO.3

main58873-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-72010-B0iANA1#,GGA10..CBU200709-200902

GRAY,TRIM1#

main58905-72010-B1iANA1#,GGA10..(240,240F,240G,350G)..CBU; ANA1#..ARIAL200902-200912

MD.GRAY,TRIM1#; MD.GRAY,TRIM1#,2#

main58905-72010-E0iANA1#,GGA10..CBU200709-200912

PLUM BROWN,TRIM4#

main58905-72011-B2iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240,ARIAL200912-201102

MD.GRAY/BLACK MICA,TRIM1#; MD.GRAY/BLACK MICA,TRIM15,20

main58905-72011-B3iANA1#..240,ARIAL200912-201102

MD.GRAY/MD.SILVER,TRIM15,20

main58905-72011-E1iANA1#,GGA10..(240,240G,350G)..CBU201102-201310

PLUM/BLACK MICA,TRIM4#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-72020iANA1#,GGA10..CBU200709-200912

main58908-72021-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240; ANA1#..ARIAL200912-201102

BLACK MICA,TRIM1#,4#; BLACK MICA,TRIM15,20; BLACK MICA,TRIM15,20,4#

main58908-72021-B0iANA1#..240; ANA1#..ARIAL200912-201102

58910CBOX ASSY, CONSOLE, REAR

main58910-72010-C0iANA10,GGA10..CBU200709-200902

BLACK,TRIM1#

main58910-72010-C1iANA10,GGA10..CBU200709-200912

BLACK,TRIM4#

main58910-72010-C2iANA10,GGA10..(240,240F,240G,350G)..CBU; ANA10..ARIAL200902-200912

MD.GRAY,TRIM1#; MD.GRAY,TRIM1#,2#

main58910-72011-C3iANA10,GGA10..(240F,240G,350G)..CBU; ANA10..240,ARIAL200912-201102

BLACK/MD.GRAY/BLACK MICA,TRIM1#; BLACK/MD.GRAY/BLACK MICA,TRIM15,20

main58910-72011-C4iANA10..240; ANA10..240,ARIAL; ANA10..ARIAL200912-201102

main58910-72011-C5iANA10,GGA10..(240,240F,240G,350G)..CBU200912-201102

BLACK/PLUM/BLACK MICA,TRIM4#

main58910-72020-C0iANA15..CBU200709-200902

BLACK,TRIM1#

main58910-72020-C1iANA15..CBU200709-200912

BLACK,TRIM4#

main58910-72020-C2iANA15..(240,240F,240G)..CBU; ANA15..ARIAL200902-200912

MD.GRAY,TRIM1#; MD.GRAY,TRIM1#,2#

main58910-72021-C3iANA15..(240F,240G)..CBU; ANA15..240,ARIAL200912-201102

BLACK/MD.GRAY/BLACK MICA,TRIM1#; BLACK/MD.GRAY/BLACK MICA,TRIM15,20

main58910-72021-C4iANA15..240,ARIAL200912-201102

BLACK/MD.GRAY/MD.SILVER,TRIM15,20

main58910-72021-C5iANA15..(240,240G)..CBU201102-201310

BLACK/PLUM/BLACK MICA,TRIM4#

58916MAT, BOX BOTTOM

main58916-72010iANA1#,GGA10..240,240G,350G,ARIAL201102

58923APANEL, CONSOLE REAR END

main58923-72010-C0iANA10..240; ANA10..ARIAL200912-201102

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#

main58923-72020-C0iANA15..240; ANA15..ARIAL200912-201102

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-72010iANA1#,GGA10..240,240G,350G,ARIAL201102

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-72010iANA10,GGA10..240,240G,350G,ARIAL200709-201102

main58996-72020iANA15..240F200709

9015960303

main90159-60303

9016130003

main90161-30003

9046705161C0

main90467-05161C0

9046710203

main90467-10203

9054104079

main90541-04079

9167380616

main91673-80616

91673A0816

main91673-A0816

9167480818

main91674-80818

9353054014

main93530-54014

9356855014

main93568-55014

9356855016

main93568-55016

28 parts on this diagram · 2 diagrams in section
