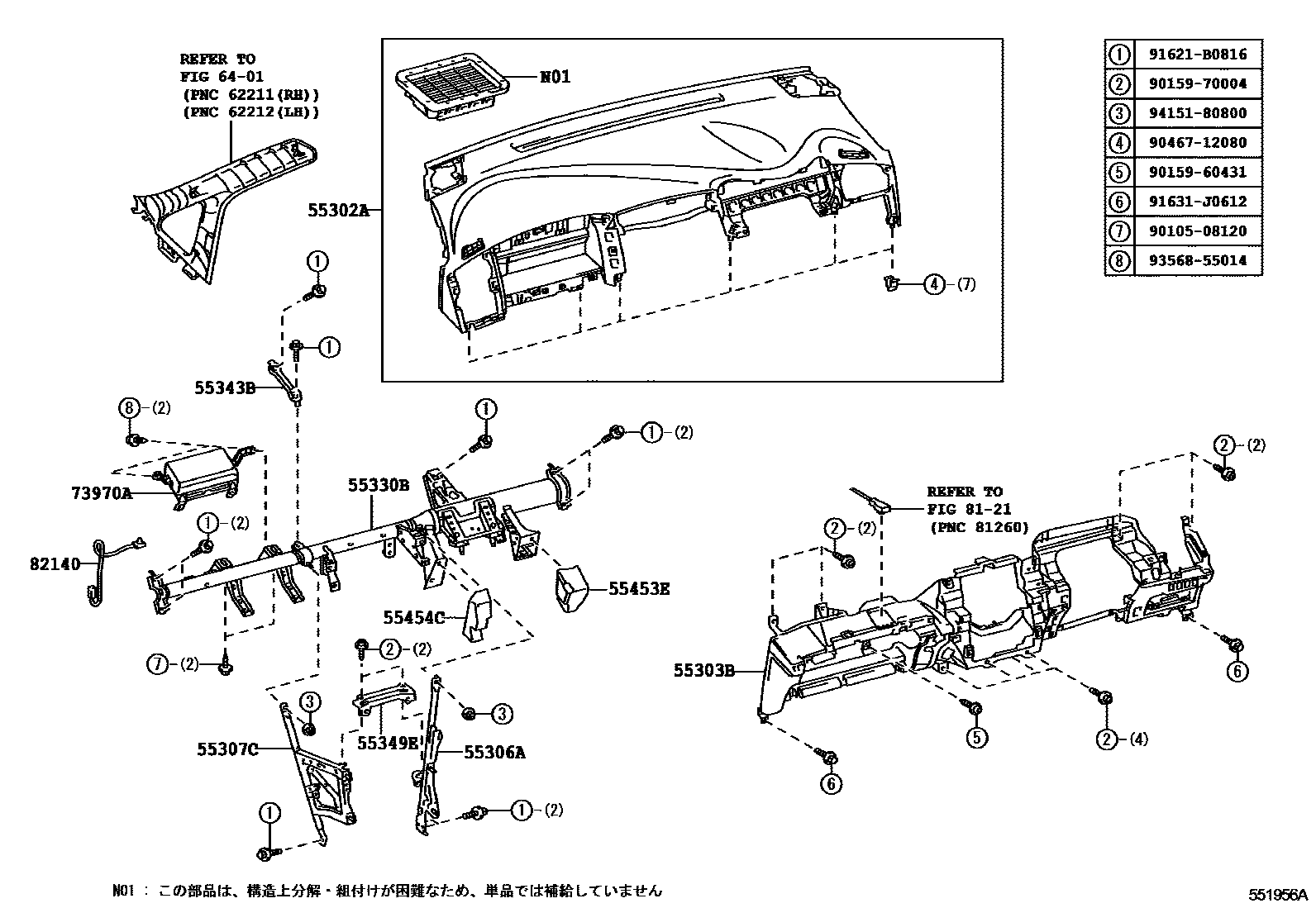

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-72010-C0iANA1#,GGA10..CBU200709-200801

BLACK,TRIM1#,4#

main55302-72011-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240,ARIAL200801-201102

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-72010-C0iANA1#,GGA10..CBU200709-200712

BLACK,TRIM1#,4#

main55303-72011-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240,ARIAL200801-201102

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-72010iANA1#..240F200709

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-12070iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

55349EBRACKET, INSTRUMENT PANEL BRACE MOUNTING, LOWER

main55349-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

55453EPAD, INSTRUMENT, LOWER RH

main55453-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

55454CPAD, INSTRUMENT, LOWER LH

main55454-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-72010iANA1#,GGA10..240,240G,350G,ARIAL201102

8121INTERIOR LAMP

→ Go to FIG 81-21

82140WIRE ASSY, INSTRUMENT PANEL

main82140-72010iANA1#,GGA10..240,240G,350G,ARIAL201102

9010508120

main90105-08120

9015960431

main90159-60431

9015970004

main90159-70004

9046712080

main90467-12080

91621B0816

main91621-B0816

91631J0612

main91631-J0612

9356855014

main93568-55014

9415180800

main94151-80800

21 parts on this diagram · 4 diagrams in section
