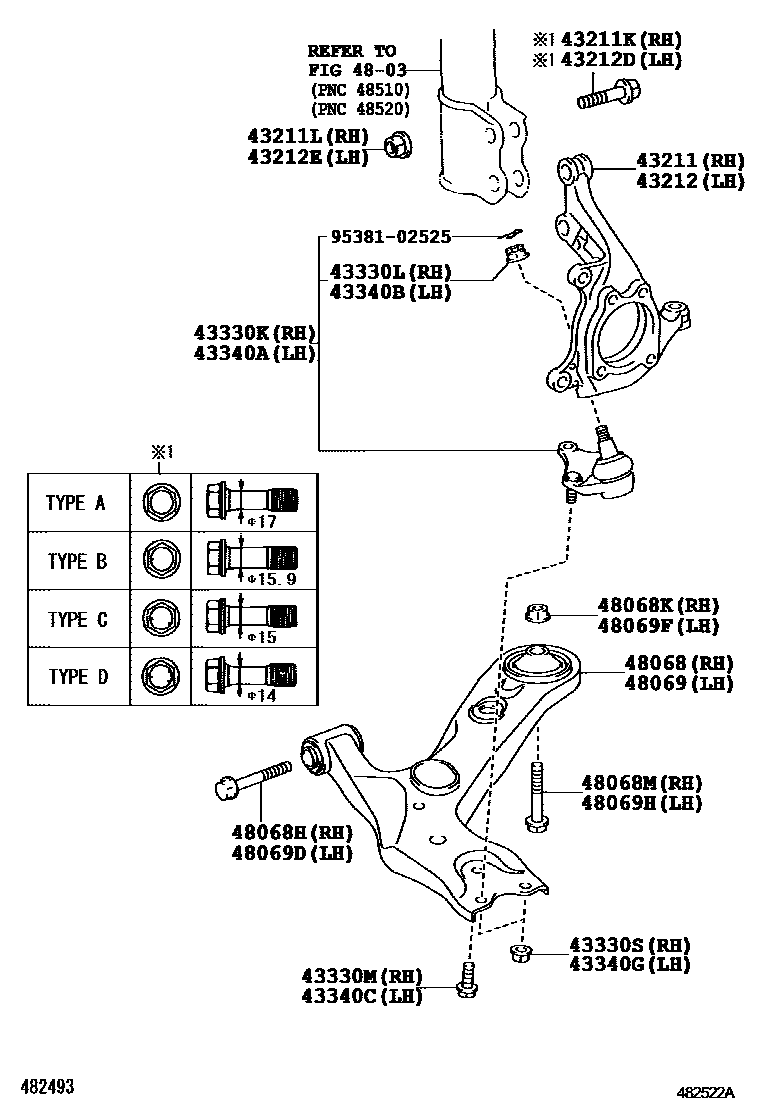

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-42080iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

main43211-42081iANA1#,GGA10201209

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17008×2iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

main90105-17009iANA1#,GGA10..240,240G,350G,ARIAL201102

main90105-17010iANA1#..240F200709

main90105-17011iANA1#..240F200709

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002×2iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

43212KNUCKLE, STEERING, LH

main43212-42080iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

main43212-42081iANA1#,GGA10201209

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17008×2iANA1#,GGA10..240,240G,350G,ARIAL201102

main90105-17009iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

main90105-17010iANA1#,GGA10..240,240G,350G,ARIAL201102

main90105-17011iANA1#..240F200709

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002×2iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19245iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12346iANA1#..240F200709

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019×2iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19245iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12346iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019×2iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-12300iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16090iANA1#,GGA10201301

main91554-L1690iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90178-16006iANA1#,GGA10..240,240G,350G,ARIAL201102

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-16090iANA1#,GGA10201301

main91554-L1690iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-12300iANA1#,GGA10..240,240G,350G,ARIAL201102

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16090iANA1#,GGA10201301

main91554-L1690iANA1#..240F200709

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90178-16006iANA1#..240F200709

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-16090iANA1#,GGA10201301

main91554-L1690iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

9538102525

main95381-02525

24 parts on this diagram · 1 diagram in section
