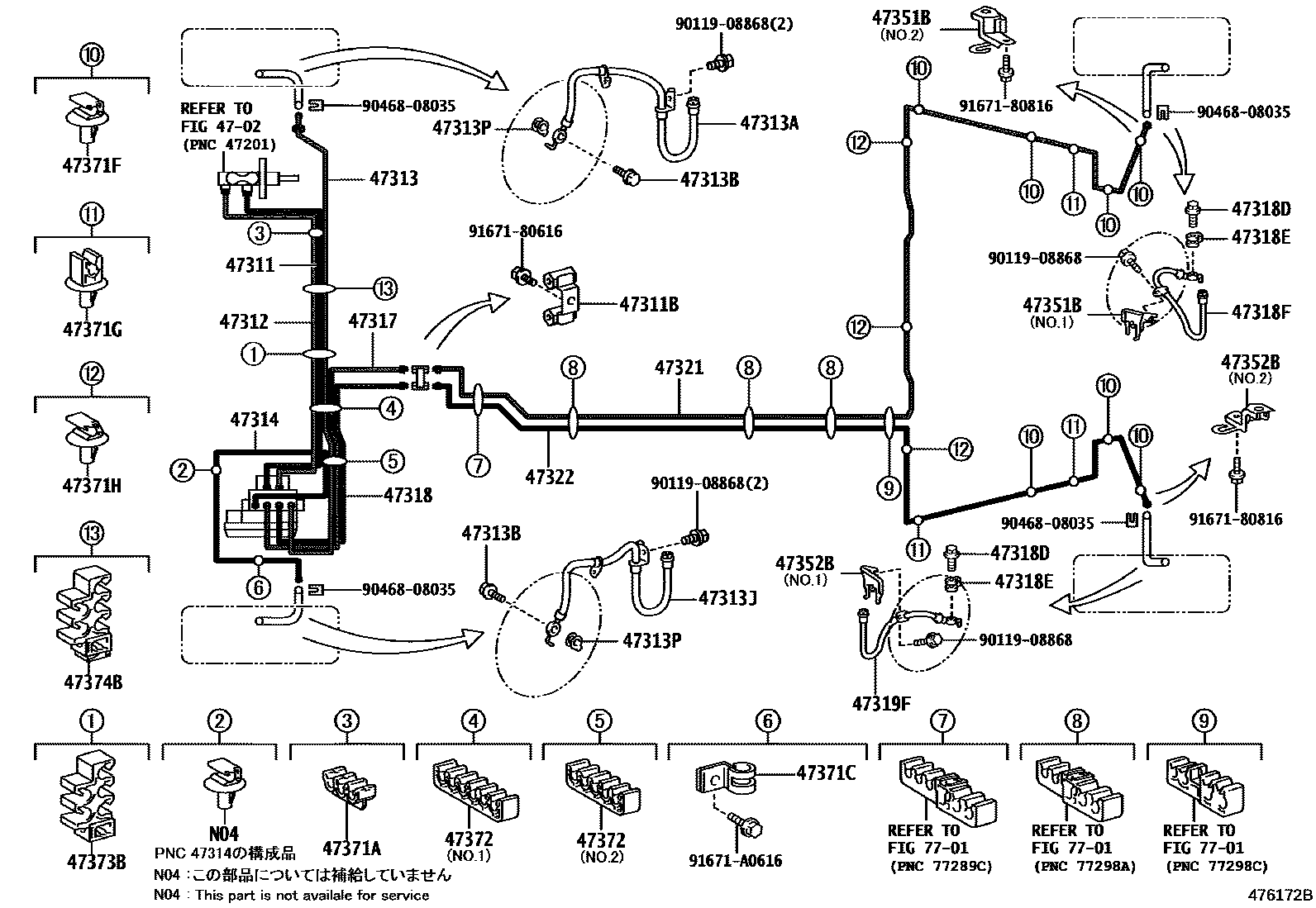

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-12A40iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47312TUBE, FRONT BRAKE, NO.2

main47312-12570iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47313TUBE, FRONT BRAKE, NO.3

main47313-12740iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02E33iANA10..240F200709

main90947-02E35iANA15..240F200709

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iANA1#..240F200709

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02E34iANA10,GGA10..240,240G,350G,ARIAL201102

main90947-02E36iANA15..240F200709

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47314TUBE, FRONT BRAKE, NO.4

main47314-12620iANA1#..240F200709

47317TUBE, FRONT BRAKE, NO.7

main47317-12380iANA1#,GGA10..CBU200709-200811

main47317-12470iANA1#,GGA10..240,240G,350G,ARIAL200811-201102

47318TUBE, FRONT BRAKE, NO.8

main47318-12520iANA1#,GGA10..CBU200709-200811

main47318-12610iANA1#,GGA10..240,240G,350G,ARIAL200811-201102

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02F11iANA1#,GGA10..240,240G,350G,ARIAL201102

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02F12iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47321TUBE, REAR BRAKE, NO.1

main47321-72010iANA10,GGA10..CBU200709-201102

main47321-72020iANA15..CBU201102-201310

47322TUBE, REAR BRAKE, NO.2

main47322-72010iANA10,GGA10..CBU201102-201310

main47322-72020iANA15..CBU201102-201310

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-12210iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

main47351-12220iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-12180iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

main47352-12190iANA1#..240F200709

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00868iANA1#,GGA10..240,240G,350G,ARIAL201102

47371CCLAMP, BRAKE TUBE, NO.7

main90461-10781iANA1#..240F200709

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D17×7iANA1#,GGA10..CBU200709-201102

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D29×3iANA10,GGA10..CBU; ANA15..CBU200709-201102

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01D46×3iANA1#,GGA10..CBU201102-201310

47372CLAMP, BRAKE TUBE, NO.2

main90464-00890iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

main90464-00900iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D45iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D45iANA1#,GGA10..CBU200709-200811

main90949-01D68iANA1#,GGA10..240,240G,350G,ARIAL200811-201102

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

9046808035

main90468-08035

9167180616

main91671-80616

9167180816

main91671-80816

91671A0616

main91671-A0616

34 parts on this diagram · 3 diagrams in section
