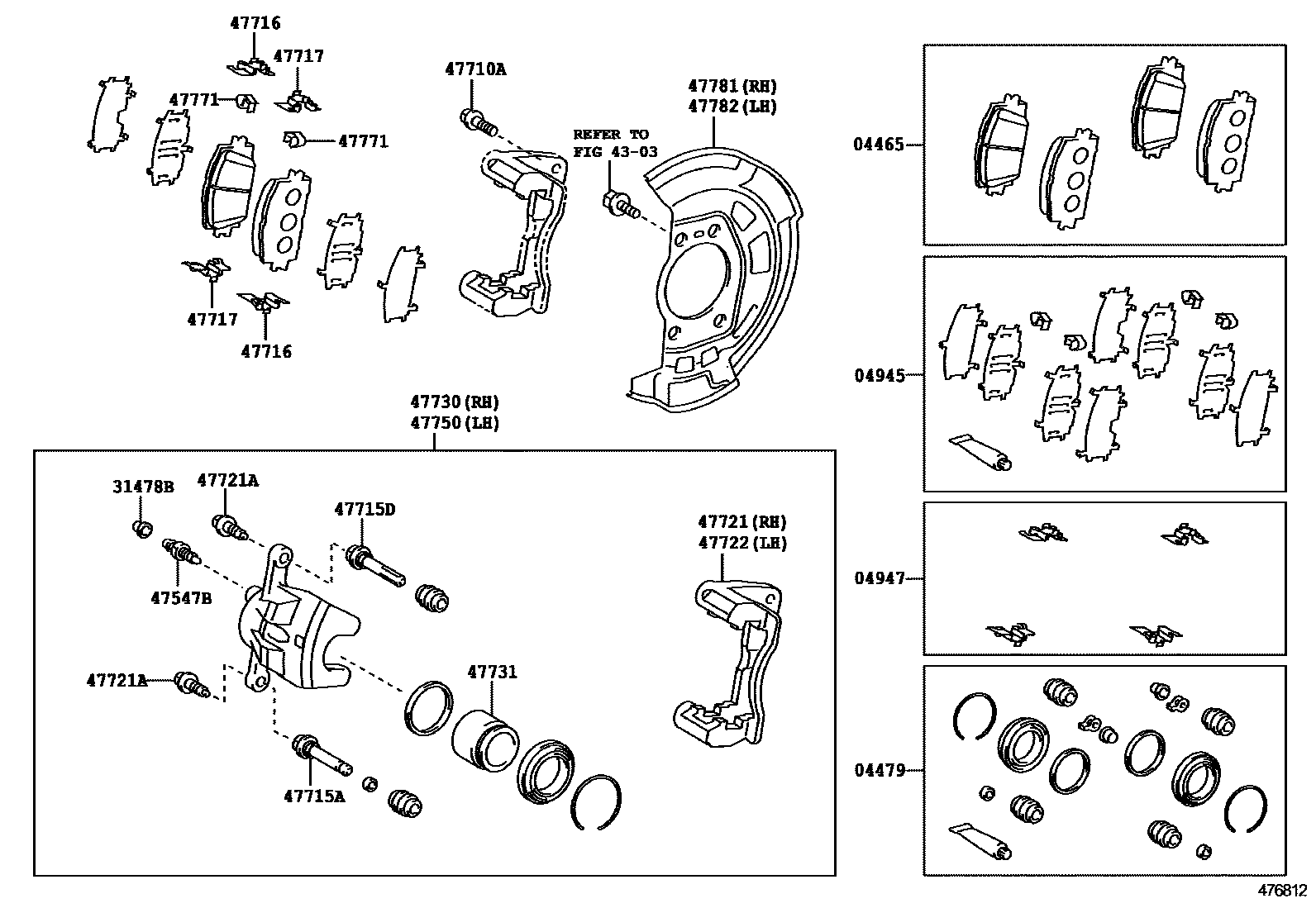

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-42150iANA1#,GGA10..CBU200709-200803

sub04465-42180

main04465-42180iANA1#..240F200803-201102

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100iANA1#,GGA10..240,240G,350G,ARIAL201108

main04478-42020iANA1#..240F200709-201107

sub04478-33100

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-42060iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iANA1#,GGA10201108

main47547-35020iANA1#,GGA10..240,240G,350G,ARIAL200709-201108

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iANA1#,GGA10..CBU200709-201310

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-42080iANA1#,GGA10..240,240G,350G,ARIAL200709-201108

sub47715-12A10

main47715-12A10iANA1#,GGA10201108

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-42080iANA1#,GGA10..240,240G,350G,ARIAL200709-201108

sub47715-52190

main47715-52190iANA1#,GGA10201108

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-52191iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-52191iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-42090iANA1#,GGA10..240,240G,350G,ARIAL200709-201202

sub47721-42091

main47721-42091iANA1#,GGA10201202

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iANA1#,GGA10201108

main90105-08304iANA1#..240F200709-201108

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-42090iANA1#,GGA10..240,240G,350G,ARIAL200709-201202

sub47722-42091

main47722-42091iANA1#,GGA10201202

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-42090iANA1#,GGA10..240,240G,350G,ARIAL200709-201202

sub47730-42091

main47730-42091iANA1#,GGA10201202

47731PISTON, FRONT DISC BRAKE

main47731-12A70iANA1#,GGA10201108

main47731-42080iANA1#..240F200709-201108

sub47731-12A70

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-42090iANA1#,GGA10..240,240G,350G,ARIAL200709-201202

sub47750-42091

main47750-42091iANA1#,GGA10201202

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-52191iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42040iANA1#,GGA10..CBU200709-201310

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42040iANA1#,GGA10..CBU200709-201310

21 parts on this diagram · 1 diagram in section
