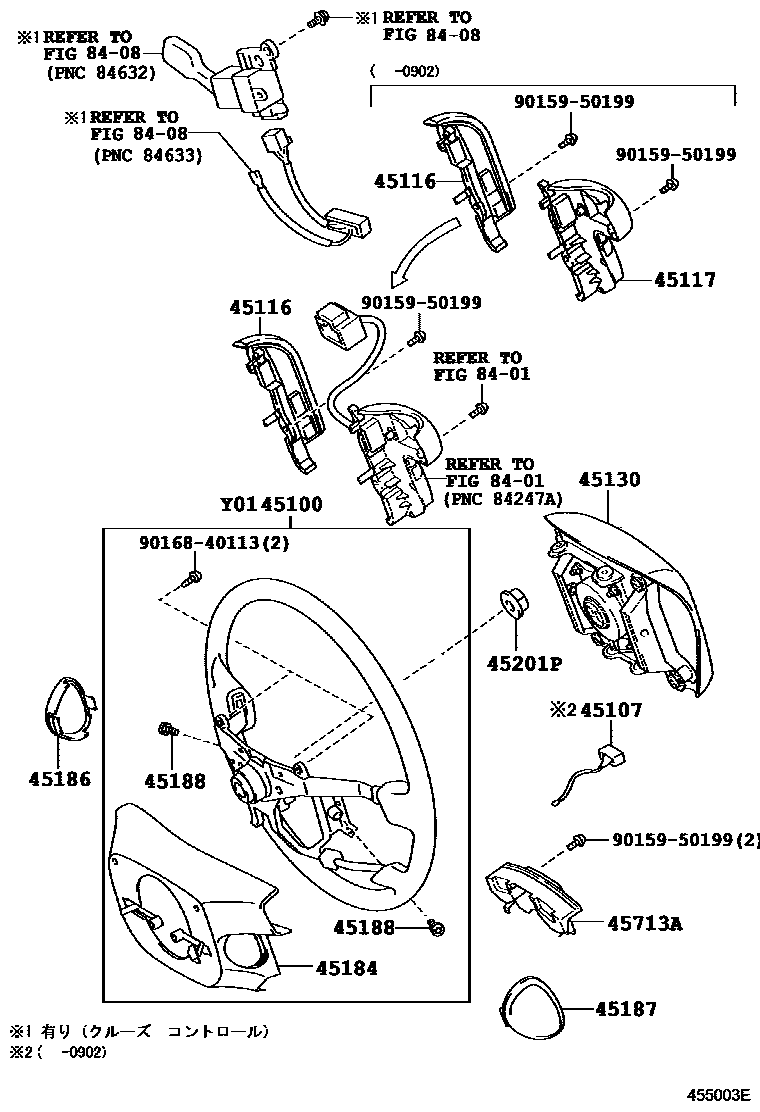

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-12D00-C0iANA1#..ARIAL200902-201102

main45100-12D40-C0supersedes 45100-12D00-C0iANA1#..240200709-201102

main45100-20A30-C0iGGA10..CBU201102-201310

45107WIRE SUB-ASSY, HORN BUTTON

main45107-28030iANA1#,GGA10..CBU200709-200902

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-72010iANA1#..240F200709

main45116-72020iANA1#..240; ANA1#..ARIAL200912-201102

45117ORNAMENT, STEERING WHEEL, NO.2

main45117-72010iANA1#,GGA10..CBU200709-200902

45130BUTTON ASSY, HORN

main45130-72010-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240,ARIAL200709-201102

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-33100-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240,ARIAL200709-201102

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-33070-C0iGGA10..CBU201102-201310

BLACK,TRIM2#,4#

main45186-33080-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240,ARIAL200709-201102

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-33050-C0iANA1#,GGA10..(240,240G,350G)..CBU; ANA1#..ARIAL..CBU201102-201310

BLACK,TRIM2#; BLACK,TRIM2#,4#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

45201PNUT, STEERING WHEEL SET

main90179-12071iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

45713ADAMPER, STEERING SHAKE

main45713-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

9016840113

main90168-40113

15 parts on this diagram · 1 diagram in section
