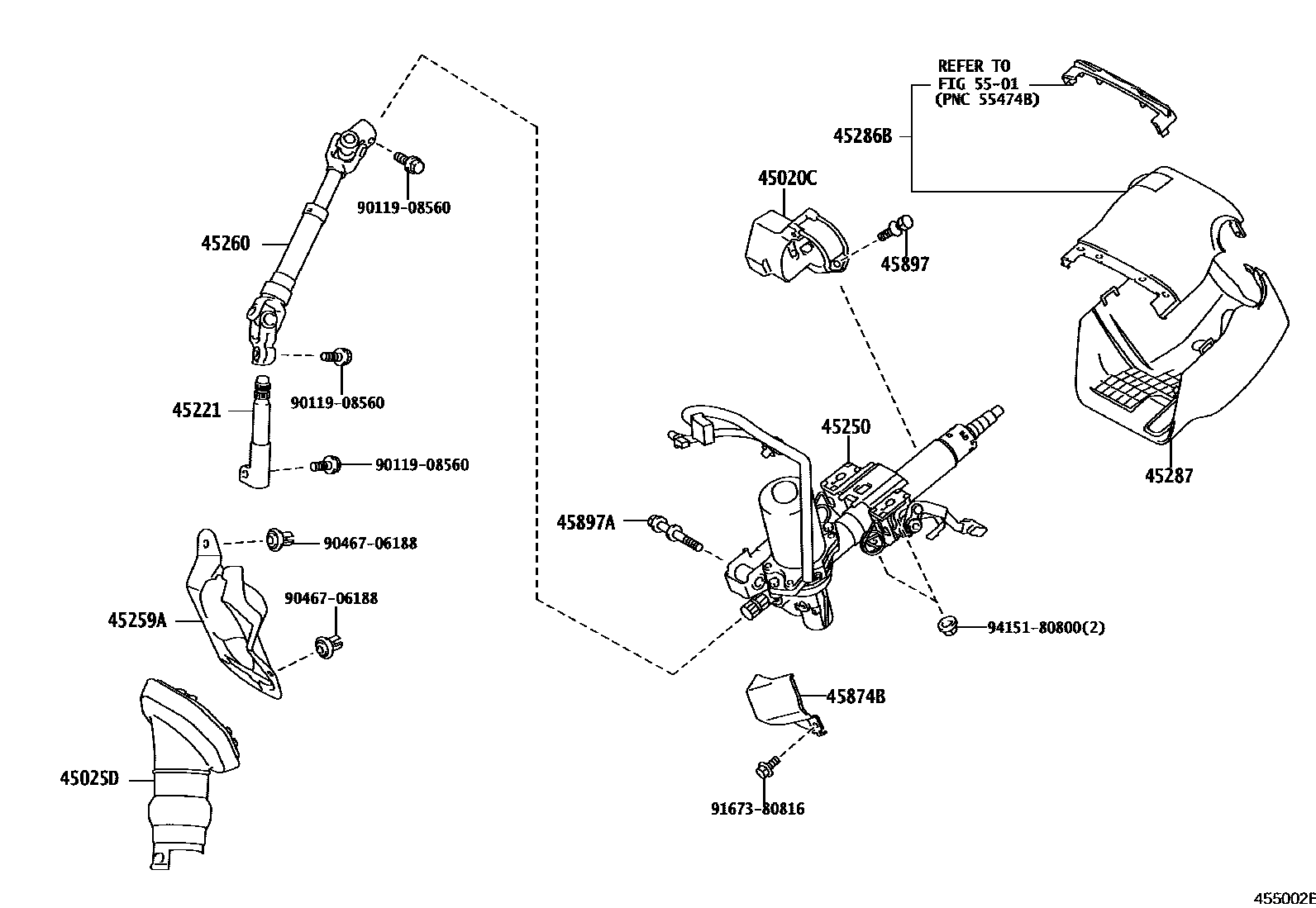

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-42150iANA1#,GGA10..CBU200709-201102

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12290iANA15..240,240G,ARIAL200709-201102

main45025-12330iANA10,GGA10..240,240G,350G,ARIAL201102

45221SHAFT, STEERING INTERMEDIATE

main45221-12340iANA15..240,240G,ARIAL200709-201102

main45221-12360iANA10..240F200709

45250COLUMN ASSY, STEERING

main45250-72020iANA1#,GGA10200709-200903

main45250-72021iANA1#,GGA10..240,240G,350G,ARIAL200904-201102

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12060iANA1#,GGA10200709-201003

main45259-12130iANA1#,GGA10..240,240G,350G,ARIAL201004-201102

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12540iANA15..240F200709

main45260-12610iANA10..240F200709

main45260-72010iANA10,GGA10201205

main45260-72020iANA15201205

45286BCOVER, STEERING COLUMN, UPR

main45023-72010iANA1#,GGA10..CBU200709-200804

main45023-72011iANA1#,GGA10..240,240G,350G,ARIAL200805-201102

45287COVER, STEERING COLUMN, LWR

main45287-28440-C0iANA1#,GGA10..CBU200709-200804

BLACK,TRIM1#,4#

main45287-28441-C0iANA1#,GGA10..(240F,240G,350G)..CBU; ANA1#..240,ARIAL200805-201102

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-12090iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

45897BOLT, STEERING LOCK SET

main45897-12020iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

main90119-10980iANA1#,GGA10201211-201212

main90119-10981iANA1#,GGA10201212

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

9011908560

main90119-08560

9046706188

main90467-06188

9167380816

main91673-80816

9415180800

main94151-80800

16 parts on this diagram · 1 diagram in section
