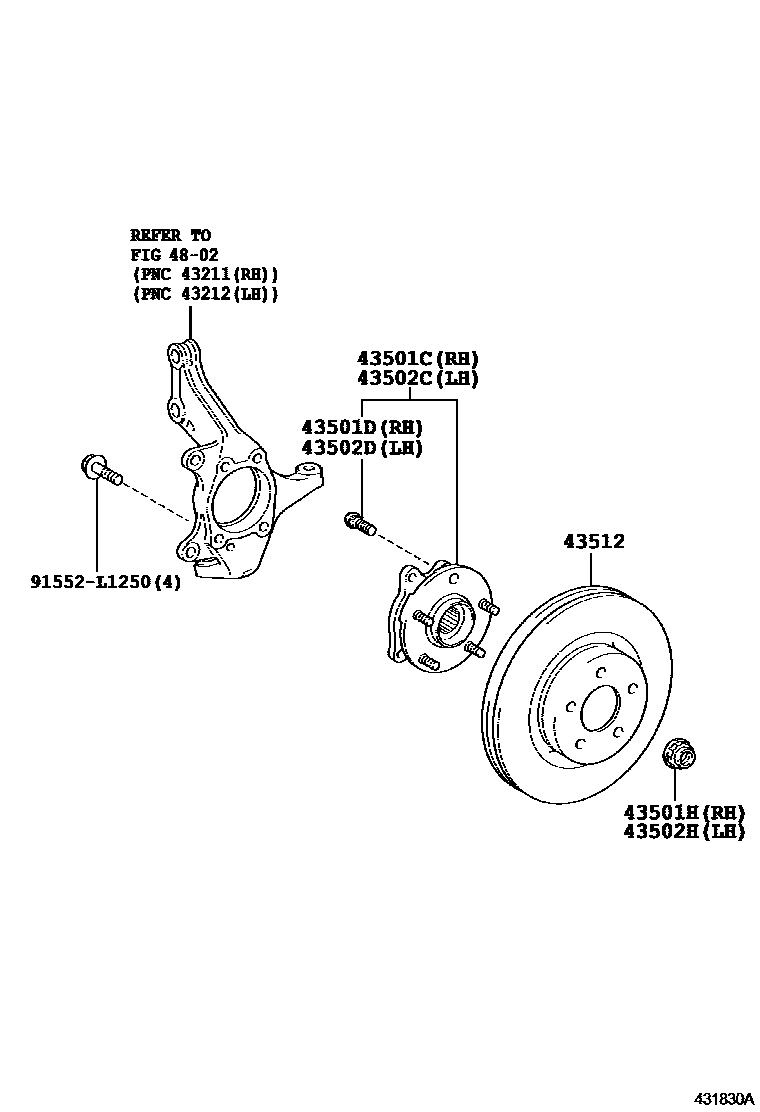

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42010iANA1#..240,240G,ARIAL200709-201102

main43550-42020iGGA10200709-201102

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42010iANA1#..240F200709

main43550-42020iGGA10200709-201102

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

43512DISC, FRONT

main43512-42050×2iANA1#,GGA10..CBU200709-201102

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91552L1250

main91552-L1250

9 parts on this diagram · 1 diagram in section
