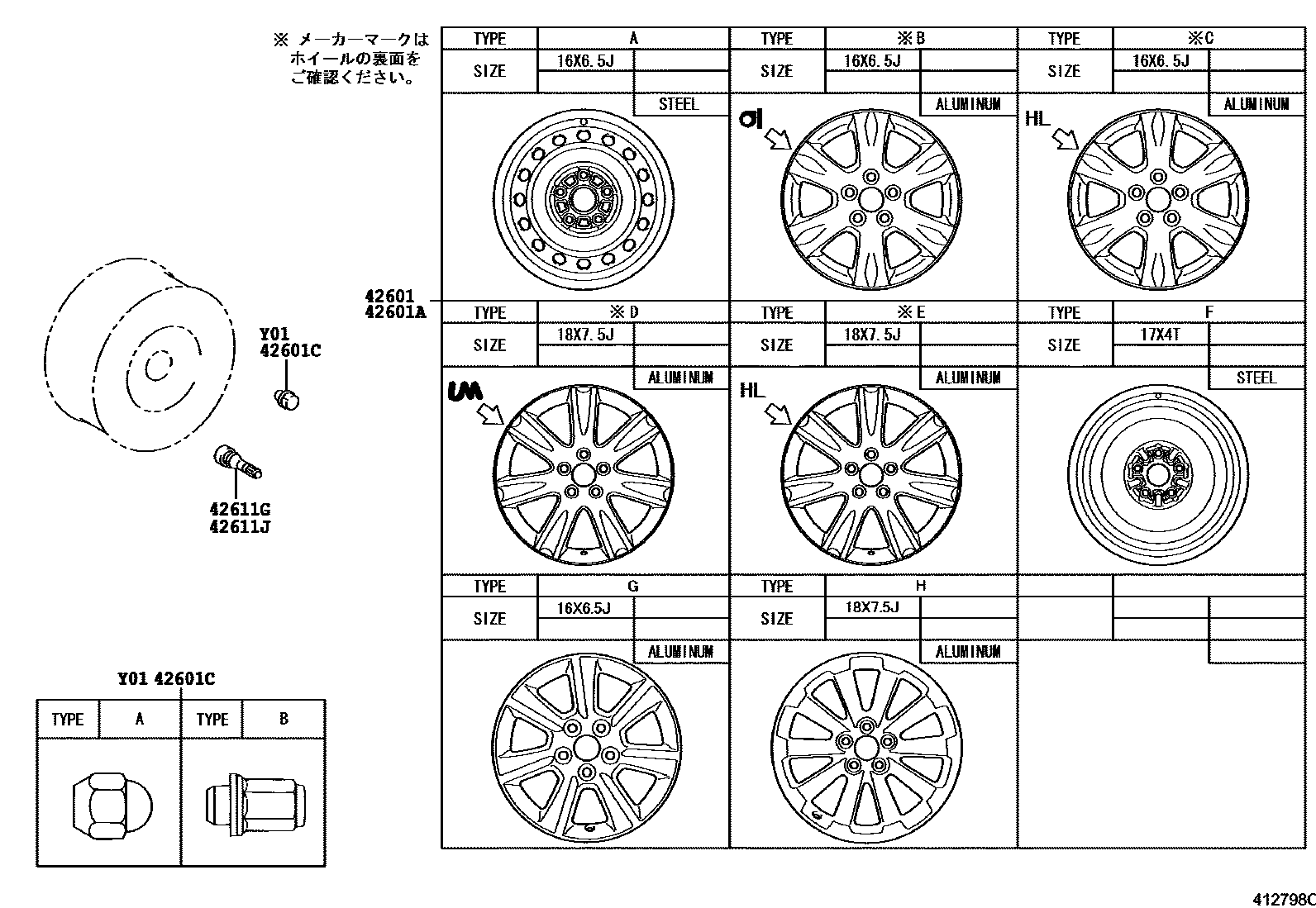

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-72010×4iANA1#..240200709-201102

main42611-72020×4iANA1#..240F200709

main42611-72030×4iANA15..240G,ARIAL200709-201102

main42611-72040×4iANA10,GGA10..240G,350G,ARIAL200709-201102

main42611-72050×4iANA10,GGA10..240G,350G,ARIAL200709-201102

main42611-72060×4iANA10..240G;ANA15..240G,ARIAL; ANA10..ARIAL201102

main42611-72070×4iANA10,GGA10..350G,ARIAL; ANA10..240G201102

42601AWHEEL, DISC (FOR SPARE)

main42611-12B30iANA1#..240F200709

42601CNUT, HUB (FOR AXLE)

main90942-01021×20iANA1#..240200709-201102

main90942-01033×20iANA1#,GGA10..240G,350G,ARIAL201102

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iANA1#..240F200709

5 parts on this diagram · 4 diagrams in section
