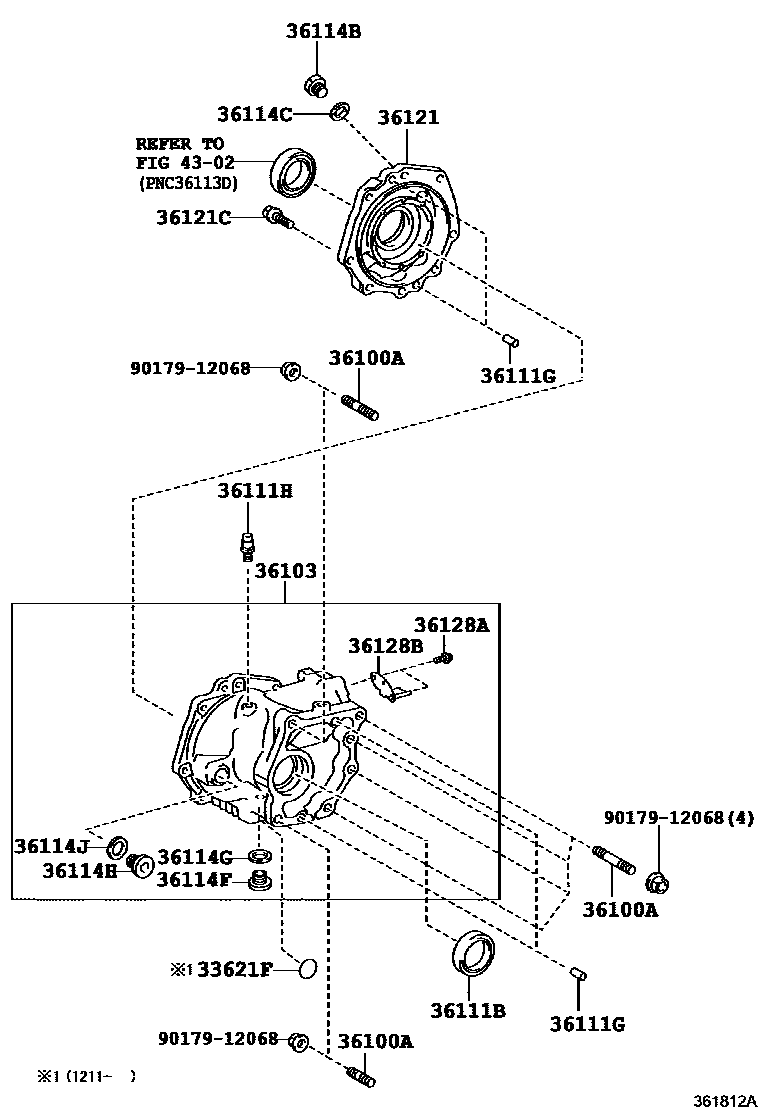

TRANSFER CASE & EXTENSION HOUSING

33621FLABEL, TRANSAXLE OIL INFORMATION

main33621-42040iANA15201211

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12028iANA15..CBU200709-201102

main90116-12034iANA15..CBU201102-201310

main90116-12041×4iANA15..CBU200709-201102

36103CASE SUB-ASSY, TRANSFER

main36103-42050iANA15201211

main36103-52010iANA15..240,240G,ARIAL200709-201102

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-49001iANA15..240F200709

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017×4iANA15..240,240G,ARIAL200709-201102

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iANA15..240,240G,ARIAL200709-201102

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iANA15..CBU200709-201102

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iANA15..CBU200709-201102

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18051iANA15..240,240G,ARIAL200709-201102

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iANA15..240,240G,ARIAL200709-201102

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-18023iANA15..240,240G,ARIAL200709-201102

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main12157-10010iANA15..240,240G,ARIAL200709-201102

36121COVER, TRANSFER CASE, NO.1

main36121-52020iANA15..240,240G,ARIAL200709-201102

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main91552-81030×8iANA15..240,240G,ARIAL200709-201102

36128ABOLT (FOR BREATHER OIL DEFLECTOR)

main91621-60614×2iANA15..240,240G,ARIAL200709-201102

36128BDEFLECTOR, BREATHER OIL

main36128-52010iANA15..240,240G,ARIAL200709-201102

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9017912068

main90179-12068

18 parts on this diagram · 1 diagram in section
