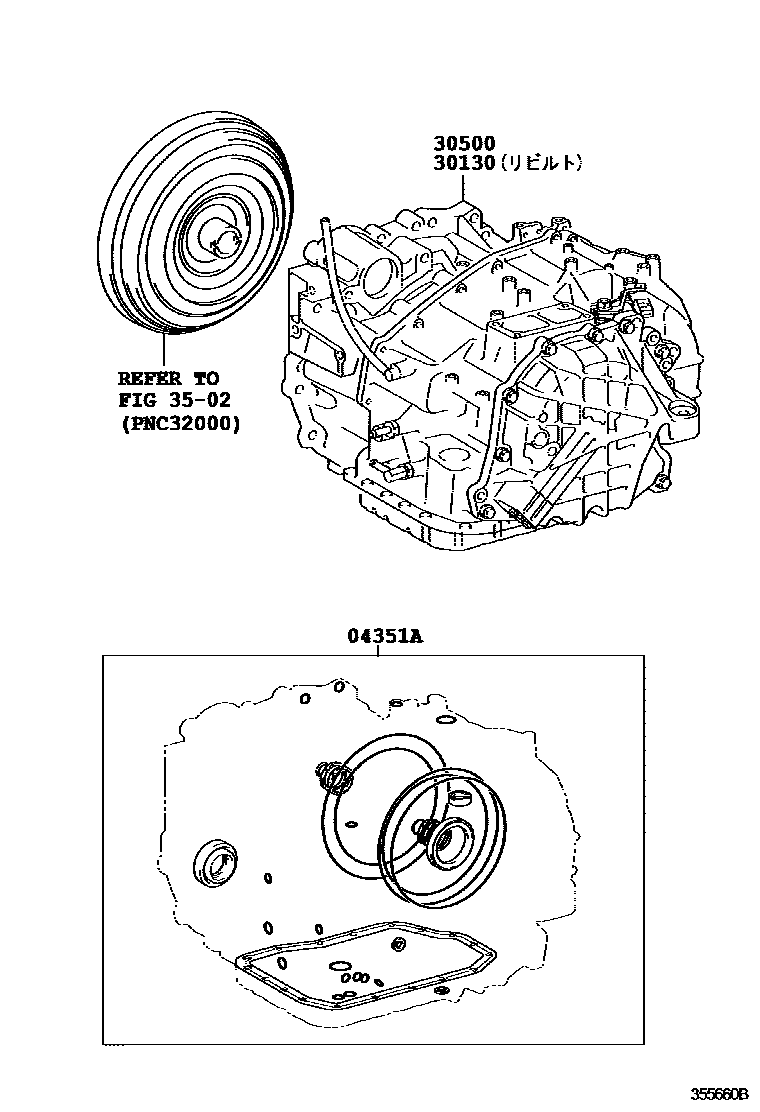

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-33400iGGA10..CBU200709-201102

main04351-33401iGGA10201106-201212

main04351-33402iGGA10201212

30130TRANSAXLE ASSY, REBUILT

main30130-28160iGGA10200709-201102

30500TRANSAXLE ASSY, AUTOMATIC

main30500-28160iGGA10200709-201102

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

4 parts on this diagram · 1 diagram in section
