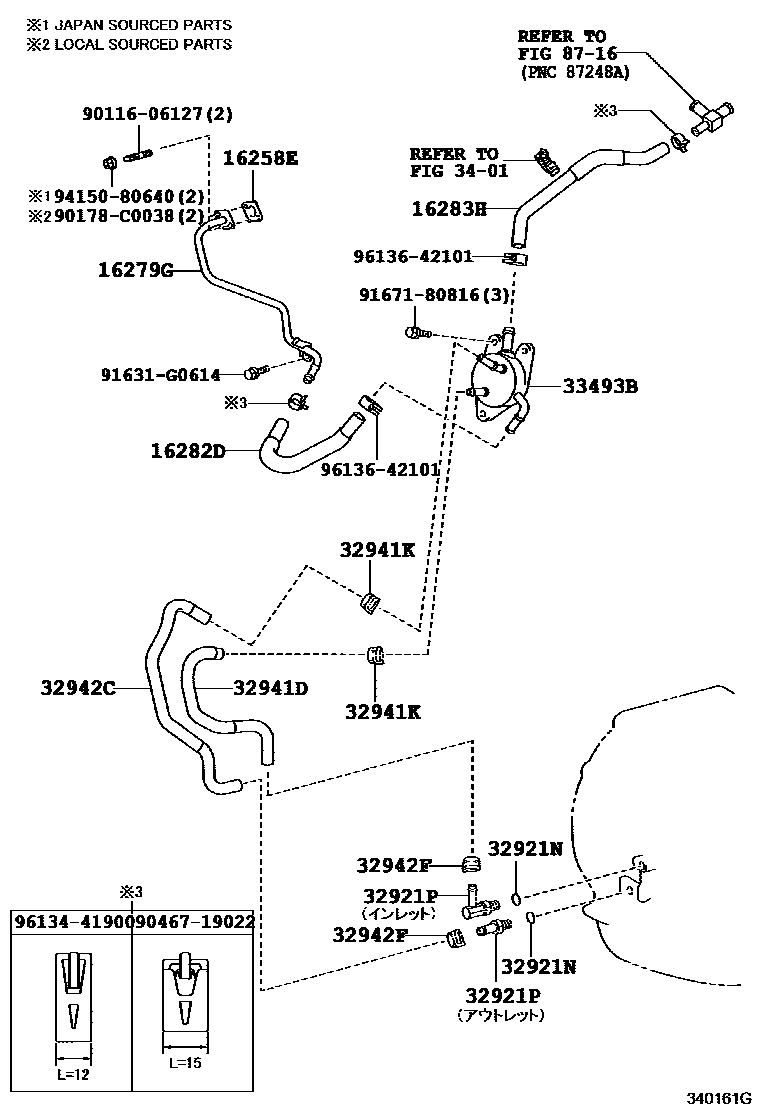

OIL COOLER & TUBE(CVT)

16258EGASKET(FOR WATER BY-PASS PIPE)

main16258-0H050i2AZFE..ANA1#..240,240G,ARIAL201102

main16258-28040supersedes 16258-0H050i2AZFE..ANA1#..240,240G,ARIAL201102

16279GPIPE, WATER BY-PASS, NO.3

main16279-28060i2AZFE..ANA1#200709

16282DHOSE, WATER BY-PASS, NO.5

main16282-28150i2AZFE..ANA1#..CBU200709-201102

16283HHOSE, WATER BY-PASS, NO.6

main16283-28150i2AZFE..ANA1#..CBU200709-201102

32921NRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iANA1#..CBU201102-201310

32921PUNION(FOR OIL COOLER TUBE)

main90404-13004iANA1#..240,240G,ARIAL200709-201102

main90407-13009iANA1#..240,240G,ARIAL200709-201102

32941DHOSE, OIL COOLER INLET

main32941-12390iANA1#..240F200709

32941KCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×2iANA1#..240,240G,ARIAL200709-201102

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-12180iANA1#..240,240G,ARIAL200709-201102

32942FCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iANA1#..240F200808

main90467-16022×2iANA1#..CBU200709-200808

33493BCOOLER, OIL

main33493-12060iANA1#..240,240G,ARIAL200709-201102

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9011606127

main90116-06127

90178C0038

main90178-C0038

9046719022

main90467-19022

91631G0614

main91631-G0614

9167180816

main91671-80816

9415080640

main94150-80640

9613441900

main96134-41900

9613642101

main96136-42101

21 parts on this diagram · 1 diagram in section
