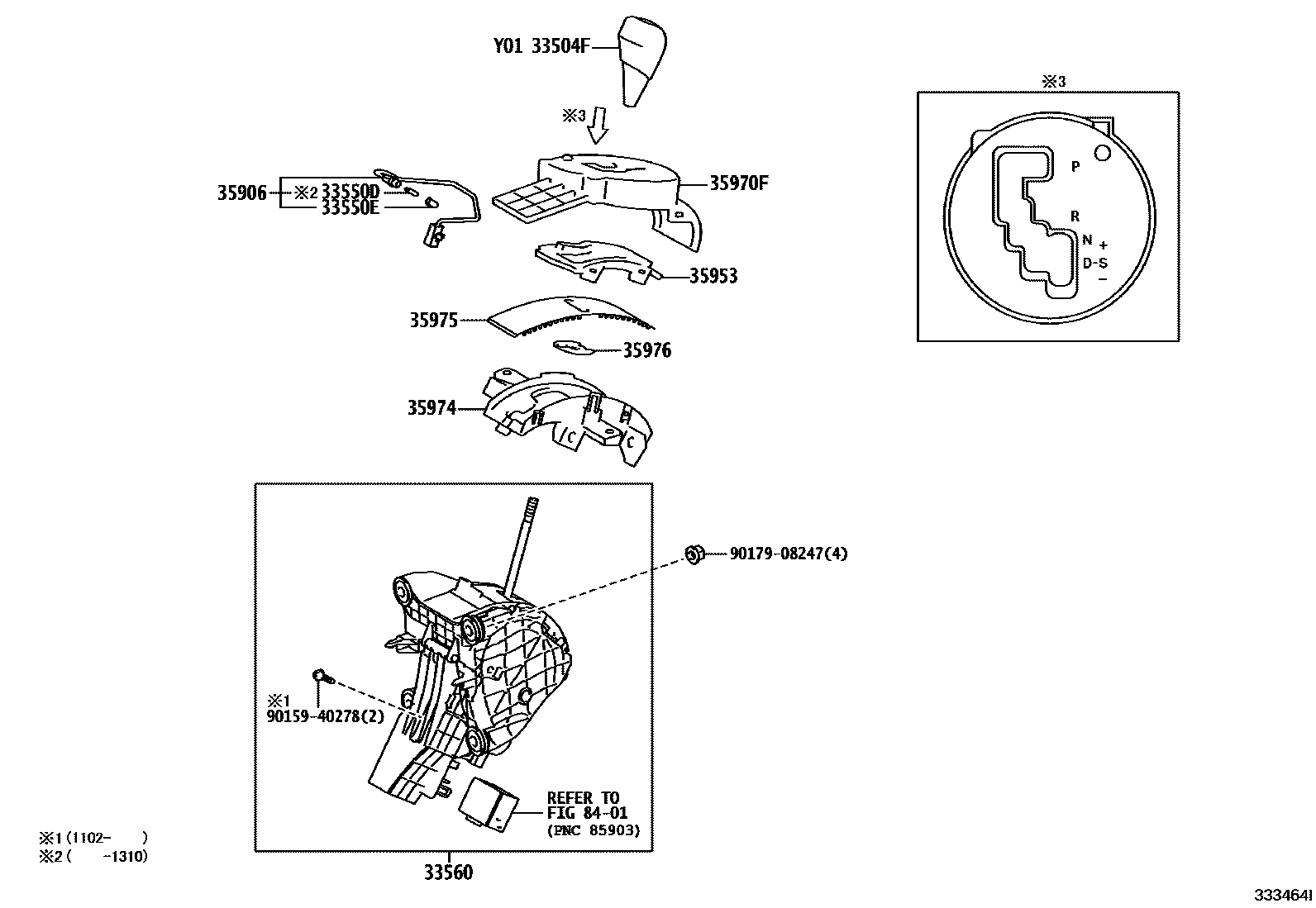

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-28020-C0iANA1#..240200709-200710

BLACK,TRIM1#,4#

main33504-28030-C0iANA1#..(240F,240G)..CBU200709-200710

BLACK,TRIM1#,4#

main33504-28040-C4iANA1#,GGA10..(240,240G,350G)..CBU201102-201310

BLACK,TRIM2#,4#

main33504-58030-C0supersedes 33504-28040-C3iANA1#..240200711-201102

BLACK,TRIM1#,2#,4#

main33504-72010-C0iGGA10..CBU200709-201102

BLACK,TRIM1#,4#

main33504-72020-C0iANA1#..ARIAL200902-201102

BLACK,TRIM1#,2#,4#

main33504-72030-C0iANA1#..240; ANA1#..ARIAL200912-201102

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iANA1#,GGA10..CBU200709-201102

33550ECAP, POSITION INDICATOR LAMP

main35956-58010iANA1#,GGA10..CBU200709-201102

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-72010iANA1#,GGA10..240,240G,350G,ARIAL201102

35953GUIDE, POSITION INDICATOR LIGHT

main35953-72010iANA1#..240F200709

35970FHOUSING ASSY, POSITION INDICATOR

main35970-72010iANA1#..CBU200709-200801

main35970-72011iANA1#..240,240G,ARIAL201102

main35970-72020iGGA10..CBU200709-200803

main35970-72021iGGA10201102

35974HOUSING, POSITION INDICATOR, LOWER

main35974-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015940278

main90159-40278

9017908247

main90179-08247

13 parts on this diagram · 3 diagrams in section
