AIR CLEANER

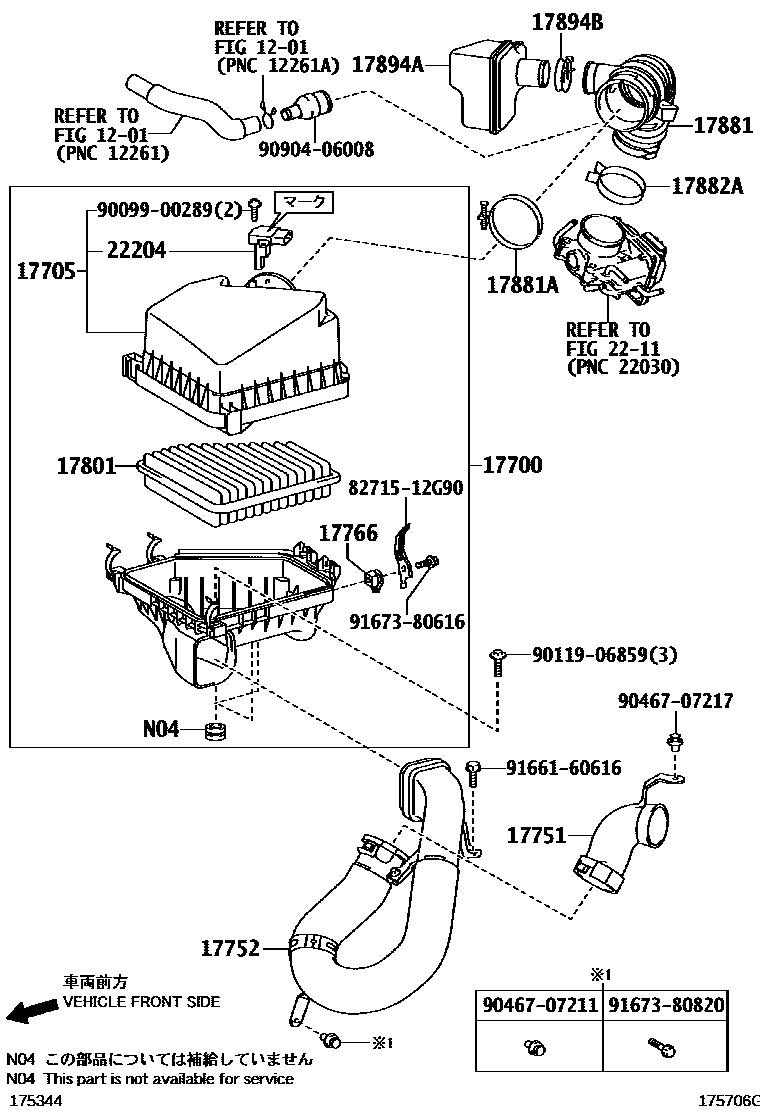

Parts diagram

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-28341i200709-201102

main17700-31710i200709-201102

17705CAP SUB-ASSY, AIR CLEANER

main17705-28291i200709

main17705-28292i201104

main17705-31250i200709-201102

main17705-31251i201104

17751INLET, AIR CLEANER, NO.1

main17751-21170i200709-201102

main17751-37050i200709-201102

17752INLET, AIR CLEANER, NO.2

main17752-28030i200709

main17752-31070i200709-201102

main17752-31140i201102

17766STAY, AIR CLEANER, NO.2

main17706-21010i201102

main17706-22010i200709-200906

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31120i200709-201102

17881HOSE, AIR CLEANER, NO.1

main17880-31160i200709-201102

main17881-28300i201102

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850i201102

main96111-10900×2i200709-201102

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i200709-201102

17894ARESONATOR, INTAKE AIR, NO.2

main17894-28130i200709-201102

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10480i200709-201102

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0H010i201104

main22204-0P010i201104

main22204-0T010i201104

main22204-31020i201102-201104

8271512G90BRACKET,WIRING HARNESS CLAMP

main82715-12G90

9009900289

main90099-00289

9011906859

main90119-06859

9046707211

main90467-07211

9046707217

main90467-07217

9090406008

main90904-06008

9166160616

main91661-60616

9167380616

main91673-80616

9167380820

main91673-80820

23 parts on this diagram · 3 diagrams in section
