V-BELT

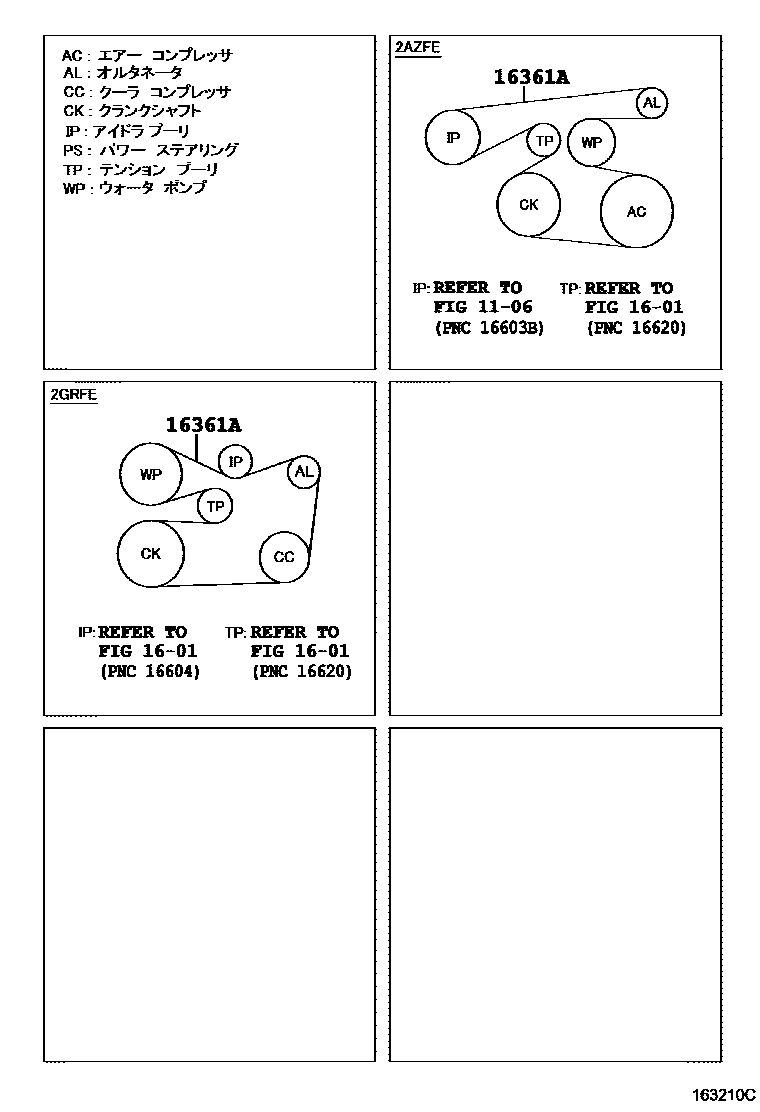

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main99367-C1550i201102

main90916-02652supersedes 90916-02599i201101

main90916-02653supersedes 90916-02599i201102

3 parts on this diagram · 1 diagram in section
