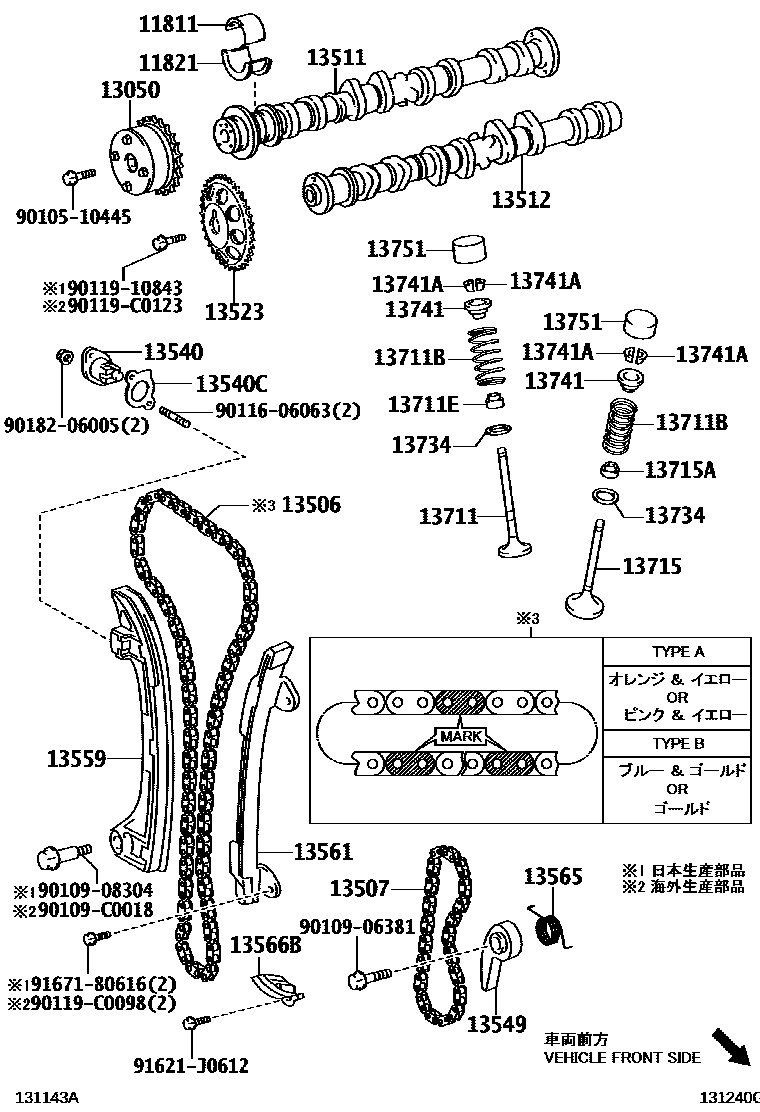

CAMSHAFT & VALVE

0001 1 0002 1

11811BEARING, CAMSHAFT, NO.1

main11811-28010-01supersedes 11811-28010-03i2AZFE..ANA1#..240,240G,ARIAL201102

main11811-28010-02supersedes 11811-28010-03i2AZFE..ANA1#200709

main11811-28010-03i2AZFE..ANA1#..240,240G,ARIAL201102

11821BEARING, CAMSHAFT, NO.2

main11821-28010-01supersedes 11821-28010-03i2AZFE..ANA1#200709

main11821-28010-02supersedes 11821-28010-03i2AZFE..ANA1#201101

main11821-28010-03i2AZFE..ANA1#..240,240G,ARIAL201102

13050GEAR ASSY, CAMSHAFT TIMING

main13050-31170×2i2GRFE..GGA10..CBU200709-201102

main13050-0H030supersedes 13050-28021i2AZFE..ANA1#200709

main13050-28021supersedes 13050-0H030i2AZFE..ANA1#..240,240G,ARIAL201102

13506CHAIN SUB-ASSY

main13506-31020i2GRFE..GGA10..CBU200709-200804

main13506-31031i2GRFE..GGA10200804-201102

main13506-0H031supersedes 13506-28020i2AZFE..ANA1#200709

main13506-28011i2AZFE..ANA1#201202

main13506-28020i2AZFE..ANA1#201101

13507CHAIN SUB-ASSY, NO.2

main13507-31020×2i2GRFE..GGA10200709-201102

main13507-0H020supersedes 13507-28010i2AZFE..ANA1#200709

main13507-28010i2AZFE..ANA1#201101

13511CAMSHAFT

main13501-31100i2GRFE..GGA10..CBU200709-201102

main13501-0H040supersedes 13501-28060i2AZFE..ANA1#200709

main13501-28060i2AZFE..ANA1#201101

13512CAMSHAFT, NO.2

main13502-31080i2GRFE..GGA10..CBU201102-201310

main13502-0H030supersedes 13502-28030i2AZFE..ANA1#200709

main13502-28030i2AZFE..ANA1#201101

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-22020i2AZFE..ANA1#..240,240G,ARIAL201102

13540TENSIONER ASSY, CHAIN, NO.1

main13540-31021i2GRFE..GGA10201102

main13540-0H030i2AZFE..ANA1#..240,240G,ARIAL201102

main13540-28010supersedes 13540-0H030i2AZFE..ANA1#..240,240G,ARIAL201102

13540CGASKET(FOR CHAIN TENSIONER)

main13552-0H020supersedes 13552-28010i2AZFE..ANA1#200709

main13552-28010supersedes 13552-0H020i2AZFE..ANA1#..240,240G,ARIAL201102

13549PLATE, CHAIN TENSIONER

main13549-0H010supersedes 13549-28012i2AZFE..ANA1#200709

main13549-28012supersedes 13549-0H010i2AZFE..ANA1#..240,240G,ARIAL201102

13559SLIPPER, CHAIN TENSIONER

main13559-31020i2GRFE..GGA10201102

main13559-0H030supersedes 13559-28010i2AZFE..ANA1#200709

main13559-28010i2AZFE..ANA1#201101

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-31021i2GRFE..GGA10201102

main13561-0H030i2AZFE..ANA1#..240,240G,ARIAL201102

main13561-28010i2AZFE..ANA1#201101

13565SPRING, CHAIN DAMPER

main13565-0H010supersedes 13565-28012i2AZFE..ANA1#200709

main13565-28012i2AZFE..ANA1#201101

13566BGUIDE, TIMING CHAIN

main13566-28010i2AZFE..ANA1#200709

13711VALVE, INTAKE

main13711-31100×12i2GRFE..GGA10200709-201102

main13711-31101×12i2GRFE..GGA10201302

main13711-0H030×8i2AZFE..ANA1#..240,240G,ARIAL201102

main13711-28010×8i2AZFE..ANA1#201101

13711BSPRING, COMPRESSION(FOR INNER)

main90501-36007×24i2GRFE..GGA10..CBU201102-201310

main90501-28038×16supersedes 90501-C0010i2AZFE..ANA1#200709

main90501-C0010×16i2AZFE..ANA1#; 2AZFE..ANA1#..240,240F,240G200804

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02101×12supersedes 90913-T2001i2GRFE..GGA10200709-201102

main90913-T2001×8i2AZFE..ANA1#..240,240G,ARIAL201102

13715VALVE, EXHAUST

main13715-31120×12i2GRFE..GGA10200709-200906

main13715-31150×12i2GRFE..GGA10200906-201102

main13715-0H040×8supersedes 13715-28040i2AZFE..ANA1#200709

main13715-28040×8supersedes 13715-0H040i2AZFE..ANA1#..240,240G,ARIAL201102

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02112×12supersedes 90913-T2003i2GRFE..GGA10200709-201102

main90913-T2003×8i2AZFE..ANA1#..240,240G,ARIAL201102

13734SEAT, VALVE SPRING

main13734-62020×24i2GRFE..GGA10201102

main13734-74010×16i2AZFE..ANA1#..240,240G,ARIAL201102

13741RETAINER, VALVE SPRING

main13741-31020×24i2GRFE..GGA10..CBU201102-201310

main13741-22021×16i2AZFE..ANA1#..240,240G,ARIAL201102

13741ALOCK, VALVE SPRING RETAINER

main90913-03028×48i2GRFE..GGA10200709-201102

13751LIFTER, VALVE

main13751-46030×16supersedes 13751-46370i2AZFE..ANA1#200709

main13751-46040×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46050×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46060×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46070×16supersedes 13751-46370i2AZFE..ANA1#201101

main13751-46080×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46090×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46100×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46110×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46120×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46130×16supersedes 13751-46370i2AZFE..ANA1#201101

main13751-46140×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46150×16supersedes 13751-46370i2AZFE..ANA1#201101

main13751-46160×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46170×16supersedes 13751-46370i2AZFE..ANA1#201101

main13751-46180×16supersedes 13751-46370i2AZFE..ANA1#201101

main13751-46190×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46200×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46210×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46220×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46230×16supersedes 13751-46370i2AZFE..ANA1#201101

main13751-46240×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46250×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46260×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46270×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46280×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46290×16supersedes 13751-46370i2AZFE..ANA1#201101

main13751-46300×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46310×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46320×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46330×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46340×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46350×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46360×16supersedes 13751-46370i2AZFE..ANA1#..240,240G,ARIAL201102

main13751-46370×16i2AZFE..ANA1#201101

9010510445

main90105-10445

9010906381

main90109-06381

9010908304

main90109-08304

90109C0018

main90109-C0018

9011606063

main90116-06063

9011910843

main90119-10843

90119C0098

main90119-C0098

90119C0123

main90119-C0123

9018206005

main90182-06005

91621J0612

main91621-J0612

9167180616

main91671-80616

35 parts on this diagram · 2 diagrams in section
