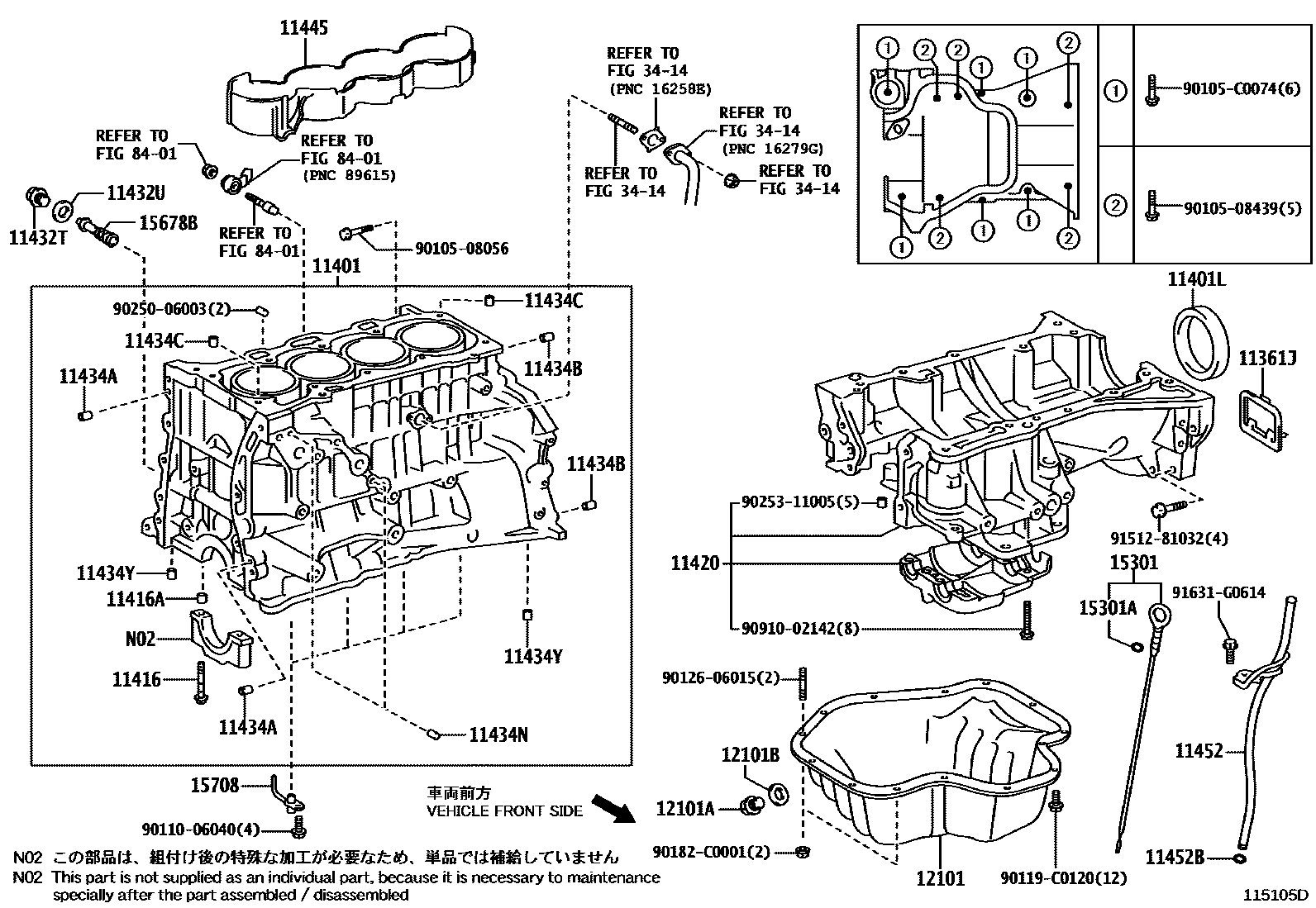

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-28010i200709-201102

main11361-31060i200709-201102

11401BLOCK SUB-ASSY, CYLINDER

main11401-80718i200709-200804

main11401-80774i201102-201210

main11401-80800i201210

main11410-09221i200709-200801

main11410-29345supersedes 11410-09221i201101-201102

main11410-29346supersedes 11410-09221i201212-201310

11401LSEAL, ENGINE REAR OIL

main90311-89003supersedes 90311-C0001i201101

main90311-89007supersedes 90311-C0024i201204-201305

main90311-89010supersedes 90311-C0024i201305

main90311-C0001i200709

main90311-C0024i201204

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154×8i201102-201310

main90910-02124×10i201102

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017×10i201101-201102

11420CRANKCASE ASSY, STIFFENING

main11420-0H050supersedes 11420-28021i200709-201010

main11420-0H051i201102

main11420-28021i201101

11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)

main90341-14013i200709

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-14011i200709-200804

main90430-C0004i201102

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i200709-201102

main90250-08120×2supersedes 90250-C0011i201102-201309

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i200709

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×4i201102

main90253-14003×2i201102

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003×2i200709-201102

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-04097×2i200709-201102

main90250-08074×2i201101-201102

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-0H020i200709

main11445-28020supersedes 11445-0H020i201101

11452GUIDE, OIL LEVEL GAGE

main11452-31060i200709-201102

main11452-28040supersedes 11452-28060i201102

main11452-28060i200804

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i200709-201102

main90301-C0007supersedes 96721-19010i201307-201310

main96721-19010i201102-201307

12101PAN SUB-ASSY, OIL

main12101-31121i201102

main12101-0H060i201102

main12101-28060supersedes 12101-0H060i201102

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i201102

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031supersedes 90430-C0005i200709-201102

main90430-C0005i201102

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31100i200709-200901

main15301-31110i201102

main15301-0H050supersedes 15301-28030i200709

main15301-0H051i201301

main15301-28030supersedes 15301-0H051i201102-201301

main15301-28031supersedes 15301-0H051i201301

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i200709

15678BFILTER, OIL CONTROL VALVE

main15678-28010i200709

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-31030×3i201102

main15708-28010×4i200709-200810

main15708-28011×4i201102

3414OIL COOLER & TUBE(CVT)

→ Go to FIG 34-14

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508056

main90105-08056

9010508439

main90105-08439

90105C0074

main90105-C0074

9011006040

main90110-06040

90119C0120

main90119-C0120

9012606015

main90126-06015

90182C0001

main90182-C0001

9025006003

main90250-06003

9025311005

main90253-11005

9091002142

main90910-02142

9151281032

main91512-81032

91631G0614

main91631-G0614
