ENGINE OVERHAUL GASKET KIT

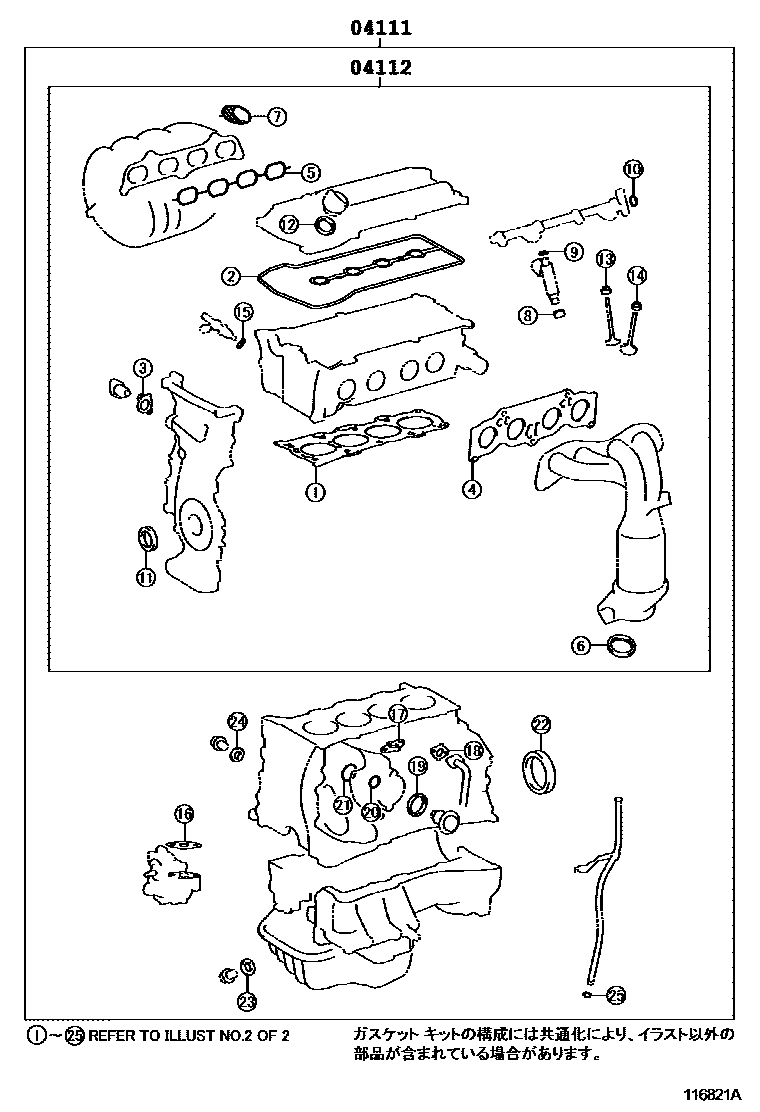

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-31440i200709-200805
main04111-31441i200805-200811
main04111-31442i201102-201108
main04111-31443i201108-201112
main04111-31444i201112
main04111-28981supersedes 04111-28923i201102-201204
main04111-28982supersedes 04111-28923i201204-201208
main04111-28983supersedes 04111-28923i201208
04112GASKET KIT, ENGINE VALVE GRIND
main04112-31270i200709-200805
main04112-31271i200805-200811
main04112-31272i201102-201108
main04112-31273i201108-201112
main04112-31274i201112
main04112-28593supersedes 04112-28763i201102-201204
main04112-28594supersedes 04112-28763i201204-201208
main04112-28595supersedes 04112-28763i201208

2 parts on this diagram · 8 diagrams in section
