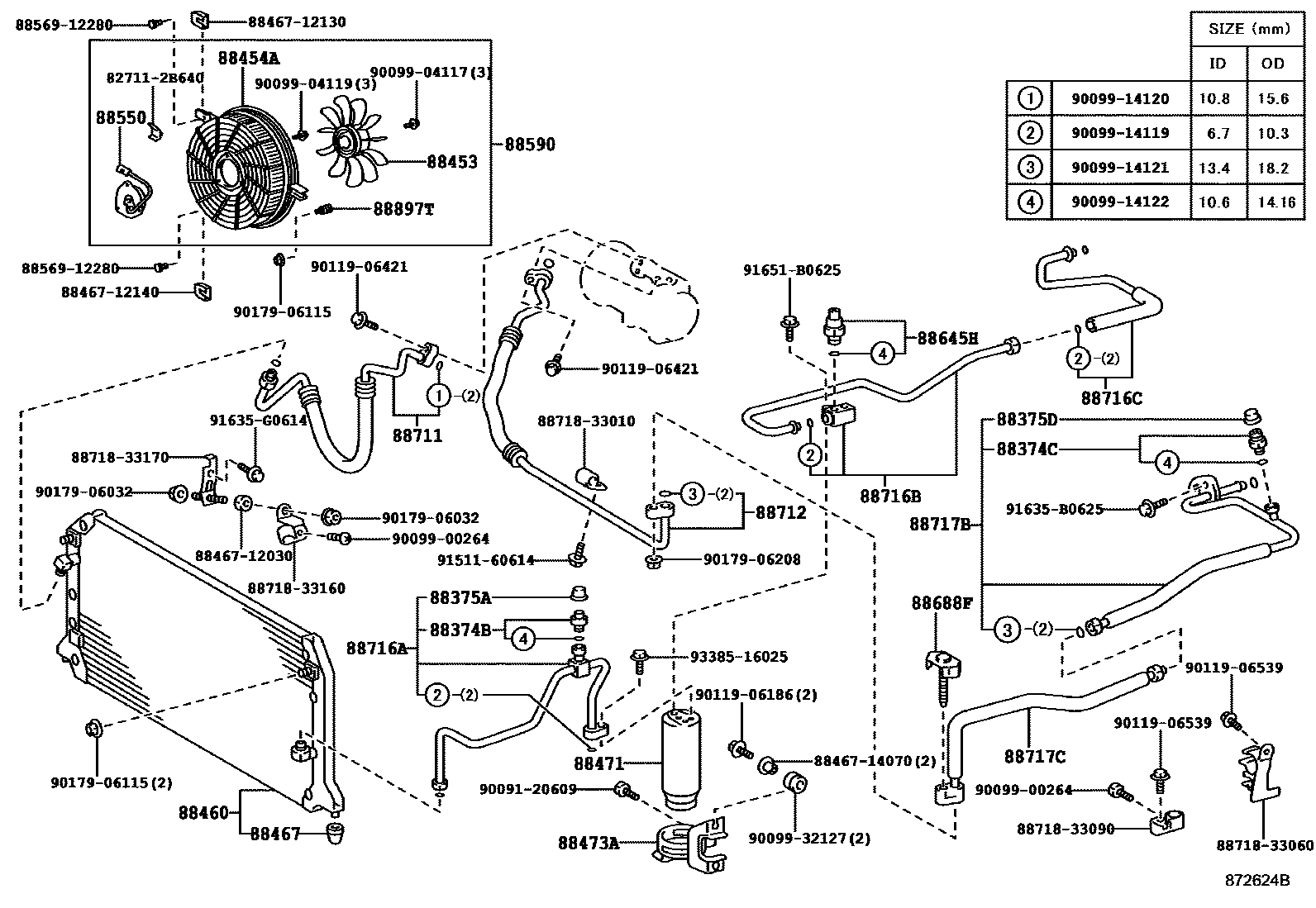

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0004 1

88374BVALVE, SERVICE, NO.1

main88374-30010iMCV2#,SXV2#199704-200112

88374CVALVE, SERVICE, NO.2

main88374-30010iMCV2#,SXV2#199704-200112

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iMCV2#,SXV2#199704-200112

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iMCV2#,SXV2#199704-199908

88453FAN, COOLING (FOR CONDENSER)

main88453-10022iMCV20199704-199908

88454ASHROUD, FAN

main88454-33020iMCV20199704-199908

88460CONDENSER ASSY, COOLER

main88460-0W010iMCV2#,SXV20199704-199705

main88460-0W011iMCV2#,SXV2#199705-200112

88467CUSHION, COOLER CONDENSER, NO.1

main88467-06020×2iMCV2#,SXV2#199704

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iMCV2#,SXV2#199704-200112

88473AHOLDER, RECEIVER

main88473-33050iMCV2#,SXV2#199704-200112

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12160iMCV20199704-199908

88590BLOWER ASSY, W/SHROUD

main88590-33030iMCV20199704-199908

88645HSWITCH, PRESSURE NO.1

main88645-20050iMCV2#,SXV2#199704-200112

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-33240iMCV2#,SXV2#199704-200112

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33100iSXV20199704-199705

main88711-33101iSXV2#199705

main88711-33110iMCV2#199704-199705

main88711-33111iMCV2#199705-199908

main88711-33120iMCV20199908

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-33070iSXV20199704

main88712-33091iMCV20,21199704-199808

main88712-33100iSXV25199706

main88712-33110iMCV25199706-199810

main88712-33111iMCV25199810

main88712-33130iMCV20199908

main88712-33170iMCV20,21199808-199908

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-33240iMCV2#,SXV2#199704-200112

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-33290iMCV2#,SXV2#199704-199908

main88716-33330iMCV20199908-200112

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-33280iMCV2#,SXV2#199704-200112

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-33170iMCV2#,SXV2#199704-200112

88717CPIPE, COOLER REFRIGERANT SUCTION, C

main88717-33160iMCV2#,SXV2#199704-199908

main88717-33210iMCV20199908-200112

88897TGROMMET, COOLER

main88897-33010iMCV20199704-199908

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846712030CUSHION, COOLER CONDENSER, NO.1

main88467-12030

8846712130CUSHION, COOLER CONDENSER, NO.1

main88467-12130

8846712140CUSHION, COOLER CONDENSER, NO.1

main88467-12140

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

8856912280CLAMP (FOR COOLER RELAY)

main88569-12280

8871833010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33010

8871833060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33060

8871833090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33090

8871833160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33160

8871833170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33170

9009120609

main90091-20609

9009900264

main90099-00264

9009904117

main90099-04117

9009904119

main90099-04119

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9009932127

main90099-32127

9011906186

main90119-06186

9011906421

main90119-06421

9011906539

main90119-06539

9017906032

main90179-06032

9017906115

main90179-06115

9017906208

main90179-06208

9151160614

main91511-60614

91635B0625

main91635-B0625

91635G0614

main91635-G0614

91651B0625

main91651-B0625

9338516025

main93385-16025

53 parts on this diagram · 3 diagrams in section
