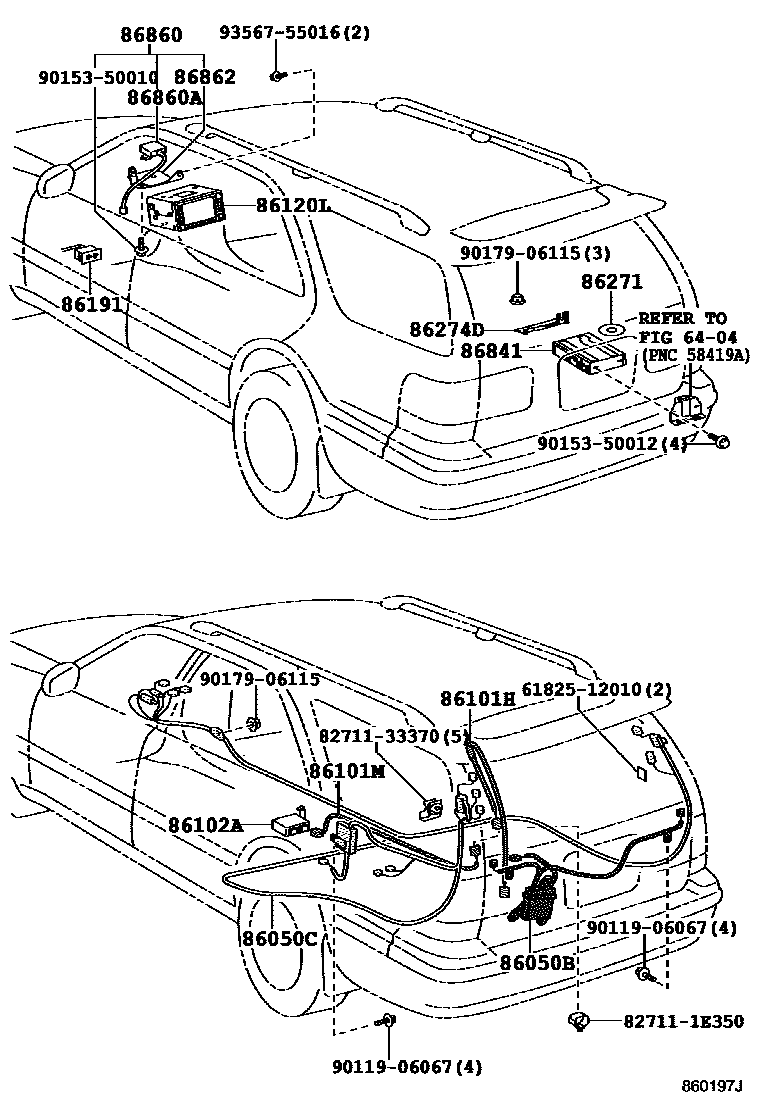

NAVIGATION & FRONT MONITOR DISPLAY

6404DECK BOARD & DECK TRIM COVER

→ Go to FIG 64-04

86050BANTENNA ASSY, TELEVISION

main86050-33030iMCV2#,SXV2#199704-199908

main86050-33070iMCV2#,SXV2#199908

86050CANTENNA ASSY, TELEVISION

main86050-33040iMCV2#,SXV2#199704-199908

main86050-33080iMCV2#,SXV2#199908

86101HCORD SUB-ASSY, ANTENNA

main86101-33270iMCV2#,SXV20199704-199706

main86101-33271iMCV2#,SXV2#199706-199908

main86101-33310iMCV2#,SXV2#199908

86101MCORD SUB-ASSY, ANTENNA

main86101-33280iMCV2#,SXV2#199704-199908

main86101-33300iMCV2#,SXV2#199908

86102ASELECTOR SUB-ASSY, ANTENNA

main86102-33010iMCV2#,SXV2#199704-199908

main86102-33020iMCV2#,SXV2#199908

86120LRECEIVER ASSY, NAVIGATION

main86120-33190iMCV2#,SXV2#199704-199710

main86120-33191iMCV2#,SXV2#199710-199808

main86120-33192iMCV2#,SXV2#199808-199908

main86120-33200iMCV2#,SXV2#199704-199710

main86120-33201iMCV2#,SXV2#199710-199808

main86120-33202iMCV2#,SXV2#199808-199908

main86120-33290iMCV2#,SXV2#199908

86191TERMINAL, VIDEO(VIDEO ADAPTER)

main86191-32010iMCV2#,SXV2#199704

86271DISC, DISC PLAYER

main86271-30470iMCV2#,SXV2#199908-200002

main86271-33010iMCV2#,SXV2#199704-199711

main86271-33011iMCV2#,SXV2#199711-199908

main86271-33020iMCV2#,SXV2#200002-200107

main86271-44020iMCV2#,SXV2#200107-200112

86274DBRACKET, DISC PLAYER

main86274-33100iMCV2#,SXV2#199704-199908

main86274-33101iMCV2#,SXV2#199908-200112

86841COMPUTER, NAVIGATION

main86841-20010iMCV2#,SXV2#199908-200002

main86841-33011iMCV2#,SXV2#199704-199708

main86841-33012iMCV2#,SXV2#199708-199711

main86841-33013iMCV2#,SXV2#199711-199808

main86841-33020iMCV2#,SXV2#199808-199908

main86841-33040iMCV2#,SXV2#200002-200107

main86841-33041iMCV2#,SXV2#200107-200111

main86841-33042iMCV2#,SXV2#200111-200112

86860ANTENNA ASSY, NAVIGATION

main86860-33020iMCV2#,SXV2#199704-199908

main86860-33040iMCV2#,SXV2#199908

86860AANTENNA, NAVIGATION

main86861-33010iMCV2#,SXV2#199704-199908

86862BRACKET, NAVIGATION ANTENNA

main86862-33010iMCV2#,SXV2#199704

6182512010PLATE, QUARTER INNER PANEL, LOWER FRONT RH

main61825-12010

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

8271133370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33370

9011906067

main90119-06067

9015350010

main90153-50010

9015350012

main90153-50012

9017906115

main90179-06115

9356755016

main93567-55016

22 parts on this diagram · 1 diagram in section
