63351FPAD, ROOF HEADLINING

main63351-33010i199802

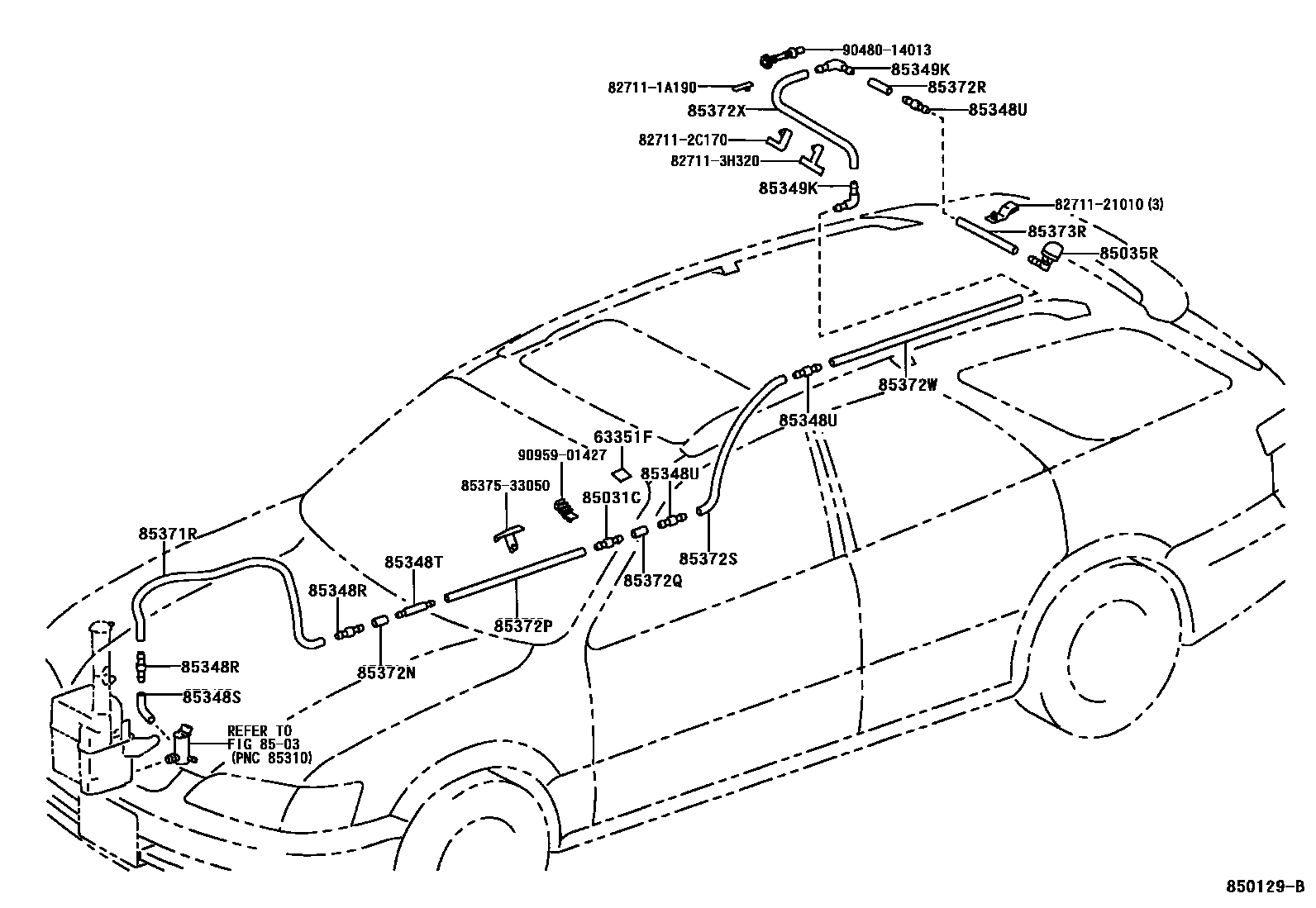

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85031CVALVE SUB-ASSY, WASHER

main85375-12520i199704

85035RNOZZLE SUB-ASSY, REAR WASHER

main85395-33030-A0i199704-199908

SU.WHITE PM,051 ,28Y

main85395-33030-A1i199810-199907

main85395-33030-B0i199704-199908

SILVER ME,199

main85395-33030-B1i199908

SILVER ME.,1C8

main85395-33030-D0i199704-199808

MAGENTA MC,3L3

main85395-33030-G0i199704-199808

DK. GREEN MC.P.I.O.,2CK

main85395-33030-J0i199704-199908

DK BLUE M.M.,8L3

main85395-33040i199810-199907

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×2i199704

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481i199704

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-32150i199704

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122×3i199704

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200×2i199704

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001i199704

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main85379-32240i199704

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i199704

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i199704

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33299i199704

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001i199704

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90446-07001i199704

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

main90446-07001i199704

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299i199704

827111A190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A190

8271121010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-21010

827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C170

827113H320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H320

8537533050HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-33050

9048014013

main90480-14013

9095901427

main90959-01427
