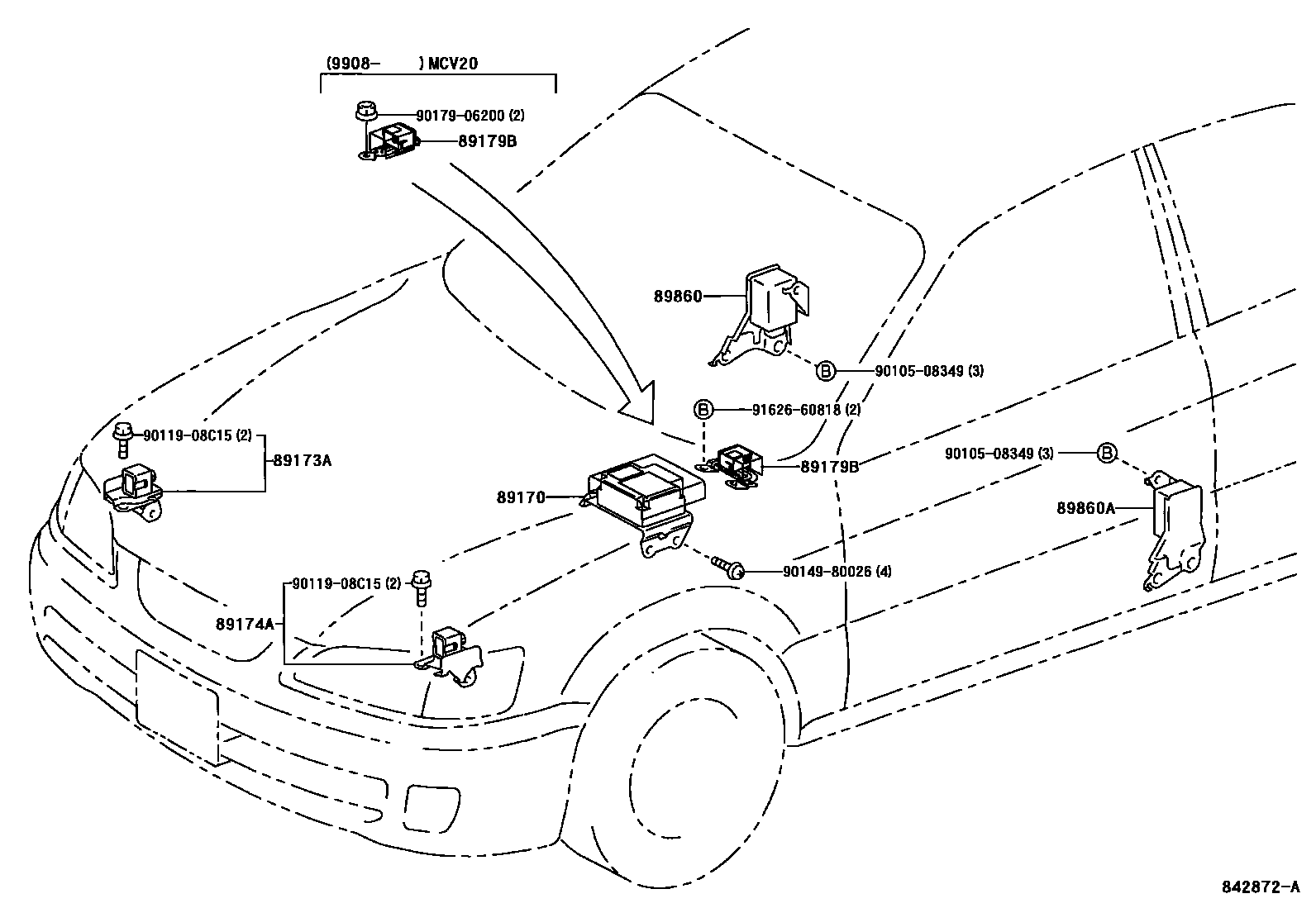

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-06070iMCV20,21,SXV20199708-199808

main89170-06130iMCV21,SXV20199908-200006

main89170-06131iMCV21,SXV20200006

main89170-33060iMCV20,21,SXV20199704-199707

main89170-33070iMCV20,21,SXV20199704-199707

main89170-33080iMCV25,SXV25199706-199707

main89170-33090iMCV25,SXV25199706-199707

main89170-33100iMCV20,21,SXV20199707-199808

main89170-33110iMCV20,21,SXV20199707-199708

main89170-33120iMCV25,SXV25199707-199808

main89170-33130iMCV25,SXV25199707-199808

main89170-33150iMCV20,21,SXV20199808

main89170-33160iMCV20,21,SXV20199808-199908

main89170-33170iMCV25,SXV25199808

main89170-33180iMCV25,SXV25199808

main89170-33190iMCV20199908

89173ASENSOR, AIRBAG, FRONT RH

main89173-39195iMCV2#,SXV2#199808

89174ASENSOR, AIRBAG, FRONT LH

main89174-39065iMCV2#,SXV2#199808

89179BSENSOR, COLLISION DETECTION

main89179-24010iMCV20199908

main89179-33010iMCV2#,SXV2#199704-199908

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-33010iMCV2#,SXV2#199704-199707

main89860-33030iMCV2#,SXV2#199707

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-33010iMCV2#,SXV2#199704-199707

main89830-33030iMCV2#,SXV2#199707

9010508349

main90105-08349

9011908C15

main90119-08C15

9014980026

main90149-80026

9017906200

main90179-06200

9162660818

main91626-60818

11 parts on this diagram · 1 diagram in section
