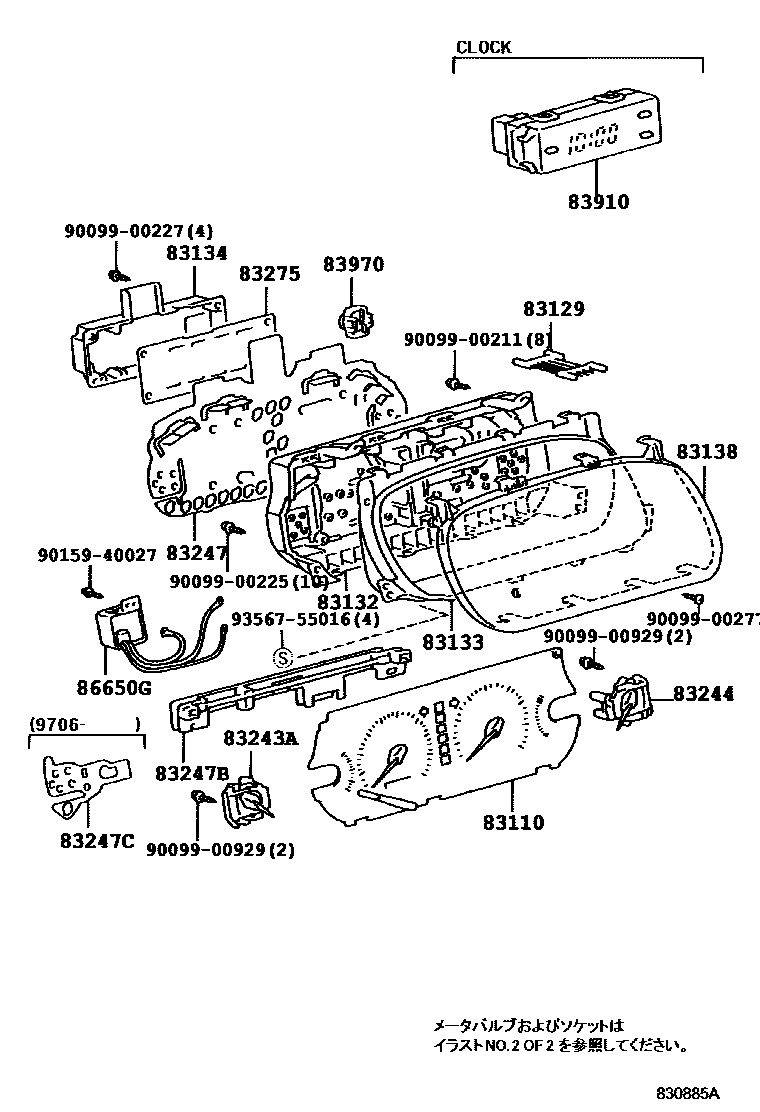

METER

0001 1��������-� 0002 1 0003 1����� & ����(��������-�) 0004 1����� & ����

83110SPEEDOMETER ASSY

main83220-33030iSXV2#199808-199908

main83220-33031iSXV2#199908

main83220-33040iMCV2#199704-199710

main83220-33041iMCV2#199710-199808

main83220-33042iMCV2#199808-199908

main83220-33043iMCV2#199908

main83220-33080iSXV2#199704-199710

main83220-33081iSXV2#199710-199908

main83220-33082iSXV2#199908

main83220-33210iMCV21,25199908

main83220-33220iSXV2#199908

83129WIRE, METER

main83875-33150iMCV2#,SXV2#199704

83132CASE, COMBINATION METER

main83841-33030iSXV2#199808

main83841-33150iMCV2#,SXV2#199704

83133PLATE, COMBINATION METER, NO.1

main83811-33030iSXV2#199808

main83811-33150iMCV2#,SXV2#199704

83134COVER, COMBINATION METER, NO.1

main83821-33150iMCV20,21,SXV20199704

main83821-33220iSXV25199808

main83821-33240iMCV25,SXV25199706

83138GLASS, SPEEDOMETER

main83852-33030iSXV2#199808

main83852-33150iMCV2#,SXV2#199704

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-33090iSXV20199808

main83882-33150iMCV20,21,SXV20199704

main83882-33220iSXV25199808

main83882-33240iMCV25,SXV25199706

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-33150iMCV2#,SXV2#199704

83247PLATE, METER CIRCUIT

main83861-33091iSXV20199808

main83861-33150iMCV20,21,SXV20199704-199710

main83861-33151iSXV20199808-199908

main83861-33152iMCV20,21199808-199908

main83861-33153iMCV20,21199908

main83861-33190iSXV20199908

main83861-33221iSXV25199808

main83861-33240iMCV25,SXV25199706-199710

main83861-33241iMCV25,SXV25199710-199908

main83861-33250iMCV25,SXV25199908

main83861-33530iMCV21199908

main83861-33540iSXV20199908

main83861-33550iMCV25,SXV25199908

83247BPLATE, METER CIRCUIT, NO.2

main83864-33150iMCV2#,SXV2#199704-199707

main83864-33180iMCV25199707-199708

main83864-33221iSXV25199808-200112

83247CPLATE, MATER CIRCUIT, NO.3

main83862-33240iMCV25,SXV25199706

83275PLATE,COMPUTER METER CIRCUIT NO.1

main83275-33150iMCV20,21,SXV20199704

main83275-33240iMCV25,SXV25199706

83910CLOCK ASSY

main83910-33030iMCV2#,SXV2#199704

83970BUZZER ASSY, REVERSE WARNING

main83970-20010iMCV2#,SXV2#199704

86650GBUZZER ASSY

main86650-33020iMCV2#,SXV2#199704

9009900211

main90099-00211

9009900225

main90099-00225

9009900227

main90099-00227

9009900277

main90099-00277

9009900929

main90099-00929

9015940027

main90159-40027

9356755016

main93567-55016

22 parts on this diagram · 4 diagrams in section
