INTERIOR LAMP

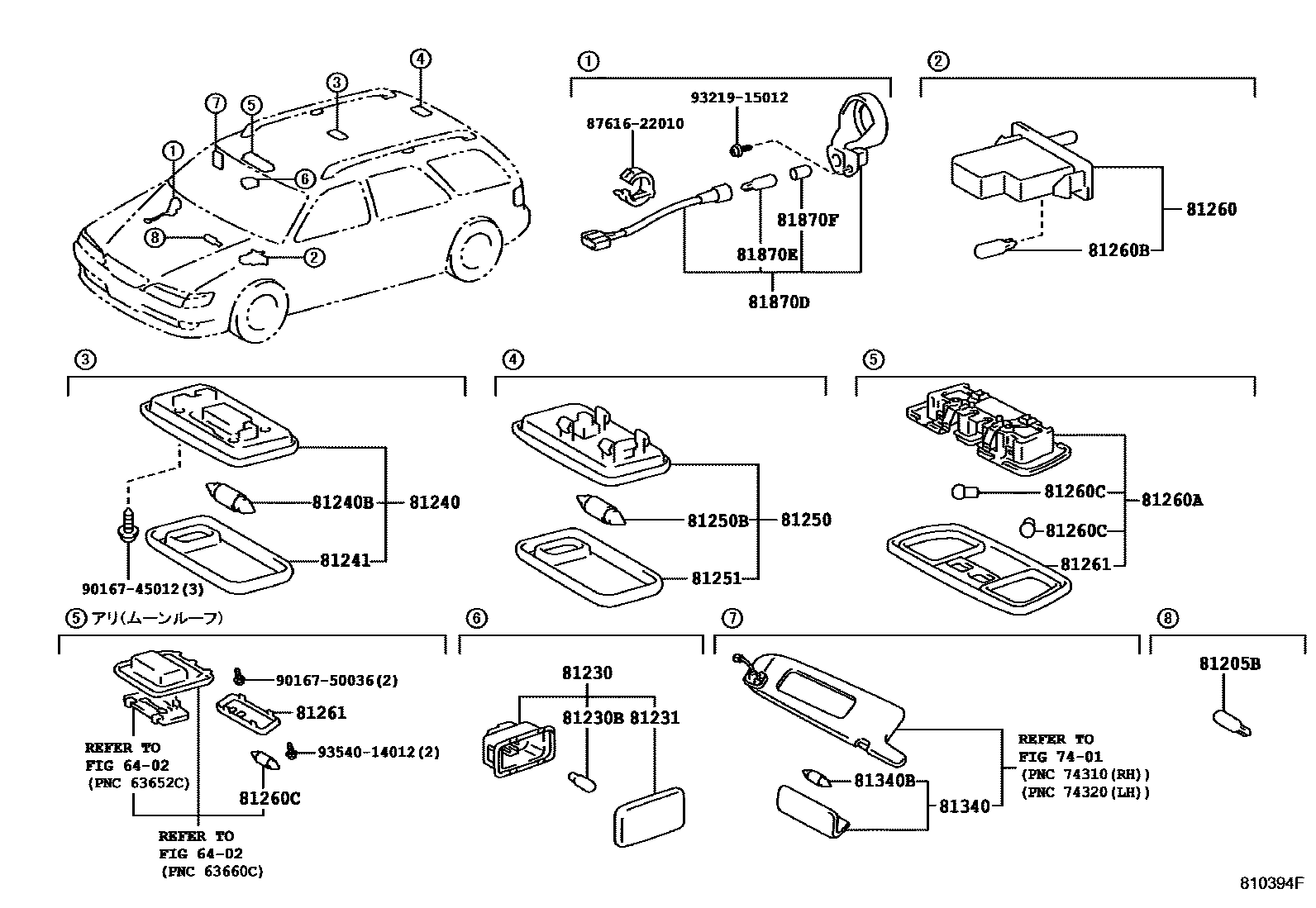

Parts diagram

6402ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-02

7401ARMREST & VISOR

→ Go to FIG 74-01

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014i199704

81230LAMP ASSY, COURTESY

main81230-30140×2i199704

81230BBULB(FOR COURTESY LAMP)

main90981-11020×2i199704

81231LENS, COURTESY LAMP

main81231-50010×2i199704

81240LAMP ASSY, ROOM, NO.1

main81240-32031-B2i199704-199908

LT.GRAY,TRIM1#

main81240-32031-G1i199704

SAGE,TRIM6#

81240BBULB, ROOM LAMP, NO.1

main90981-14004i199704

81241LENS, ROOM LAMP, NO.1

main81241-32031i199704

81250LAMP ASSY, ROOM, NO.2

main81240-33010-B0i199704-199908

LT.GRAY,TRIM1#

main81240-33010-G0i199704

SAGE,TRIM6#

81250BBULB, ROOM LAMP, NO.2

main90981-14011i199704

81251LENS, ROOM LAMP, NO.2

main81241-12020i199704

81260LAMP ASSY, GLOVE BOX

main81260-33030i199704

81260ALAMP ASSY, MAP

main81260-22180-B2i199908

LT.GRAY,TRIM2#

main81260-22180-G0i199908

SAGE,TRIM6#

main81260-32081-B1i199704-199908

LT.GRAY,TRIM1#

main81260-32081-G1i199704-199908

SAGE,TRIM6#

81260BBULB(FOR GLOVE BOX)

main90981-11018i199704

81260CBULB(FOR MAP LAMP)

main90084-98049i199704

main90981-12020×2i199704

81261LENS AND COVER, MAP LAMP

main81231-AA010i199704

main81261-32081-B3i199704-199908

LT.GRAY,TRIM1#

main81261-32081-G1i199704

SAGE,TRIM6#

81340LAMP ASSY, VANITY

main81340-33090-B0i199704-199908

main81340-33090-G0i199704

main81350-33040-B0i199704-199908

main81350-33040-G0i199704

81340BBULB (FOR VANITY LAMP)

main90981-14003×2i199704

81870DLAMP ASSY, KEY CYLINDER

main81870-33030i199704

81870EBULB, KEY CYLINDER LAMP

main90981-11014i199704

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070i199704

8761622010CLAMP, COOLING UNIT CASE

main87616-22010

9016745012

main90167-45012

9016750036

main90167-50036

9321915012

main93219-15012

9354014012

main93540-14012

27 parts on this diagram · 1 diagram in section
