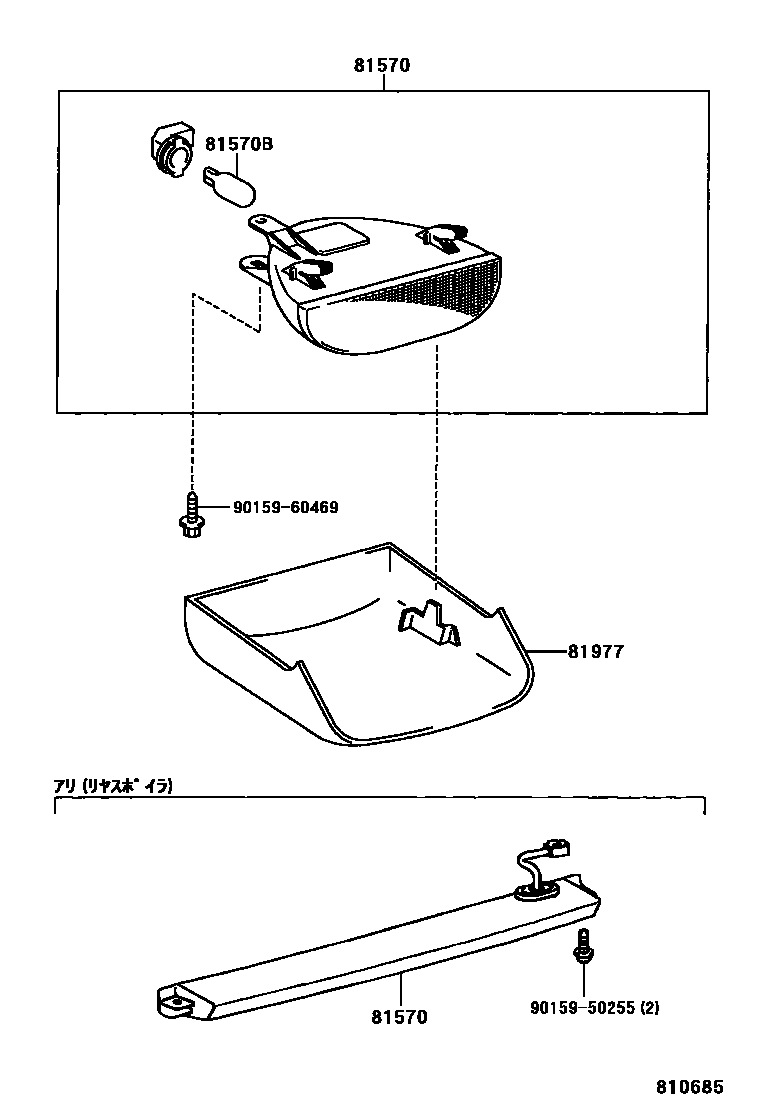

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-33100iMCV2#,SXV2#199704

main81570-33110iMCV20,21,SXV20199704

81570BBULB (FOR CENTER STOP LAMP)

main90981-11039iMCV2#,SXV2#199704-199901

main90981-11059iMCV2#,SXV2#199901

81977COVER, CENTER STOP LAMP

main81977-33040-B1iMCV2#,SXV2#199704-199908

BLUISH GRAY,TRIM1#

main81977-33040-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main81977-33040-G1iMCV2#,SXV2#199908

DK.SAGE,TRIM6#

9015950255

main90159-50255

9015960469

main90159-60469

5 parts on this diagram · 1 diagram in section
