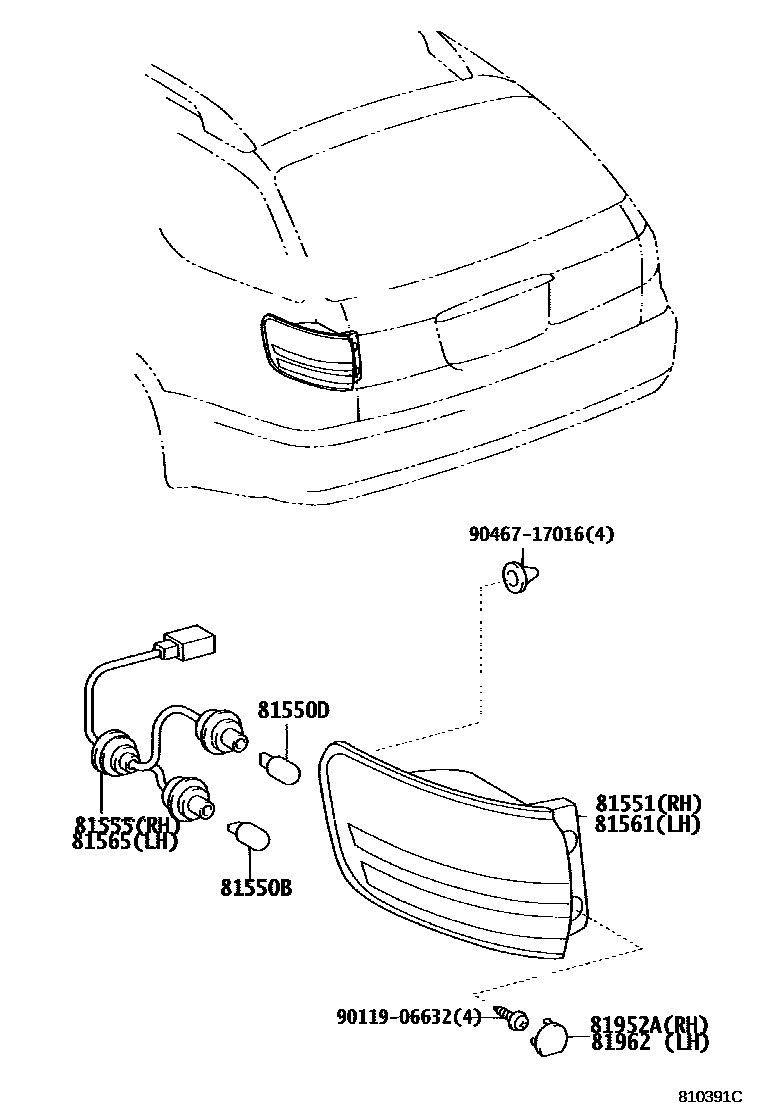

REAR COMBINATION LAMP

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11042×2iMCV2#,SXV2#199704

81550DBULB(FOR REAR COMBINATION LAMP)

main90981-11043iMCV2#,SXV2#199704-199908

81551LENS, REAR COMBINATION LAMP, RH

main81551-33190iMCV2#,SXV2#199704-199908

main81551-33250iMCV2#,SXV2#199908

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-33190iMCV2#,SXV2#199704

81561LENS, REAR COMBINATION LAMP, LH

main81561-33200iMCV2#,SXV2#199704-199908

main81561-33250iMCV2#,SXV2#199908

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-33190iMCV2#,SXV2#199704

81952ACOVER, REAR LAMP, RH

main81952-22010×2iMCV2#,SXV2#199704

81962COVER, REAR LAMP, LH

main81952-22010×2iMCV2#,SXV2#199704

9011906632

main90119-06632

9046717016

main90467-17016

10 parts on this diagram · 1 diagram in section
