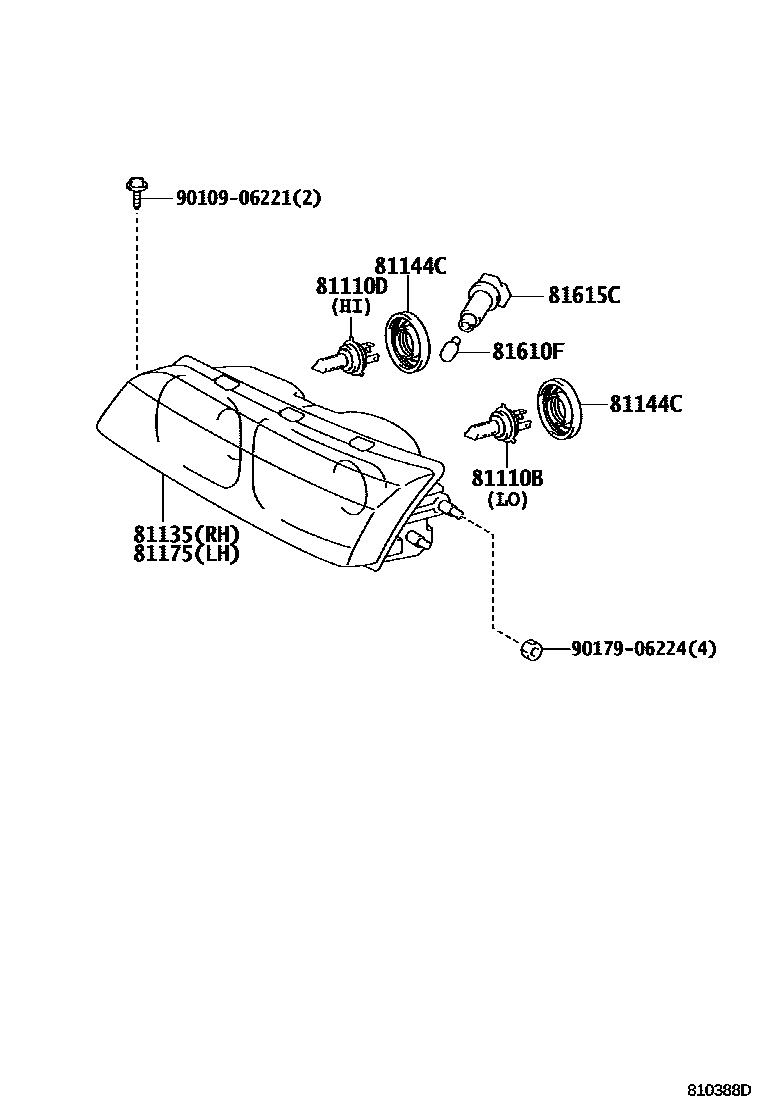

HEADLAMP

0001 1TYPE A 0002 1TYPE B 0003 1TYPE B

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040×2iMCV2#,SXV2#199704

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2iMCV2#,SXV2#199704

81135UNIT ASSY, HEADLAMP, RH

main81130-33120iMCV2#,SXV2#199704

main81130-33370iMCV21,25,SXV2#199908-199910

main81140-33370iMCV21,25,SXV2#199910

81144COVER, HEADLAMP, NO.1

main90075-99136×2iMCV21,25,SXV2#199908

81144CCOVER, HEADLAMP SOCKET

main90075-60004×2iMCV21,25,SXV2#199908

main90075-65006×4iMCV2#,SXV2#199704

81175UNIT ASSY, HEADLAMP, LH

main81070-33360iMCV21,25,SXV2#199910

main81170-33080iMCV2#,SXV2#199704

main81170-33360iMCV21,25,SXV2#199908-199910

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iMCV2#,SXV2#199704

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-60009×2iMCV2#,SXV2#199704

9010906221

main90109-06221

9017906224

main90179-06224

10 parts on this diagram · 3 diagrams in section
