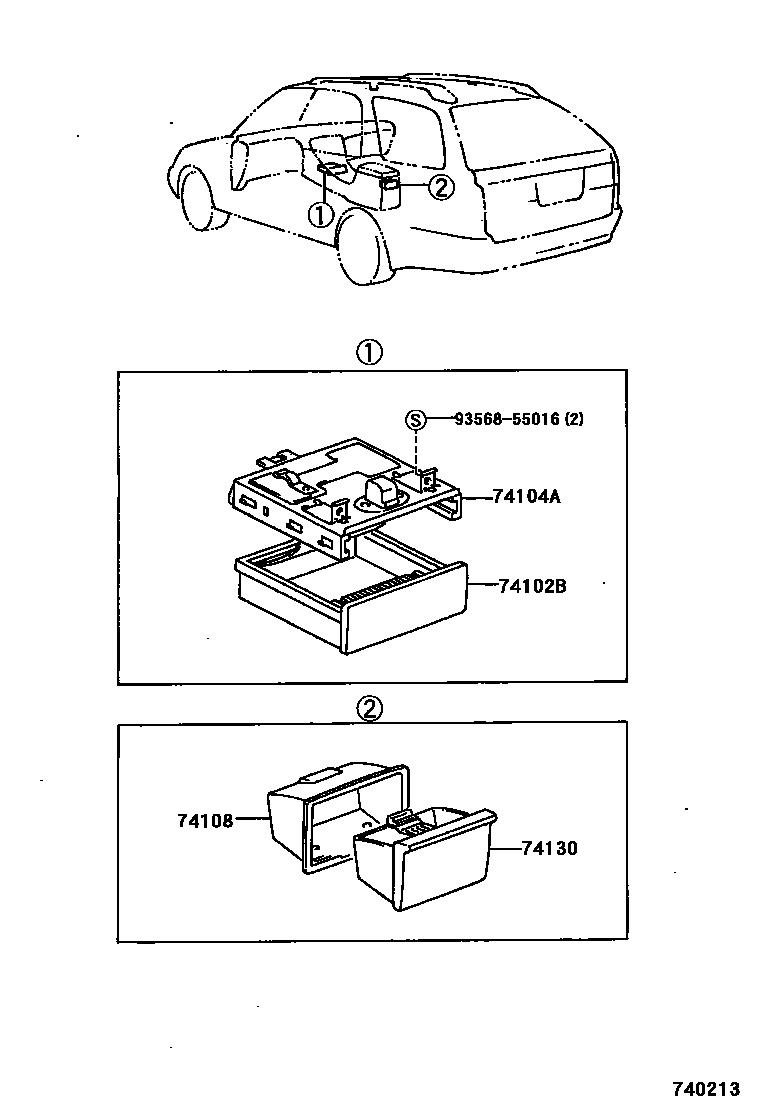

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-33050iMCV2#,SXV2#199704-199708

main74102-33060iMCV2#,SXV2#199708

main74102-33070iMCV21,25,SXV2#199908

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-33040iMCV2#,SXV2#199704

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-24010iMCV2#,SXV2#199704

74130RECEPTACLE ASSY, REAR ASH

main74109-24020-22iMCV21,25,SXV2#199908

BLACK,TRIM2#

main74109-24020-B0iMCV2#,SXV2#199704-199908

BLUISH GRAY,TRIM1#

main74109-24020-G2iMCV2#,SXV2#199704

DK.SAGE,TRIM6#

9356855016

main93568-55016

5 parts on this diagram · 1 diagram in section
