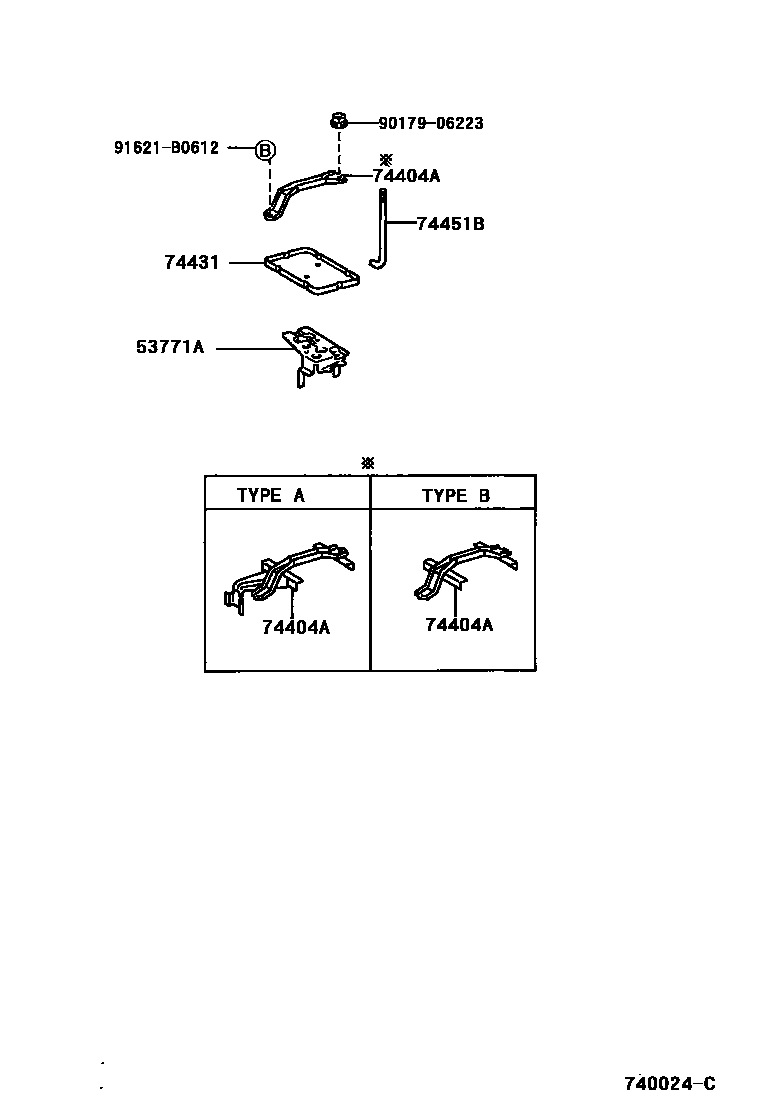

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53704-33010iMCV2#,SXV2#199704-199808

main53704-33011iMCV2#,SXV2#199808

74404ACLAMP SUB-ASSY, BATTERY

main74404-33050iMCV21,25,SXV2#199908

main74404-33060iMCV21,25,SXV2#199704-199908

74431TRAY, BATTERY

main74431-33011iMCV2#,SXV2#199704

74451BBOLT, BATTERY CLAMP

main74452-33010iMCV2#,SXV2#199704

9017906223

main90179-06223

91621B0612

main91621-B0612

6 parts on this diagram · 1 diagram in section
