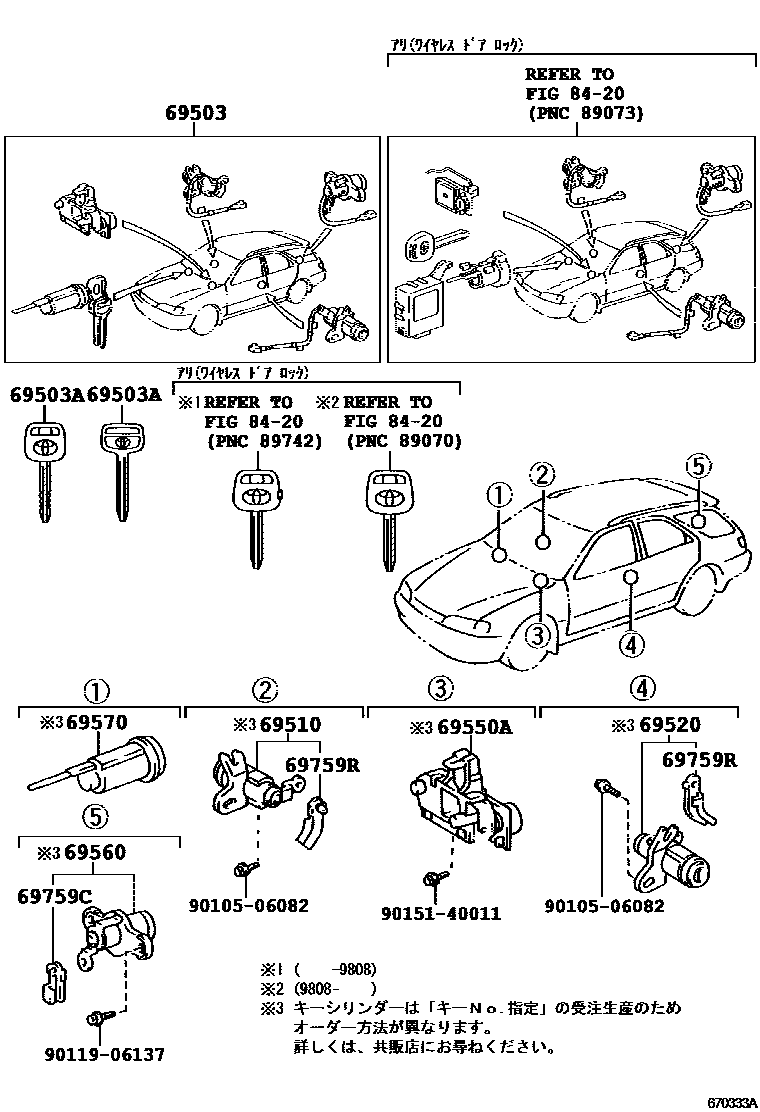

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-33720iSXV2#199808-199908

69503AKEY, BLANK

main90999-00194iMCV2#,SXV2#199704

main90999-00195iMCV2#,SXV2#199704

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-33080iMCV2#,SXV2#199704

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-33090iMCV2#,SXV2#199704

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-33020iMCV2#,SXV2#199704-199808

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-33150iMCV2#,SXV2#199704

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-41010iMCV2#,SXV2#199704

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-20080iMCV2#,SXV2#199704

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080iMCV2#,SXV2#199704

main69759-12090iMCV2#,SXV2#199704

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

9010506082

main90105-06082

9011906137

main90119-06137

9015140011

main90151-40011

13 parts on this diagram · 1 diagram in section
