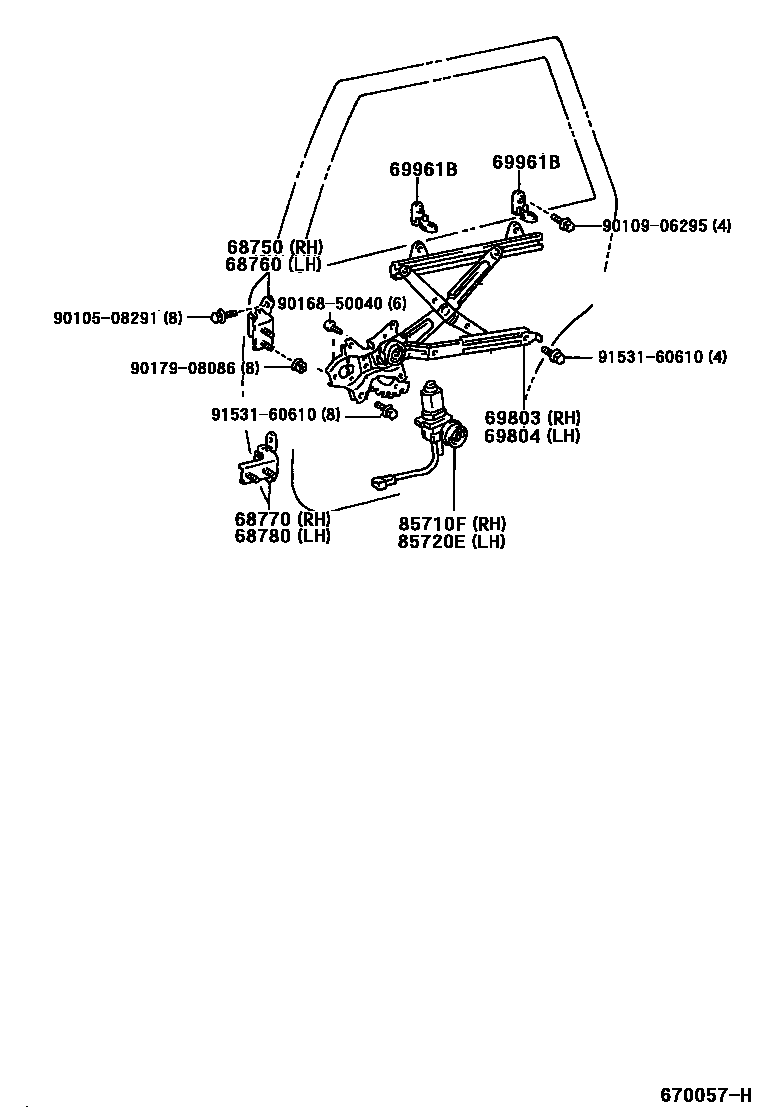

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-42010iMCV2#,SXV2#199704

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-42010iMCV2#,SXV2#199704

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33010iMCV2#,SXV2#199704

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33010iMCV2#,SXV2#199704

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-33010iMCV2#,SXV2#199704

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-33010iMCV2#,SXV2#199704

69961BRETAINER, REAR DOOR GLASS

main69961-33010×2iMCV2#,SXV2#199704

main69963-33010×2iMCV2#,SXV2#199704

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-10090iMCV2#,SXV2#199704

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-33030iMCV2#,SXV2#199704

9010508291

main90105-08291

9010906295

main90109-06295

9016850040

main90168-50040

9017908086

main90179-08086

9153160610

main91531-60610

14 parts on this diagram · 1 diagram in section
