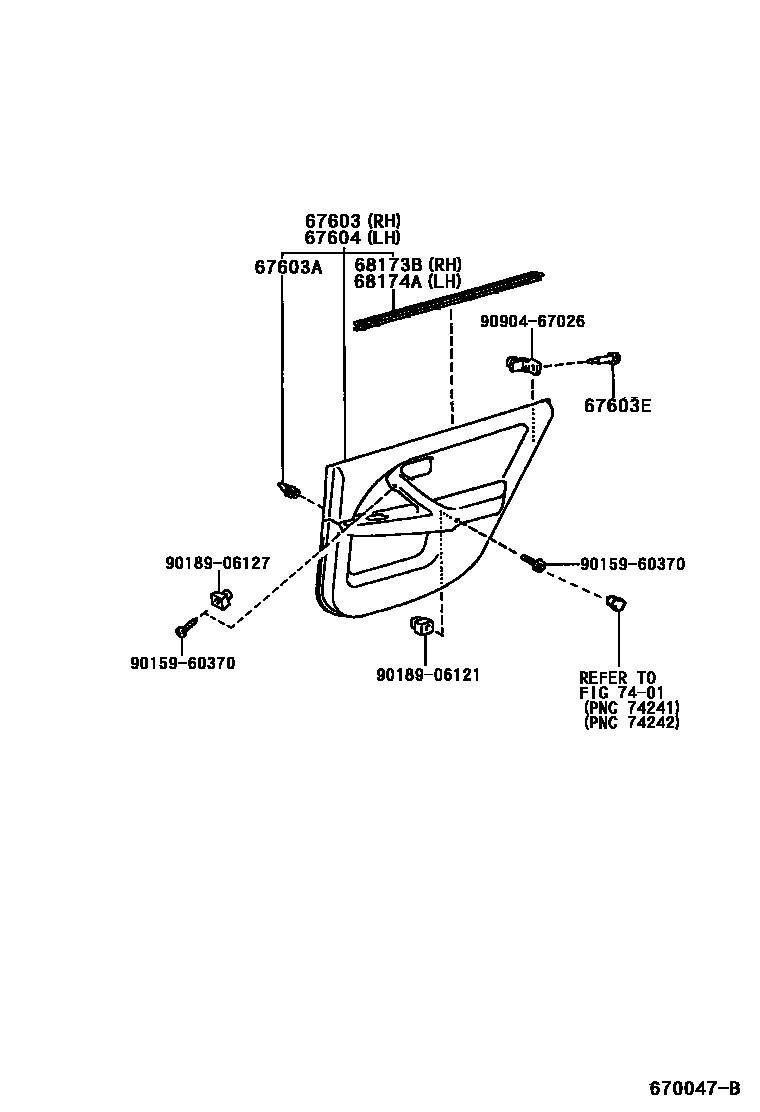

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-33420-B0iMCV2#,SXV2#199704-199808

BLUISH GRAY,TRIM1#

main67630-33420-G0iMCV2#,SXV2#199704-199808

DK. SAGE,TRIM6#

main67630-33421-B2iMCV2#,SXV2#199808-199908

BLUISH GRAY,TRIM1#

main67630-33421-G1iMCV2#,SXV2#199808-199908

DK.SAGE,TRIM6#

main67630-33450-B0iMCV21199802-199808

main67630-33450-C1iMCV21,25,SXV2#199908

main67630-33450-G0iMCV2#,SXV2#199808-199908

main67630-33450-G2iMCV2#,SXV2#199908

main67630-33550-G1iMCV2#,SXV2#199908

main67630-33560-C1iMCV21,25,SXV2#199908

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-12050×10iMCV2#,SXV2#199704

67603ECLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-22×2iMCV21,25,SXV2#199908

BLACK,TRIM2#

main90467-07066-B5×2iMCV2#,SXV2#199704-199908

BLUISH GRAY,TRIM1#

main90467-07066-G2×2iMCV2#,SXV2#199704

DK.SAGE,TRIM6#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-33410-B0iMCV2#,SXV2#199704-199808

BLUISH GRAY,TRIM1#

main67640-33410-G0iMCV2#,SXV2#199704-199808

DK. SAGE,TRIM6#

main67640-33411-B2iMCV2#,SXV2#199808-199908

BLUISH GRAY,TRIM1#

main67640-33411-G1iMCV2#,SXV2#199808-199908

DK.SAGE,TRIM6#

main67640-33450-B0iMCV21199802-199808

main67640-33450-C1iMCV21,25,SXV2#199908

main67640-33450-G0iMCV2#,SXV2#199808-199908

main67640-33450-G2iMCV2#,SXV2#199908

main67640-33550-G1iMCV2#,SXV2#199908

main67640-33560-C1iMCV21,25,SXV2#199908

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-33030iMCV2#,SXV2#199704

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-33030iMCV2#,SXV2#199704

7401ARMREST & VISOR

→ Go to FIG 74-01

9015960370

main90159-60370

9018906121

main90189-06121

9018906127

main90189-06127

9090467026

main90904-67026

11 parts on this diagram · 2 diagrams in section
