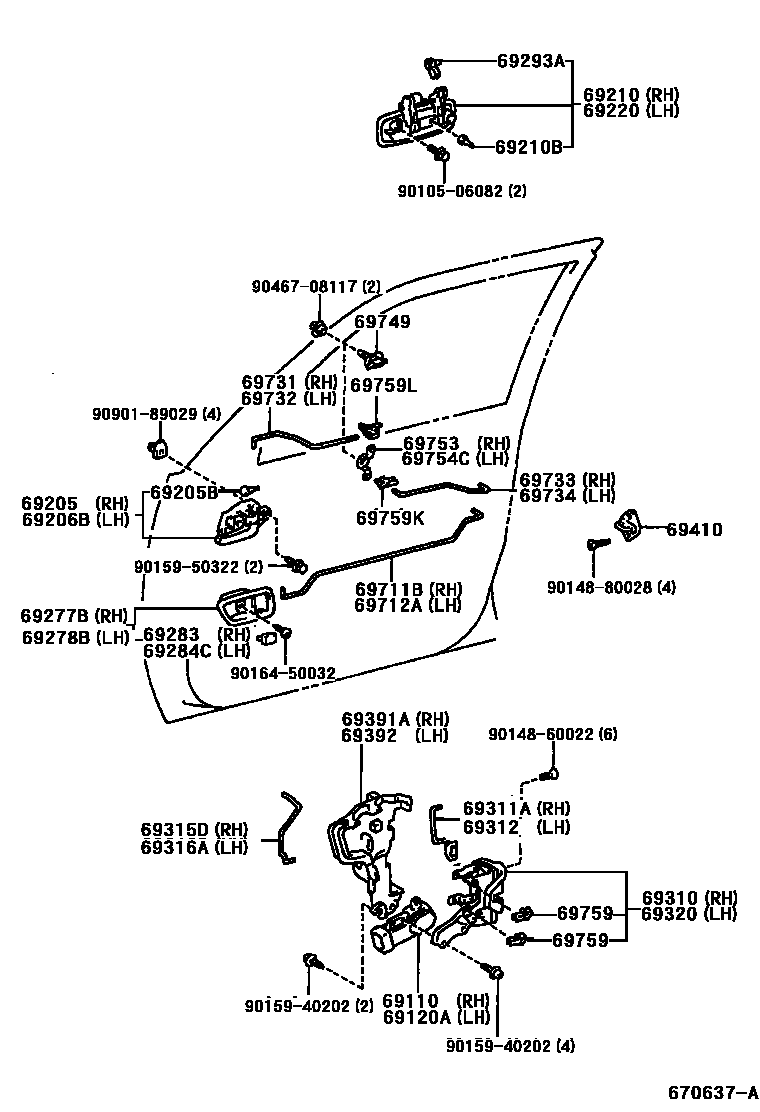

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-33010iMCV2#,SXV2#199704

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-33010iMCV2#,SXV2#199704

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-22080-B1iMCV2#,SXV2#199704-199908

BLUE GRAY,TRIM1#

main69205-22080-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main69205-22080-G1iMCV2#,SXV2#199704

SAGE,TRIM6#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iMCV2#,SXV2#199704

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-22080-B1iMCV2#,SXV2#199704-199908

BLUE GRAY,TRIM1#

main69206-22080-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main69206-22080-G1iMCV2#,SXV2#199704

SAGE,TRIM6#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-33040-A0iMCV21,25,SXV2#; SXV2#199810-199907

main69210-33040-A1iMCV2#,SXV2#199908-200001

SU.WHITE PM,051 ,2GF

main69210-33040-B1iMCV2#,SXV2#199704-199908

SILVER ME,199

main69210-33040-B3iMCV2#,SXV2#199908-200001

DK.GRAY M.M.,1C6

main69210-33040-B4iMCV2#,SXV2#199908-200001

SLVER ME.,1C8

main69210-33040-C0iMCV21,25,SXV2#199805-199907

main69210-33040-D1iMCV2#,SXV2#199704-199808

MAGENTA MC.,3L3

main69210-33040-D2iMCV2#,SXV2#199808-199908

DK.RED MC.,3N6

main69210-33040-G0iMCV2#,SXV2#199704-199808

DK.GREEN M.M.,2CK

main69210-33040-G1iMCV2#,SXV2#199808-200001

DK.GREEN MC.P.I.O.,6N9

main69210-33040-J0iMCV2#,SXV2#199704-199908

DK.BLUE M.M.,8L3

main69210-33041-A0iMCV2#,SXV2#200001-200112

SUPER WHITE 2,040

main69210-33041-A1iMCV2#,SXV2#200001-200112

SU. WHITE PM.,051 ,2GF

main69210-33041-B3iMCV2#,SXV2#200001-200112

DK.GRAY M.M.,1C6

main69210-33041-B4iMCV2#,SXV2#200001-200112

SILVER ME.,1C8

main69210-33041-G1iMCV2#,SXV2#200001-200112

DK.GREEN MC.P.I.O.,6N9

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018×4iMCV2#,SXV2#199704

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-33040-A0iMCV21,25,SXV2#; SXV2#199810-199907

main69220-33040-A1iMCV2#,SXV2#199908-200001

SU.WHITE PM,051 ,2GF

main69220-33040-B1iMCV2#,SXV2#199704-199908

SILVER ME,199

main69220-33040-B3iMCV2#,SXV2#199908-200001

DK.GRAY M.M.,1C6

main69220-33040-B4iMCV2#,SXV2#199908-200001

SLVER ME.,1C8

main69220-33040-C0iMCV21,25,SXV2#199710-199907

main69220-33040-D1iMCV2#,SXV2#199704-199808

MAGENTA MC.,3L3

main69220-33040-D2iMCV2#,SXV2#199808-199908

DK.RED MC.,3N6

main69220-33040-G0iMCV2#,SXV2#199704-199808

DK.GREEN M.M.,2CK

main69220-33040-G1iMCV2#,SXV2#199808-200001

DK.GREEN MC.P.I.O.,6N9

main69220-33040-J0iMCV2#,SXV2#199704-199908

DK.BLUE M.M.,8L3

main69220-33041-A0iMCV2#,SXV2#200001-200112

SUPER WHITE 2,040

main69220-33041-A1iMCV2#,SXV2#200001-200112

SU. WHITE PM.,051 ,2GF

main69220-33041-B3iMCV2#,SXV2#200001-200112

DK.GRAY M.M.,1C6

main69220-33041-B4iMCV2#,SXV2#200001-200112

SILVER ME.,1C8

main69220-33041-G1iMCV2#,SXV2#200001-200112

DK.GREEN MC.P.I.O.,6N9

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-33040-B0iMCV2#,SXV2#199704-199908

BLUE GRAY,TRIM1#

main69277-33040-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main69277-33040-G0iMCV2#,SXV2#199704

SAGE,TRIM6#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-33040-B0iMCV2#,SXV2#199704-199908

BLUE GRAY,TRIM1#

main69278-33040-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main69278-33040-G0iMCV2#,SXV2#199704

SAGE,TRIM6#

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-B3iMCV2#,SXV2#199704-199908

MD. MOON MIST,TRIM1#

main69283-30040-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main69283-30040-G1iMCV2#,SXV2#199704

SAGE,TRIM6#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-B3iMCV2#,SXV2#199704-199908

MD.MOON MIST,TRIM1#

main69284-30040-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main69284-30040-G1iMCV2#,SXV2#199704

SAGE,TRIM6#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iMCV2#,SXV2#199704-200001

main69293-12040iMCV2#,SXV2#199704-200001

main69293-33010iMCV2#,SXV2#200001

main69293-33020iMCV2#,SXV2#200001

69310LOCK ASSY, FRONT DOOR, RH

main69303-33010iMCV2#,SXV2#199704

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-33020iMCV2#,SXV2#199704

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-33020iMCV2#,SXV2#199704

69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH

main69315-33010iMCV2#,SXV2#199704

69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH

main69316-33010iMCV2#,SXV2#199704

69320LOCK ASSY, FRONT DOOR, LH

main69304-33010iMCV2#,SXV2#199704

69391ACOVER, FRONT DOOR LOCK, OUTER RH

main69391-33010iMCV2#,SXV2#199704

69392COVER, FRONT DOOR LOCK, OUTER LH

main69392-33010iMCV2#,SXV2#199704

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20070×2iMCV2#,SXV2#199704

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-33030iMCV2#,SXV2#199704

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-33030iMCV2#,SXV2#199704

69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH

main69731-33020iMCV2#,SXV2#199704

69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH

main69732-33020iMCV2#,SXV2#199704

69733LINK, FRONT DOOR INSIDE LOCKING, RH

main69733-33030iMCV2#,SXV2#199704

69734LINK, FRONT DOOR INSIDE LOCKING, LH

main69734-33020iMCV2#,SXV2#199704

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32030×2iMCV2#,SXV2#199704-199812

main69749-33010×2iMCV2#,SXV2#199812

69753BELLCRANK, DOOR LOCK CONTROL, RH

main69753-33030iMCV2#,SXV2#199704

69754CBELLCRANK, DOOR LOCK CONTROL, LH

main69753-33030iMCV2#,SXV2#199704

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050×2iMCV2#,SXV2#199704

main69759-24060×2iMCV2#,SXV2#199704

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-24080iMCV2#,SXV2#199704

main69759-24090iMCV2#,SXV2#199704

69759LSNAP, DOOR LOCK CONTROL LINK

main69759-20410×2iMCV2#,SXV2#199704

9010506082

main90105-06082

9014860022

main90148-60022

9014880028

main90148-80028

9015940202

main90159-40202

9015950322

main90159-50322

9016450032

main90164-50032

9046708117

main90467-08117

9090189029

main90901-89029

42 parts on this diagram · 1 diagram in section
