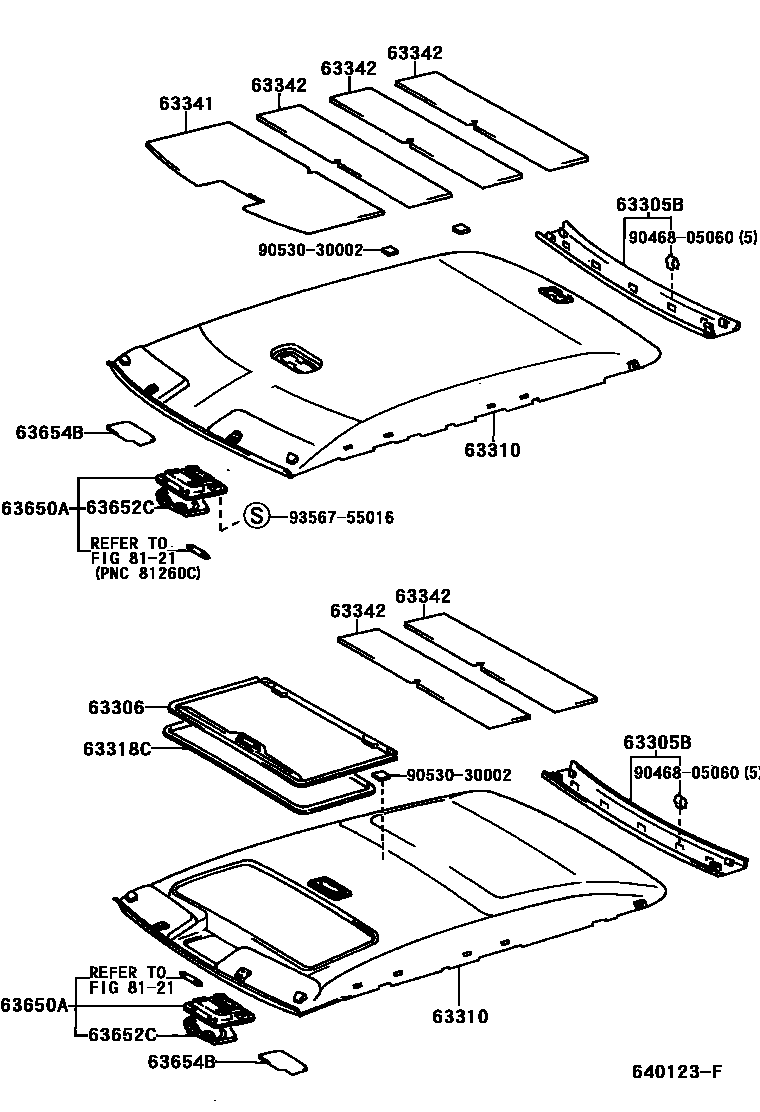

ROOF HEADLINING & SILENCER PAD

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-33010-B0iMCV2#,SXV2#199704-199908

LT.GRAY,TRIM1#

main63305-33010-G0iMCV2#,SXV2#199704

SAGE,TRIM6#

63306TRIM SUB-ASSY, SUNSHADE

main63306-33060-B0iMCV2#,SXV2#199704-199908

LT. GRAY,TRIM1#

main63306-33060-G0iMCV2#,SXV2#199704

SAGE,TRIM6#

63310HEADLINING ASSY, ROOF

main63310-33230-B0iMCV21,25,SXV2#199908

LT. GRAY,TRIM2#

main63310-33230-G0iMCV2#,SXV2#199704

SAGE,TRIM6#

main63310-33240-B0iMCV2#,SXV2#199704-199908

main63310-33240-G0iMCV2#,SXV2#199704

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-33010-B2iMCV21,25,SXV2#199908

main63318-33010-G2iMCV2#,SXV2#199704

63341PAD, ROOF SILENCER, NO.1

main63341-33010iMCV2#,SXV2#199704

63342PAD, ROOF SILENCER, NO.2

main63342-33040×2iMCV2#,SXV2#199704

63650ABOX ASSY, ROOF CONSOLE

main63660-0W010-B0iMCV2#,SXV2#199704-199803

LT.GRAY,TRIM1#

main63660-0W010-G0iMCV2#,SXV2#199704-199803

SAGE,TRIM6#

main63660-0W011-B0iMCV2#,SXV2#199803-199908

LT.GRAY,TRIM1#

main63660-0W011-G0iMCV2#,SXV2#199803

SAGE,TRIM6#

63652CCOVER, ROOF CONSOLE BOX

main63652-AA020-B0iMCV2#,SXV2#199704-199803

LT.GRAY,TRIM1#

main63652-AA020-G0iMCV2#,SXV2#199704-199803

SAGE,TRIM6#

main63652-AA021-B0iMCV2#,SXV2#199803-199908

LT.GRAY,TRIM1#

main63652-AA021-G0iMCV2#,SXV2#199803

SAGE,TRIM6#

63654BCOVER, ROOF CONSOLE BOX, INNER

main63654-33010iMCV2#,SXV2#199704

8121INTERIOR LAMP

→ Go to FIG 81-21

9046805060

main90468-05060

9053030002

main90530-30002

9356755016

main93567-55016

13 parts on this diagram · 1 diagram in section
