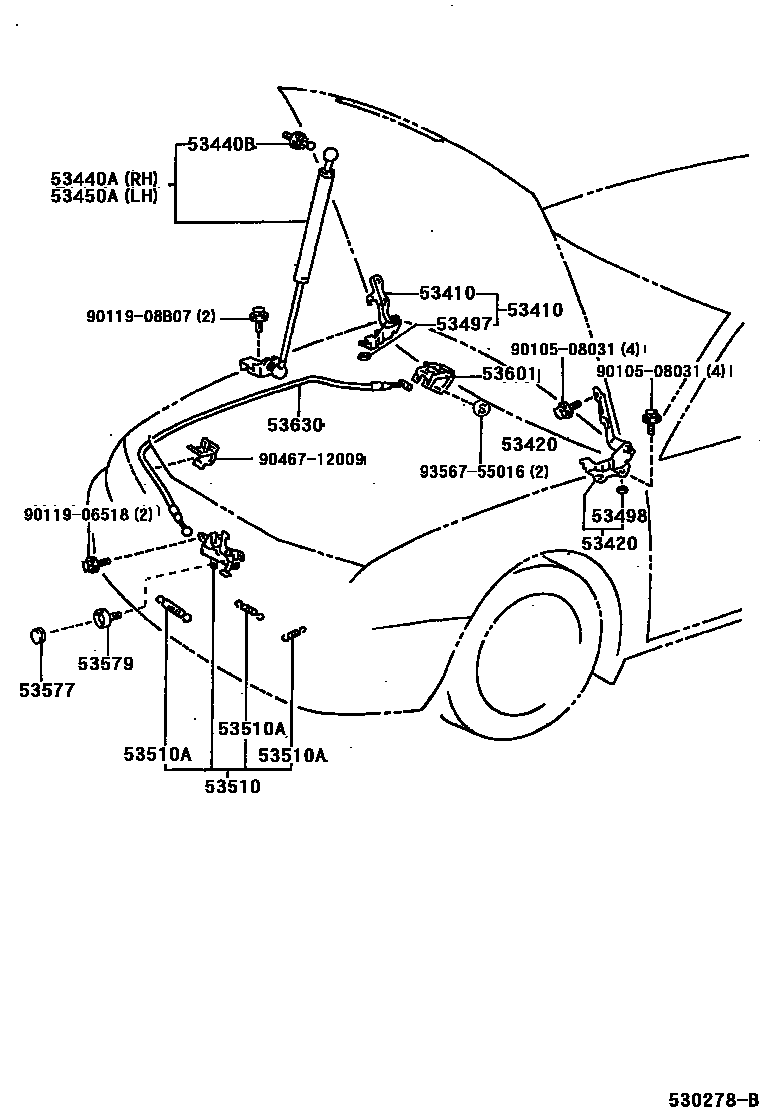

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-33030iMCV2#,SXV2#199704

53420HINGE ASSY, HOOD, LH

main53420-33030iMCV2#,SXV2#199704

53440ASUPPORT ASSY, HOOD, RH

main53440-39165iMCV2#,SXV2#199704

53440BBOLT, HOOD SUPPORT, NO.1

main68961-23010×2iMCV2#,SXV2#199704

53450ASUPPORT ASSY, HOOD, LH

main53440-39165iMCV2#,SXV2#199704

53497PAD, HOOD HINGE, NO.1

main53497-12070×2iMCV2#,SXV2#199704-199710

main53497-20070×2iMCV2#,SXV2#199710-199711

53498PAD, HOOD HINGE, NO.2

main53497-12050×4iMCV2#,SXV2#199802

main53497-12060×2iMCV2#,SXV2#199711-199802

main53497-12070×2iMCV2#,SXV2#199704-199710

main53497-20070×4iMCV2#,SXV2#199711

main53498-12060×2iMCV2#,SXV2#199711-199802

53510LOCK ASSY, HOOD

main53510-22350iMCV2#,SXV2#199704

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09057iMCV2#,SXV2#199704

main90506-12067iMCV2#,SXV2#199704

main90506-20065iMCV2#,SXV2#199704-199708

main90506-20071iMCV2#,SXV2#199708

53577BOLT, HOOD LOCK

main53577-33010iMCV2#,SXV2#199704

53579CAP, HOOD LOCK NUT

main53579-50010iMCV2#,SXV2#199704

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-33020-C0iMCV20; MCV21,25,SXV2#199908

BLACK,TRIM2#,6#; BLACK,TRIM6#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-33100iMCV2#,SXV2#199704

9010508031

main90105-08031

9011906518

main90119-06518

9011908B07

main90119-08B07

9046712009

main90467-12009

9356755016

main93567-55016

18 parts on this diagram · 1 diagram in section
