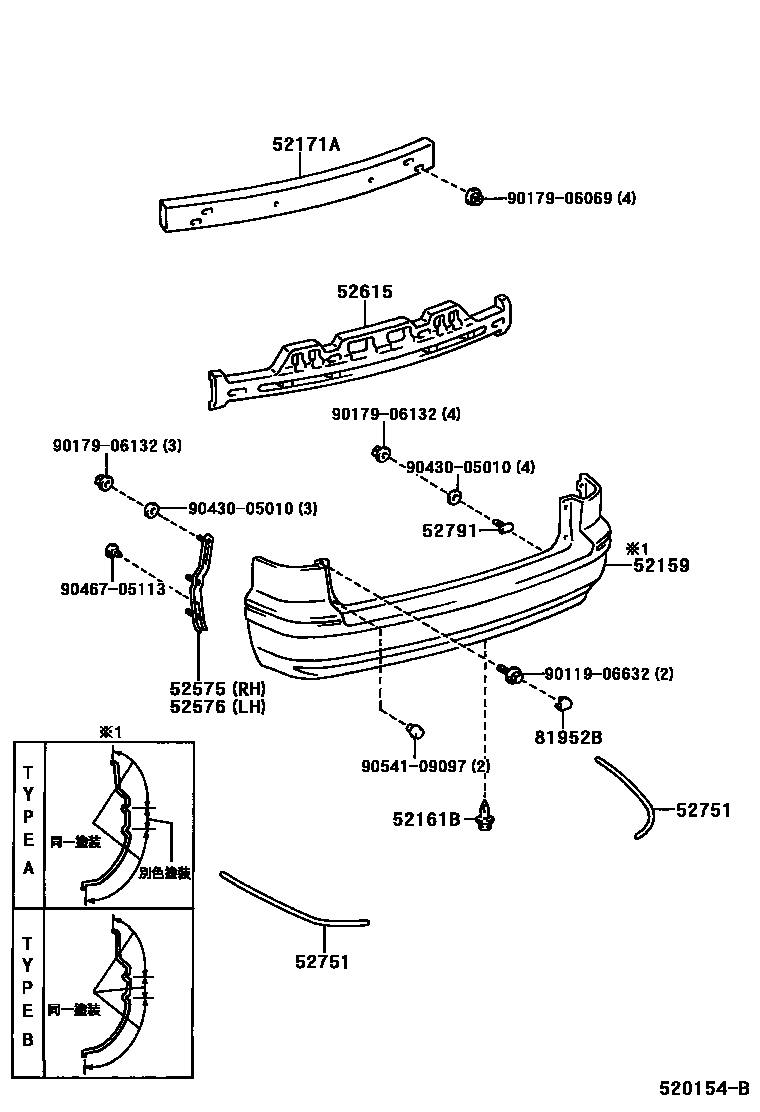

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-33110-A0iMCV2#,SXV2#199704-199908

SU.WHITE PM,051

main52159-33110-A1iMCV2#,SXV2#199704-199908

S.WHITE PM/FLAXEN MM,28Y

main52159-33110-A2iMCV2#,SXV2#199908-200008

SUPER WHITE 2,040

main52159-33110-A3iMCV2#,SXV2#199908-200008

main52159-33110-A4iMCV2#,SXV2#199908-200008

main52159-33110-A5iMCV2#,SXV2#200008-200112

SUPER WHITE 2,040

main52159-33110-A6iMCV2#,SXV2#200008-200112

main52159-33110-A7iMCV2#,SXV2#200008-200112

main52159-33110-B0iMCV2#,SXV2#199704-199908

SILVER ME,199

main52159-33110-B1iMCV2#,SXV2#199908-200008

DK.GRAY M.M.,1C6

main52159-33110-B2iMCV2#,SXV2#199908-200008

main52159-33110-B3iMCV2#,SXV2#199908-200008

main52159-33110-B4iMCV2#,SXV2#200008-200112

DK.GRAY M.M.,1C6

main52159-33110-B5iMCV2#,SXV2#200008-200112

main52159-33110-B6iMCV2#,SXV2#200008-200112

main52159-33110-C0iMCV21,25,SXV2#199805-199807

main52159-33110-D0iMCV2#,SXV2#199704-199808

MAGENTA MC.,3L3

main52159-33110-D1iMCV2#,SXV2#199808-199908

DK.RED MC.,3N6

main52159-33110-G1iMCV2#,SXV2#199704-199808

DK.GREEN MM/GRAY MM,2CK

main52159-33110-G2iMCV2#,SXV2#199808-200008

DK.GREEN MC.P.I.O.,6N9

main52159-33110-G3iMCV2#,SXV2#200008-200112

DK.GREEN MC.P.I.O.,6N9

main52159-33110-J0iMCV2#,SXV2#199704-199908

DK.BLUE M.M.,8L3

main52159-33111-A2iMCV21,25,SXV2#; SXV2#199810-199907

main52159-33111-B0iMCV21,25,SXV2#; SXV2#199810-199907

main52159-33111-C0iMCV21,25,SXV2#; SXV2#199810-199907

main52159-33150-A1iMCV2#,SXV2#199908-200008

SU.WHITE PM,2GF

main52159-33150-A6iMCV2#,SXV2#200008-200112

SU. WHITE PM.,2GF

52161BPIECE, REAR BUMPER

main90467-09127iMCV2#,SXV2#199704

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-33050iMCV2#,SXV2#199704

52575RETAINER, REAR BUMPER SIDE, RH

main52575-33080iMCV2#,SXV2#199704

52576RETAINER, REAR BUMPER SIDE, LH

main52576-33070iMCV2#,SXV2#199704

52615ABSORBER, REAR BUMPER ENERGY

main52615-33070iMCV2#,SXV2#199704

52751MOULDING, REAR BUMPER

main52751-33030×2iMCV2#,SXV2#199704

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12010×4iMCV2#,SXV2#199704-199806

main52791-33010×4iMCV2#,SXV2#199807

81952BCOVER, REAR LAMP

main81952-22010×2iMCV2#,SXV2#199704

9011906632

main90119-06632

9017906069

main90179-06069

9017906132

main90179-06132

9043005010

main90430-05010

9046705113

main90467-05113

9054109097

main90541-09097

15 parts on this diagram · 1 diagram in section
