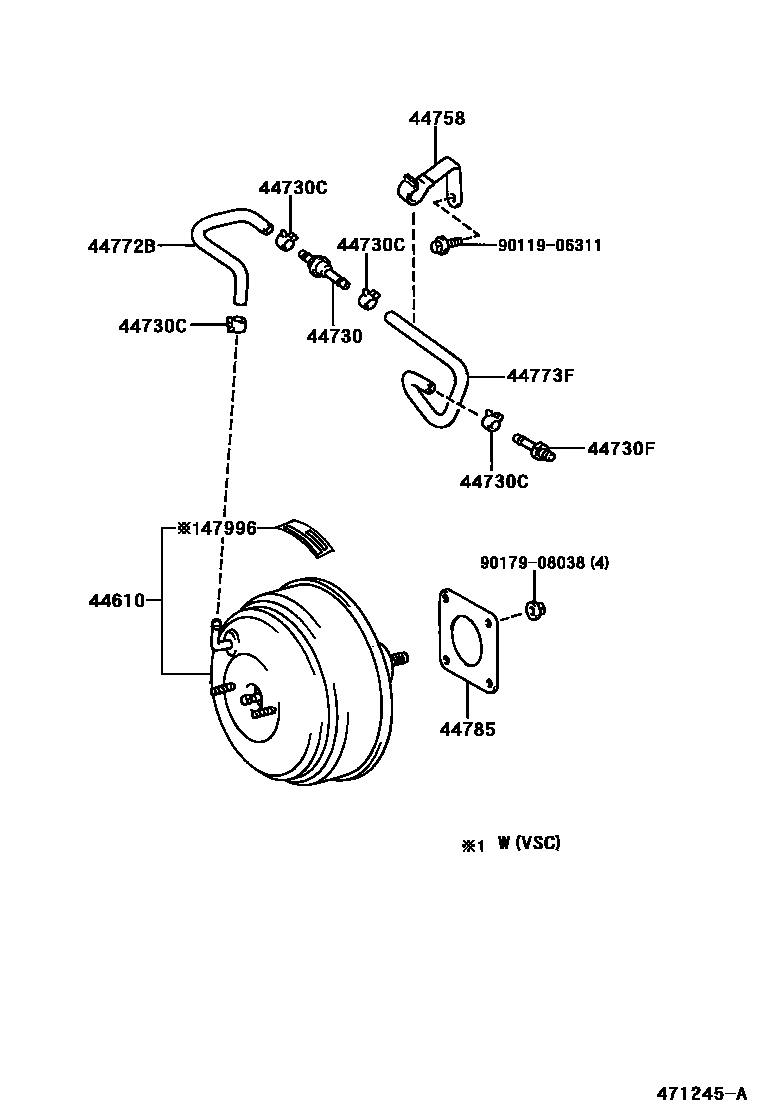

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-33480iMCV21,25,SXV2#199704-199908

main44610-33490iMCV20,21199704-199908

main44610-33521iMCV20199908

main44610-33560iMCV21,25,SXV2#199908

main44610-33570iMCV21199908

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iMCV2#,SXV2#199704

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×4iMCV2#,SXV2#199704

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iMCV2#,SXV2#199704

44758BRACKET, VACUUM CHECK VALVE

main44758-33030iMCV2#,SXV2#199704

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-33060iMCV2#,SXV2#199704

44773FHOSE, UNION TO CHECK VALVE

main44773-33050iSXV2#199704

main44773-33060iMCV2#199704

44785GASKET, BRAKE BOOSTER

main44785-20020iMCV2#,SXV2#199704

47996LABEL, BRAKE BLEED NOTICE

main47996-21010iMCV20199908

9011906311

main90119-06311

9017908038

main90179-08038

11 parts on this diagram · 2 diagrams in section
