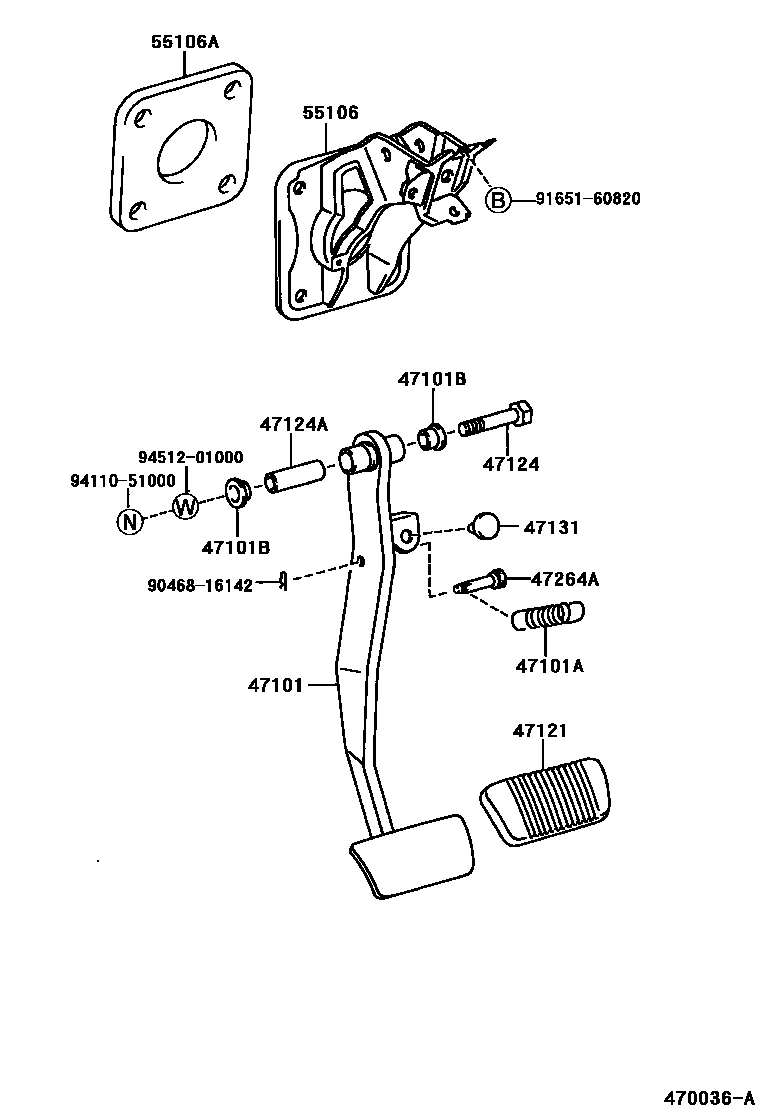

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-33040iMCV2#,SXV2#199704-199908

main47101-33050iMCV2#,SXV2#199908

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14024iMCV2#,SXV2#199704

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iMCV2#,SXV2#199704

47121PAD, BRAKE PEDAL

main47121-14010iMCV2#,SXV2#199704

47124SHAFT, BRAKE PEDAL

main90101-10039iMCV2#,SXV2#199704

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iMCV2#,SXV2#199704

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iMCV2#,SXV2#199704

47264APIN(FOR PUSH ROD)

main47148-33010iMCV2#,SXV2#199704-200109

main47148-33011iMCV2#,SXV2#200109-200112

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-33050iMCV2#,SXV2#199704-199908

main55106-33070iMCV2#,SXV2#199908

55106ASEAL, DASH PANEL

main55259-20010iMCV2#,SXV2#199704

9046816142

main90468-16142

9165160820

main91651-60820

9411051000

main94110-51000

9451201000

main94512-01000

14 parts on this diagram · 1 diagram in section
