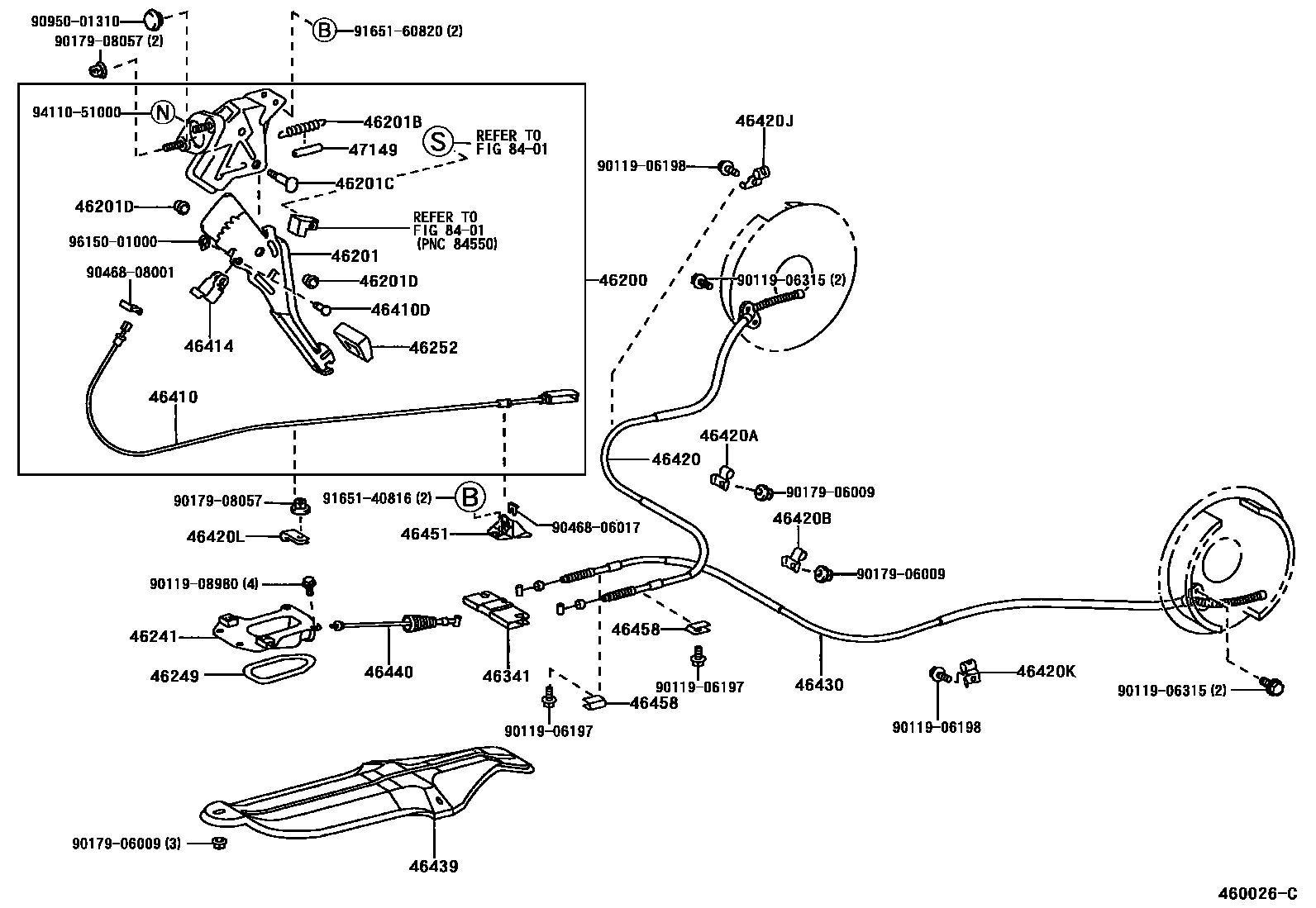

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-33030iMCV20,21,SXV20199704

main46200-33040iMCV25,SXV25199706

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-33100iMCV2#,SXV2#199704

46201BSPRING, TENSION

main90506-19004iMCV2#,SXV2#199704

46201CSHAFT, PEDAL

main90109-10033iMCV2#,SXV2#199704

46201DBUSH(FOR PARKING BRAKE PEDAL)

main90386-16022iMCV2#,SXV2#199704

46241BOOT, PARKING BRAKE LEVER

main46241-33040iMCV2#,SXV2#199704

46249SHIELD, PARKING BRAKE HOLE

main46249-32020iMCV2#,SXV2#199704

46252PAD, PARKING PEDAL

main46252-33010iMCV2#,SXV2#199704

46341EQUALIZER, PARKING BRAKE

main46341-33010iMCV2#,SXV2#199704

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-33090iMCV20,21,SXV20199704

main46410-33100iMCV25,SXV25199706

46410DPIN(FOR PARKING BRAKE FRONT CABLE)

main90249-10200iMCV2#,SXV2#199704

46414CLEVIS, PARKING CABLE

main46414-33010iMCV2#,SXV2#199704

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-33050iMCV20,21,SXV20199704

main46420-33070iMCV25,SXV25199706

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01663iMCV20,21,SXV20199704

main90949-01B26iMCV25,SXV25199706

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01B08iMCV20,21,SXV20199704

main90949-01B27iMCV25,SXV25199706

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01A66iMCV20,21,SXV20199704

main90949-01B28iMCV25,SXV25199706

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main90949-01664iMCV25,SXV25199706

main90949-01A67iMCV20,21,SXV20199704

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main90949-01A68iMCV2#,SXV2#199704

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-33050iMCV20,21,SXV20199704

main46430-33070iMCV25,SXV25199706

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-33010iMCV20,21,SXV20199704

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-33020iMCV2#,SXV2#199704

46451BRACKET, CABLE SUPPORT

main46451-33040iMCV2#,SXV2#199704

46458RETAINER, CABLE

main46458-28010iMCV20,21,SXV20199704

47149DAMPER, RETURN SPRING

main47149-22040iMCV2#,SXV2#199704

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906197

main90119-06197

9011906198

main90119-06198

9011906315

main90119-06315

9011908980

main90119-08980

9017906009

main90179-06009

9017908057

main90179-08057

9046806017

main90468-06017

9046808001

main90468-08001

9095001310

main90950-01310

9165140816

main91651-40816

9165160820

main91651-60820

9411051000

main94110-51000

9615001000

main96150-01000

38 parts on this diagram · 3 diagrams in section
