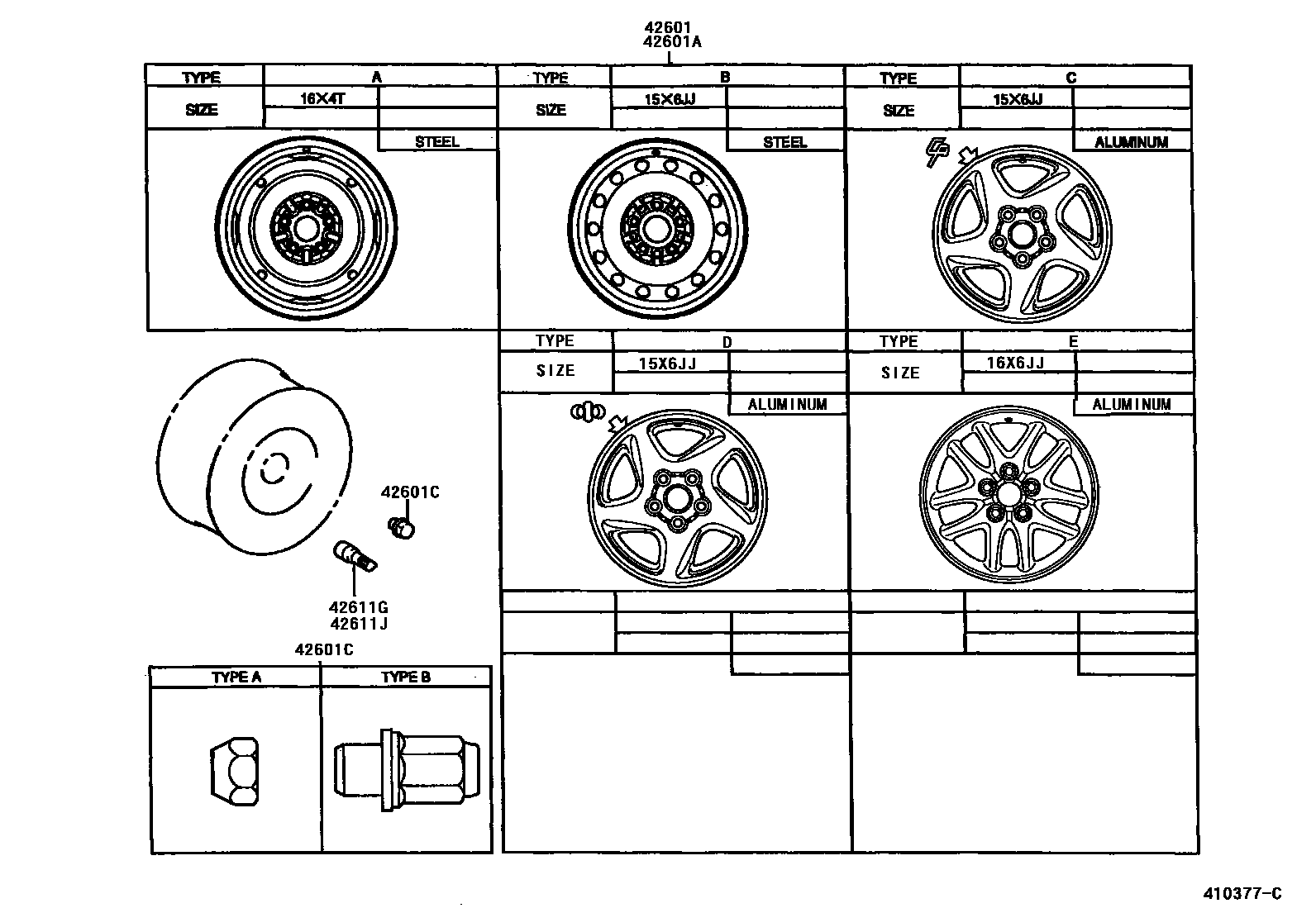

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-0W070×4iMCV2#,SXV2#199704

main42611-33010-01×4iMCV21,25,SXV2#199704

main42611-33190×4iMCV2#,SXV2#199807

main42611-33220×4iMCV21,25,SXV2#199908

42601AWHEEL, DISC (FOR SPARE)

main42611-0W070iMCV2#,SXV2#199704

main42611-28210iMCV2#,SXV2#199704

main42611-33010-01iMCV21,25,SXV2#199704

main42611-33190iMCV2#,SXV2#199807

main42611-33220iMCV21,25,SXV2#199908

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iMCV21,25,SXV2#199704

main90942-01058×20iMCV2#,SXV2#199704

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iMCV2#,SXV2#199704

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iMCV2#,SXV2#199704

5 parts on this diagram · 4 diagrams in section
