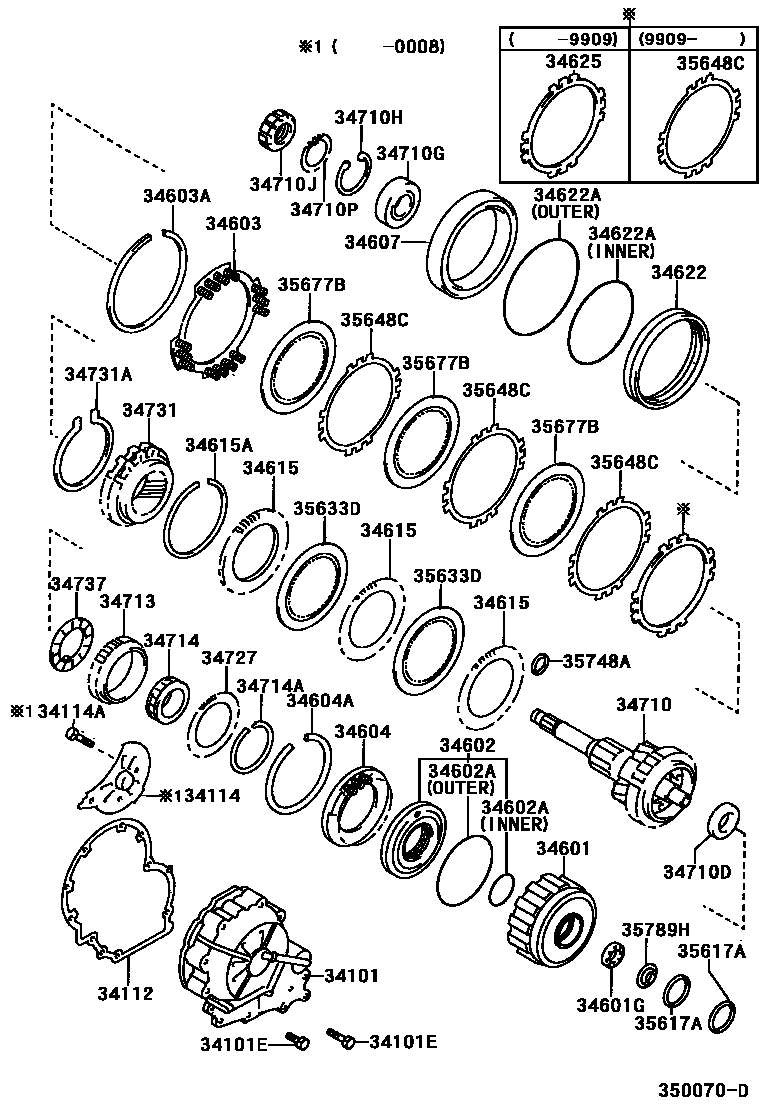

OVERDRIVE GEAR (ATM)

0001 1A541E,A541F 0003 1A140E 0004 1U140E

34101CASE SUB-ASSY, OVERDRIVE

main34101-33020iSXV20199704-200112

main34101-33071iMCV21,25,SXV25199908-200112

34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)

main90105-08050iSXV20199704-200112

main90105-08056×2iMCV21,25,SXV25199908-200112

main90105-08103×6iMCV21,25,SXV2#199908-200112

main90105-08167×4iMCV2#,SXV25199704-199908

main90105-08283×4iSXV20199704-200112

34112GASKET, OVERDRIVE CASE

main34112-33010iSXV20199704-200112

main34112-33021iMCV21,25,SXV25199908-200112

34114BAFFLE, OVERDRIVE CASE OIL

main34114-41010iMCV2#,SXV25199704-199908

34114ABOLT, W/WASHER

main91621-60614×3iMCV2#,SXV25199704-199908

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-20010iSXV20199704-200112

main34601-33010iMCV2#,SXV25199704-199908

34601GBEARING,THRUST NEEDLE ROLLER(FOR OVERDRIVE DIRECT CLUTCH)

main90374-28013iMCV2#,SXV2#199704-199908

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-20010iSXV20199704-200112

main34602-33010iMCV2#,SXV25199704-199908

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-57188iMCV2#,SXV2#199704-199908

main90301-99016iMCV2#,SXV2#199704-199908

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-20020iSXV20199704-200112

main34603-33010iMCV21,25,SXV25199908-199909

main34603-33050iMCV21,25,SXV25199909-200112

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

main90521-99050iMCV2#,SXV25199704-199908

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-20010iSXV20199704-200112

main34604-32010iMCV2#,SXV25199704-199908

34604ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH RETURN SPRING)

main90521-99051iSXV20199704-200112

main90521-99060iMCV21,25,SXV25199908-200112

34607DRUM SUB-ASSY, OVERDRIVE BRAKE

main34607-32010iMCV2#,SXV25199704-199908

main34607-32020iSXV20199704-200112

34615FLANGE, OVERDRIVE CLUTCH

main34615-20010×2iSXV20199704-200112

main34615-33010iMCV2#,SXV25199704-199908

main34615-33020iMCV2#,SXV25199704-199908

main34615-33030iMCV2#,SXV25199704-199908

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90520-99037iSXV20199704-200112

main90521-99058iMCV2#,SXV25199704-199908

34622PISTON, OVERDRIVE BRAKE

main34622-20020iSXV20199704-200112

main34622-33010iMCV2#,SXV25199704-199908

main34622-33050iMCV21,25,SXV25199909-200112

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99043iMCV2#,SXV2#199704-199908

main90301-99044iMCV21,25,SXV25199908-200112

main90301-99057iSXV20199704-200112

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-20010iSXV20199704-200112

main34625-32020iSXV20199704-200112

main34625-33010iMCV2#,SXV25199704-199908

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-20022iSXV20199704-200112

main34710-33011iMCV2#,SXV25199704-199908

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-39003iMCV21,25,SXV25199908

34710GBEARING, RADIAL BALL(FOR OVERDRIVE PLANETARY GEAR)

main90363-40024iSXV20199704-200112

main90363-40053iMCV2#,SXV25199704-199908

34710HRING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR BEARING)

main90521-76003iSXV20199704-200112

main90521-78003iMCV2#,SXV25199704-199908

34710JNUT(FOR OVERDRIVE PLANETARY GEAR)

main90179-40005iMCV2#,SXV2#199704-199908

34710PWASHER(FOR OVERDRIVE PLANETARY GEAR)

main90209-40001iMCV2#,SXV2#199704-199908

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-32010iMCV2#,SXV2#199704-199908

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main34714-32010iSXV20199704-200112

main34714-32021iMCV2#,SXV25199704-199908

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-93002iMCV2#,SXV2#199704-199908

34727PLATE, RETAINING (FOR OVERDRIVE)

main34727-32010iSXV20199704-200112

main34727-32020iMCV21,25,SXV25199908-200112

34731GEAR, OVERDRIVE PLANETARY RING

main34731-32010iSXV20199704-200112

main34731-33010iMCV2#,SXV25199704-199908

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99008iSXV20199704-200112

main90521-99059iMCV2#,SXV25199704-199908

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-20011iSXV20199704-200112

main34737-33010iMCV2#,SXV25199704-199908

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010×2iMCV2#,SXV2#199704-199908

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-20010×2iSXV20199704-200012

main35633-20011×2iSXV20200012-200112

main35633-33030×2iMCV21,25,SXV25199908-200112

35648CPLATE, CLUTCH (FOR OVERDRIVE BRAKE)

main35648-32040×2iSXV20199704-200112

main35648-33030×4iMCV21,25,SXV25199909-200112

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main35677-20030×2iSXV20199704-200112

main35677-33030×3iMCV2#,SXV25199704-199908

35748ARING, INTERMEDIATE SHAFT OIL SEAL (FOR OVERDRIVE)

main35748-32010iMCV2#,SXV2#199704-199908

35789HRACE, THRUST BEARING (FOR OVERDRIVE CASE)

main35789-20020iMCV2#,SXV2#199704-199908

38 parts on this diagram · 3 diagrams in section
