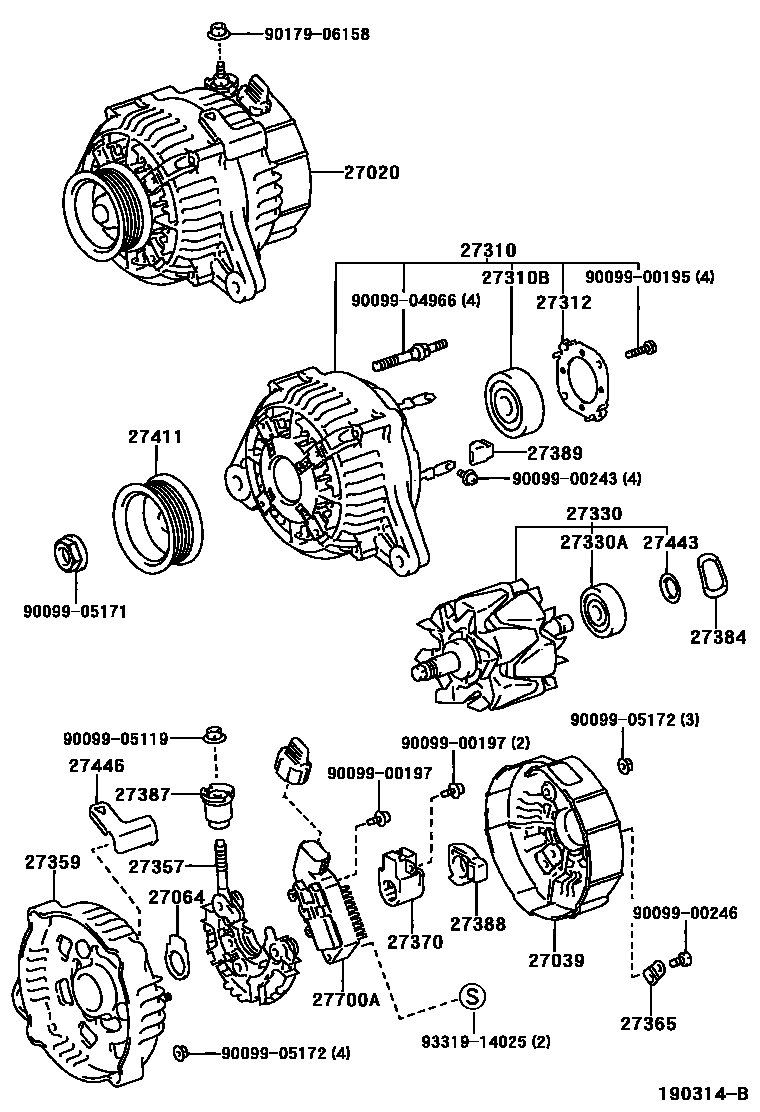

ALTERNATOR

0001 112V 100A 0002 112V 90A

27020ALTERNATOR ASSY

main27060-20090i1MZFE,2MZFE..MCV2#199704-199908

main27060-20140i1MZFE,2MZFE..MCV2#199908

main27060-74690i5SFE..SXV2#199704

27039COVER, ALTERNATOR REAR END

main27039-20060i1MZFE,2MZFE..MCV2#199704-200104

main27039-20160i1MZFE,2MZFE..MCV2#200104

main27039-55080i5SFE..SXV2#199704-200104

sub27039-70470

main27039-70470i5SFE..SXV2#200104

27064SEAL, ALTERNATOR PLATE

main27064-42010i1MZFE,2MZFE,5SFE..MCV2#,SXV2#199704

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-20060i1MZFE,2MZFE..MCV2#199704-199908

main27310-20080i1MZFE,2MZFE..MCV2#199908

main27310-74490i5SFE..SXV2#199704

sub27310-70440

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10192i1MZFE,2MZFE,5SFE..MCV2#,SXV2#199704

27312PLATE, RETAINER

main27312-42010i1MZFE,2MZFE,5SFE..MCV2#,SXV2#199704

27330ROTOR ASSY, ALTERNATOR

main27330-20070i1MZFE,2MZFE..MCV2#199704

main27330-74550i5SFE..SXV2#199704

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i1MZFE,2MZFE,5SFE..MCV2#,SXV2#199704

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16310i5SFE..SXV2#199704

main27357-20060i1MZFE,2MZFE..MCV2#199704

27359FRAME, ALTERNATOR RECTIFIER END

main27359-20060i1MZFE,2MZFE..MCV2#199704-199908

main27359-20080i1MZFE,2MZFE..MCV2#199908

main27359-74550i5SFE..SXV2#199704

sub27359-70440

27365PLATE, TERMINAL

main27365-55080i1MZFE,2MZFE,5SFE..MCV2#,SXV2#199704

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i1MZFE,2MZFE,5SFE..MCV2#,SXV2#199704

27384WASHER

main27384-50030i1MZFE,2MZFE,5SFE..MCV2#,SXV2#199704

27387INSULATOR, TERMINAL

main27387-42020i1MZFE,2MZFE,5SFE..MCV2#,SXV2#199704-199708

main27387-42021i1MZFE,2MZFE,5SFE..MCV2#,SXV2#199708

27388COVER, ALTERNATOR BRUSH

main27388-42010i1MZFE,2MZFE,5SFE..MCV2#,SXV2#199704

27389INSULATOR, TERMINAL

main27389-42010i1MZFE,2MZFE,5SFE..MCV2#,SXV2#199704

27411PULLEY, ALTERNATOR

main27411-20020i1MZFE,2MZFE..MCV2#199704-199908

main27411-42030i5SFE..SXV2#199704

main27411-46080i1MZFE,2MZFE..MCV2#199908

27443COVER, ALTERNATOR BEARING

main27443-63020i1MZFE,2MZFE,5SFE..MCV2#,SXV2#199704

27446CLIP, ALTERNATOR CORD

main27446-20050i1MZFE,2MZFE..MCV2#199704

main27446-74370i5SFE..SXV2#199704

27700AREGULATOR ASSY, GENERATOR

main27700-20050i1MZFE,2MZFE..MCV2#199704

main27700-74030i5SFE..SXV2#199704

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9017906158

main90179-06158

9331914025

main93319-14025

30 parts on this diagram · 2 diagrams in section
