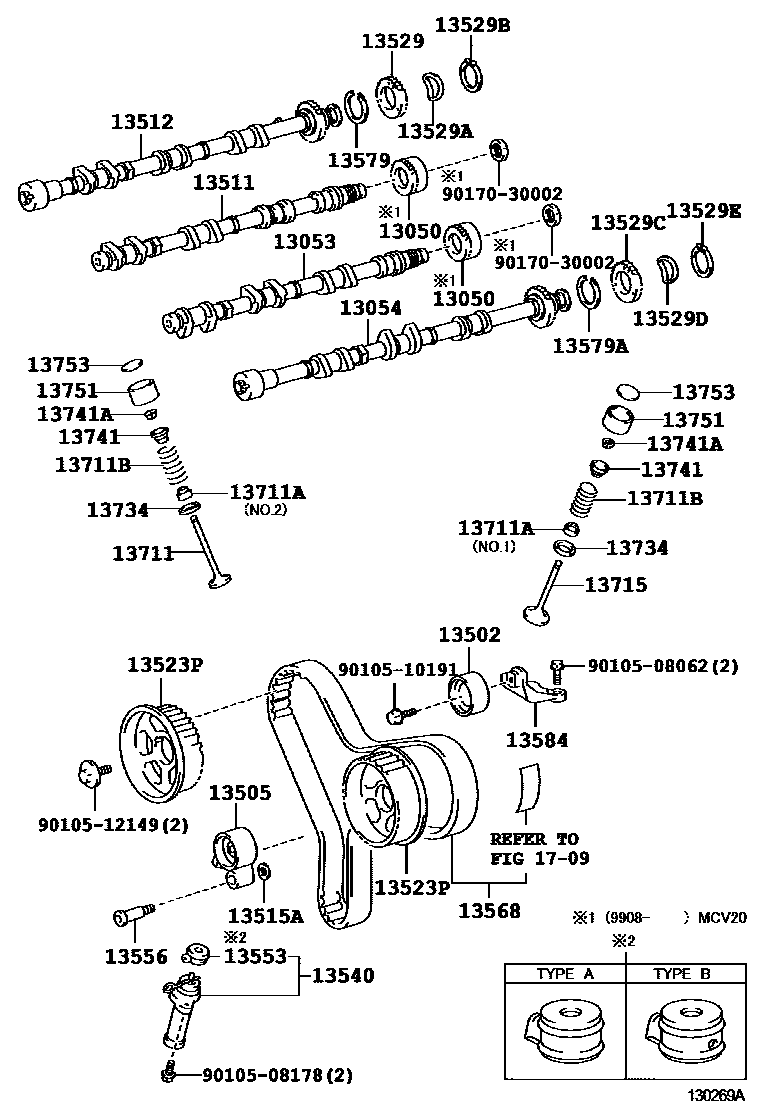

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
sub13050-20011
13053CAMSHAFT SUB-ASSY, NO.3
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13511CAMSHAFT
13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)
13523PPULLEY, CAMSHAFT TIMING
13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
13529CGEAR, CAMSHAFT SUB, NO.3
13529DWASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3)
13529ERING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3)
13553COVER, CHAIN TENSIONER DUST
13556SHAFT, TIMING BELT IDLER
13579AWASHER, CAMSHAFT TIMING GEAR BOLT, NO.3
sub13579-50020
13584BRACKET, TIMING BELT IDLER
13711BSPRING, COMPRESSION(FOR INNER)
13734SEAT, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
1709
9010508062
main90105-08062
9010508178
main90105-08178
9010510191
main90105-10191
9010512149
main90105-12149
9017030002
main90170-30002
37 parts on this diagram · 2 diagrams in section
