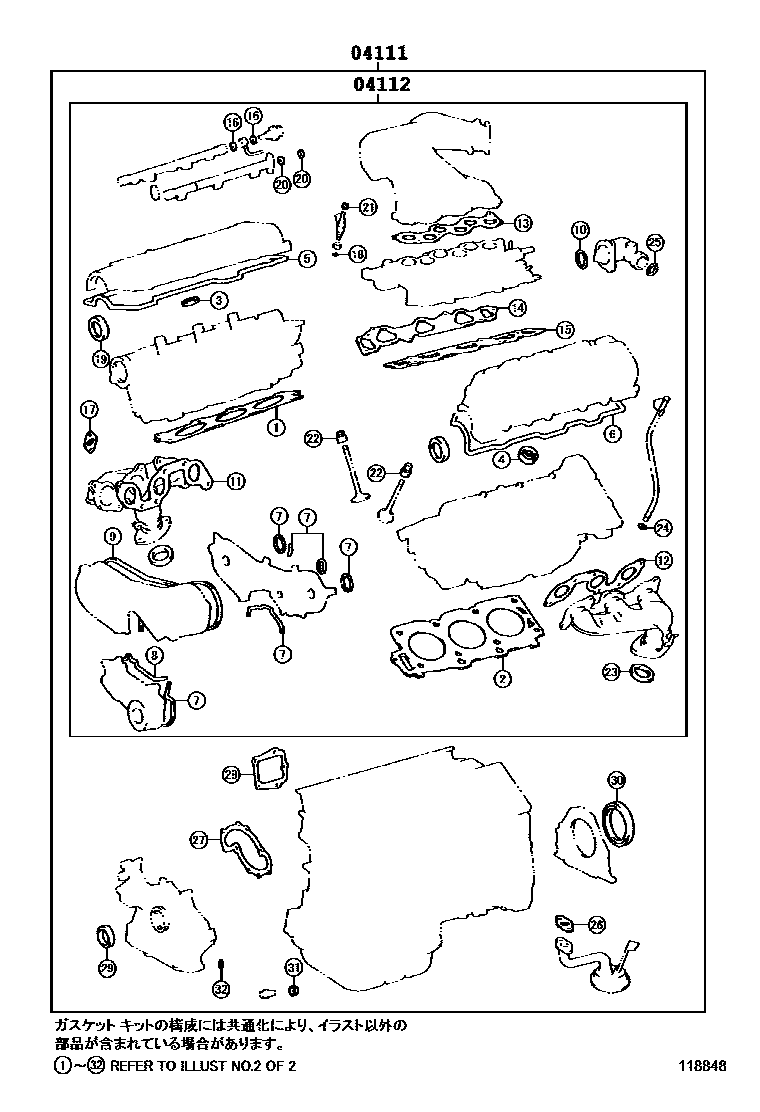

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-20040i1MZFE,2MZFE..MCV2#199704-199710

main04111-20041i1MZFE,2MZFE..MCV2#199710-199908

main04111-20042i2MZFE..MCV21,25200001

main04111-20110i1MZFE..MCV20199908

main04111-74641i5SFE..SXV2#199704

04112GASKET KIT, ENGINE VALVE GRIND

main04112-20030i1MZFE,2MZFE..MCV2#199704-199710

main04112-20031i1MZFE,2MZFE..MCV2#199710-199908

main04112-20032i2MZFE..MCV21,25200001

main04112-20100i1MZFE..MCV20199908

main04112-74581i5SFE..SXV2#199704

2 parts on this diagram · 4 diagrams in section
