SHORT BLOCK ASSEMBLY

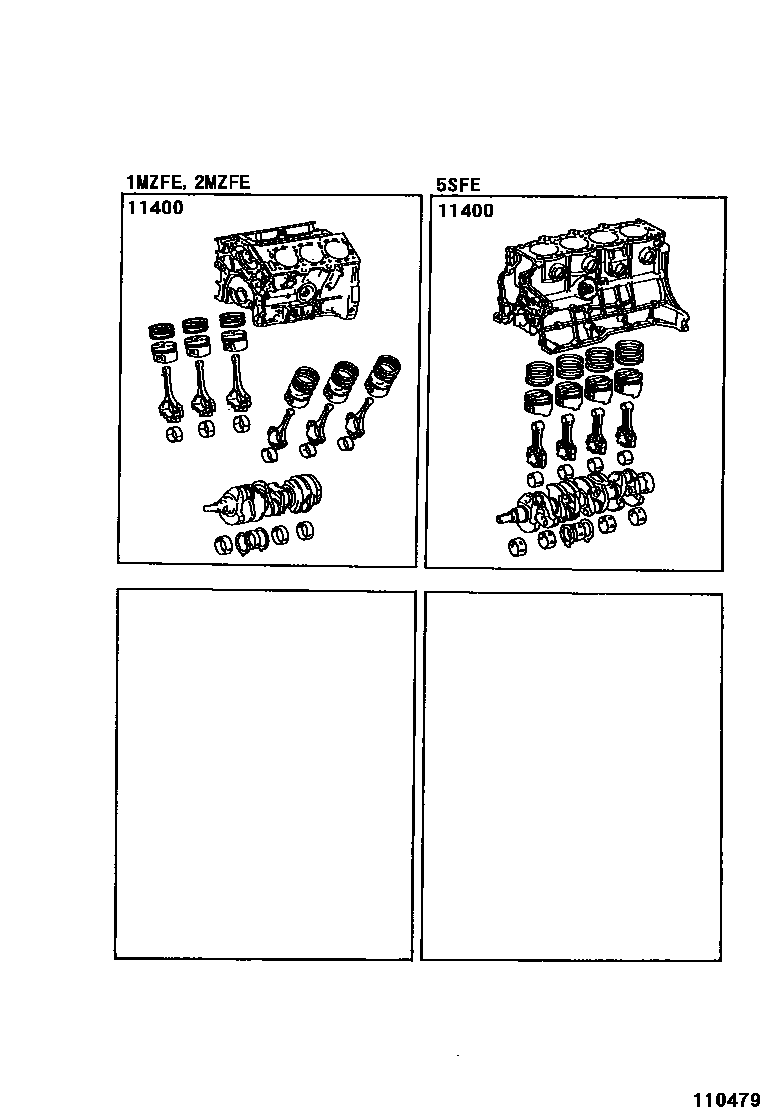

Parts diagram

11400BLOCK ASSY, SHORT

main11400-20010i199704-199710

main11400-20011i199710-199903

main11400-20012i199903-199908

main11400-20030i199704-199903

main11400-20031i199903

main11400-20040i199706-199903

main11400-20041i199903

main11400-20051i199908

main11400-74390i199704-199706

main11400-74391i199706

1 parts on this diagram · 1 diagram in section
