STANDARD TOOL

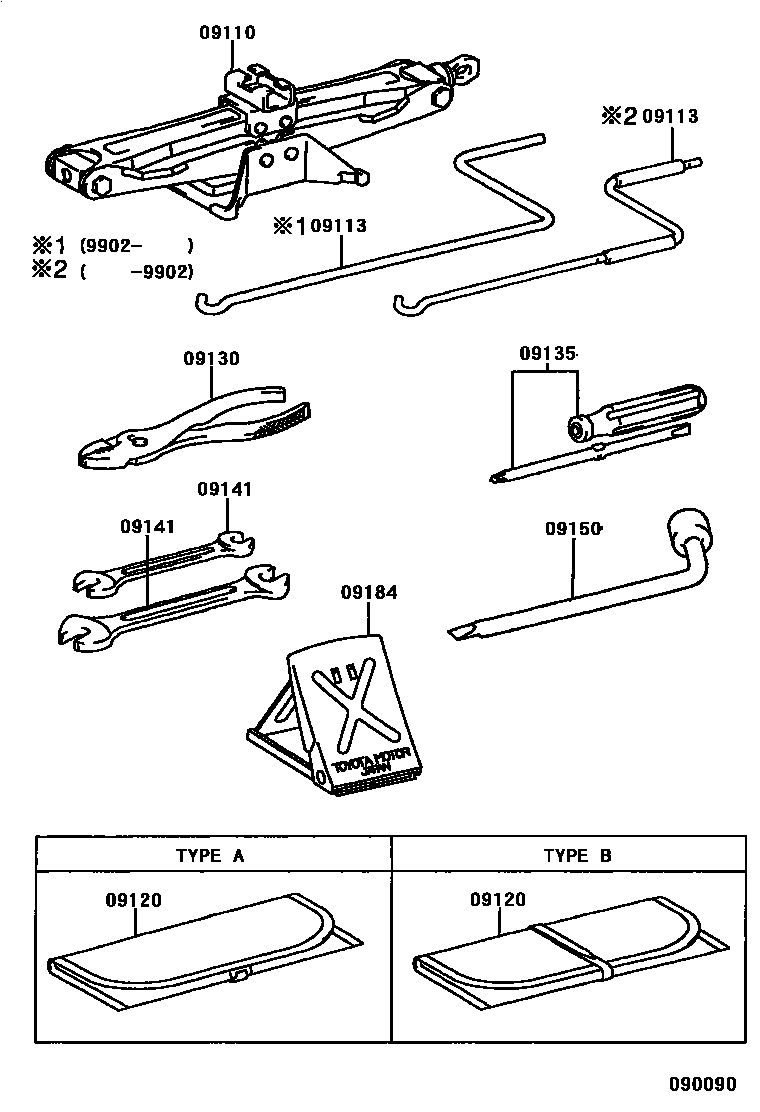

Parts diagram

09110JACK ASSY

main09111-0W041i199805

main09111-22060i199804-199805

09113HANDLE, JACK

main09113-13040i199902

main09113-22020i199704-199902

09120BAG, TOOL

main09120-10030i199704-199908

main09120-16030i199704

09130PLIERS

main99913-11500i199704

09135DRIVER, SCREW

main99915-10700i199704

09141SPANNER

main99914-10810i199704

main99914-11214i199704

09150WRENCH, HUB NUT BOX

main09150-40010i199704

09184STOPPER, WHEEL

main09184-00010i199704

8 parts on this diagram · 1 diagram in section
