WINDSHIELD WIPER

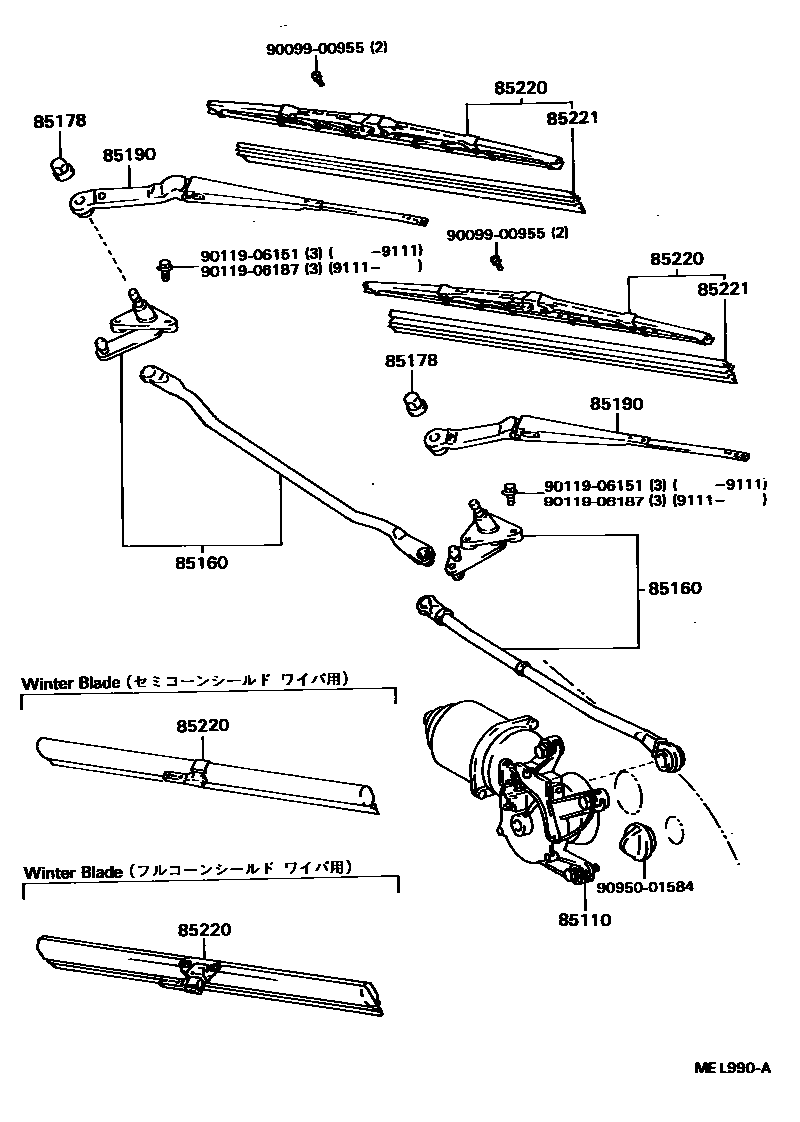

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-22402i198810-199302
main85110-23030i199302-199704
main85110-91602i198812-199302
85160LINK ASSY, WINDSHIELD WIPER
main85150-23030i199302-199704
main85150-23040i199302-199704
main85160-22210i198812-199302
main85160-22220i198812-199302
main85160-22241i198810-199302
main85160-22250i198810-199302
main85160-22361i198810-199302
main85160-22371i198810-199302
85178NUT (FOR FRONT WIPER ARM SETTING)
main90176-08040×2i198810-199704
85190ARM ASSY, WINDSHIELD WIPER
main85190-22481i198810-198901
main85190-22502i198810-199008
main85190-91610i199009-199302
main85190-91611i198810-199008
main85210-22171i198810-198901
main85210-22182i198810-199008
main85210-91602i198901-199008
main85210-91603i198810-199008
main85211-23010i199008-199302
main85211-23020i199008-199302
main85211-23040i199008-199302
main85211-23080i199302-199704
main85221-23020i199008-199302
main85221-23030i199302-199704
main85221-23050i199008-199302
85220BLADE ASSY, WINDSHIELD WIPER
main85212-23010i199008-199302
main85212-23020i199008-199302
main85212-23040i199008-199302
main85212-30241i199302-199704
main85220-12620i198810-199003
main85220-16580i198810-199003
main85220-1A040i199008-199302
main85220-1A070i198810-199008
main85220-1A080i198812-199008
main85220-3A070i198810-199008
main85220-3A080i198812-199008
main85222-23030i199008-199302
main85222-23040i199008-199302
main85222-23060i199008-199302
main85222-23070i199302-199704
main85291-12010i199003-199008
main85291-16010i199003-199008
main85291-23010i199008-199302
main85291-30020i199302-199704
main85291-30030i199302-199704
85221BLADE, WINDSHIELD WIPER
main85213-30250i199302-199502
main85221-22110i198810-199302
main85221-22120i198810-199302
main85223-20310i199302-199502
9009900955
main90099-00955
9011906151
main90119-06151
9011906187
main90119-06187
9095001584
main90950-01584

10 parts on this diagram · 2 diagrams in section
