METER

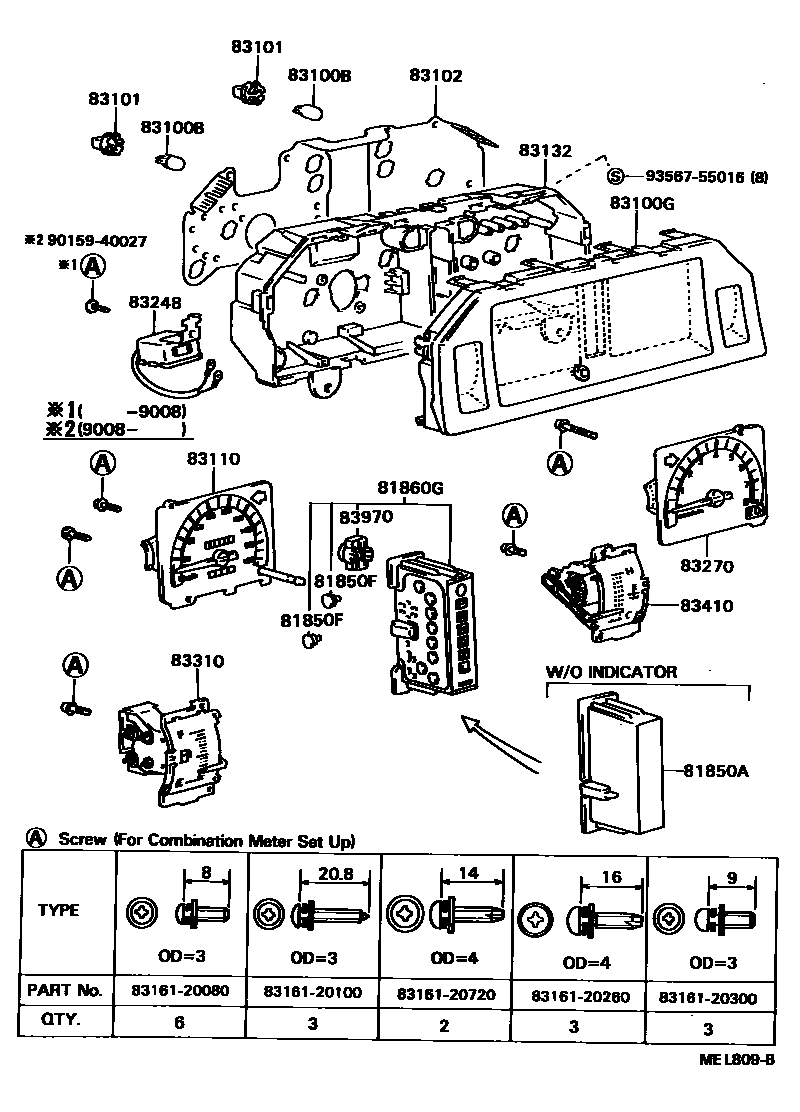

Parts diagram

81850ALAMP ASSY, INDICATOR

main81850-22111i199008-199704

81850FBULB, INDICATOR LAMP

main84999-50180×7i198810-199704

main84999-50190i198810-199704

81860GLAMP ASSY, TRANSMISSION INDICATOR

main81860-22060i198810-199704

main81860-22080i198812-199704

83100BBULB, COMBINATION METER, NO.1

main99132-12034×8i199008-199704

83100GGLASS, COMBINATION METER

main83134-2A360i198812-199409

main83134-2A440i198810-199704

main83134-2A460i198812-199704

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-20040×8i198810-199008

BULB:12V 3.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-22640i198810-199704

main83247-22680i198812-199704

83110SPEEDOMETER ASSY

main83110-2A111i198812-199208

main83110-2A112i199208-199409

main83110-2A401i198812-199208

main83110-2A402×4i199208-199302

main83110-2A403i199302-199704

main83110-2A430i198810-199208

main83110-2A431i199208-199704

83132CASE, COMBINATION METER

main83132-22260i198810-199704

main83132-2A120i198812-199704

83248CHIME, SPEED WARNING

main86640-22080i198810-199704

83270TACHOMETER ASSY, ENGINE

main83242-2A320i198810-199704

83310GAGE ASSY, FUEL RECEIVER

main83243-22360i198810-199704

main83243-22380i198812-199704

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-22240i198810-199704

83970BUZZER ASSY, REVERSE WARNING

main83970-20010i198810-199008

main83970-22010i199008-199704

8316120080CASE, COMBINATION METER MIRROR, NO.1

main83161-20080

8316120100CASE, COMBINATION METER MIRROR, NO.1

main83161-20100

8316120260CASE, COMBINATION METER MIRROR, NO.1

main83161-20260

8316120300CASE, COMBINATION METER MIRROR, NO.1

main83161-20300

8316120720CASE, COMBINATION METER MIRROR, NO.1

main83161-20720

9015940027

main90159-40027

9356755016

main93567-55016

21 parts on this diagram · 4 diagrams in section
